1000T Cold and Hot Press with 3700mm x 1300mm Plate Size and Thermal Oil Heat Transfer for Sandwich Panel Production

1000T Cold and Hot Press with 3700mm x 1300mm Plate Size and Thermal Oil Heat Transfer for Sandwich Panel Production

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Method:

Press Up And Down

Maximum Pressure:

1000 T

Hot Press Plate Size:

3700mm X 1300mm

Plate Thickness:

42mm X 2 Pcs

Number Of Layers:

1-layer

Opening Spacing:

0-200mm

Motor Power Of Hydraulic System:

11KW

Heating Cycle Motor:

3KW High-temperature Pump

Conveyor Reducer:

0.75KW

Oil Cylinder Specification:

10pcs*220mmX200mm Plunger Cylinders+2 Lifting Cylinders

Heating Method:

Thermal Oil Heat Transfer

Maximum Temperature:

180℃

Outline Dimensions Of Hot Press:

3700mm * 2100mm

Packaging Details:

Film with Foam

Highlight:

1000T Maximum Pressure Plywood Press Machine

Thermal Oil Heat Transfer Wood Veneer Press Machine

Three-Dimensional Pressing Melamine MDF Board Production Line

Product Description

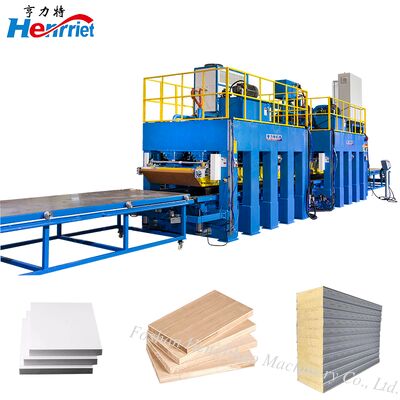

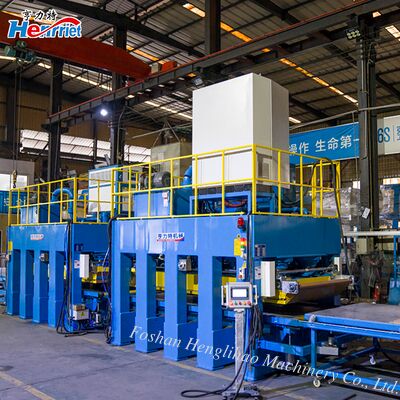

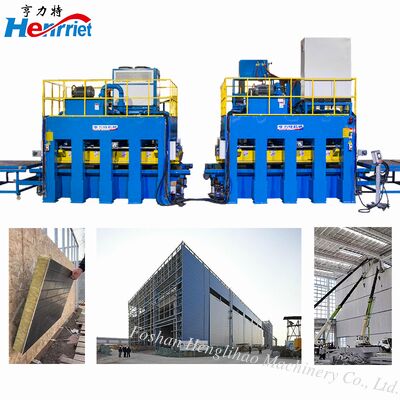

1000T Cold and Hot Press Automatic Conveying Production Line

Product Overview

Our thousand-ton level hot and cold press automatic conveyor line is an industrial system that integrates heavy-duty hot pressing, precision cold forming, and fully automatic conveying. Featuring advanced segmented temperature and pressure control technology, built-in PLC intelligent control system, and high-precision hydraulic transmission, it completes closed-loop operations from raw material feeding to intelligent discharge without manual intervention.

Key Features

Superior Production Capacity: Synchronized thermal processing cycle with automatic transition from high-temperature bonding to cold-forming module for rapid stabilization. Dual-phase design enables simultaneous processing across dedicated stations, accelerating cycle times while ensuring flawless surface integrity.
Integrated Safety and Protection: Four-tier safety protocols including mechanical redundancy, thermal safeguards, electrical resilience, and motion control with multi-stage position verification.
Wide-Ranging Application Versatility: Suitable for sandwich metal panels, foam glass panels, rock wool composite boards, roof & cold storage panels, and cleanroom & metal foam panels.
Easy Maintenance and Technical Support: Comprehensive maintenance protocols for surface care, thermal system calibration, electrical integrity checks, and conveyor health.

Technical Specifications

Pressure Method	Press up and down
Maximum Pressure	1000 T
Hot Press Plate Size	3700mm x 1300mm
Plate Thickness	42mm x 2 pcs
Number of Layers	1-layer
Opening Spacing	0-200mm
Motor Power of Hydraulic System	11KW
Heating Cycle Motor	3KW high-temperature pump
Conveyor Reducer	0.75KW
Oil Cylinder Specification	10pcs*220mmX200mm plunger cylinders + 2 lifting cylinders
Heating Method	Thermal oil heat transfer
Maximum Temperature	180℃
Outline Dimensions of Hot Press	3700mm * 2100mm

Competitive Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups
30+ Senior Engineers: Custom-built solutions designed around your production needs, floor space, and budget
CE & ISO 9001 Certified: Global-ready equipment meeting international electrical, mechanical, and safety regulations
50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use
