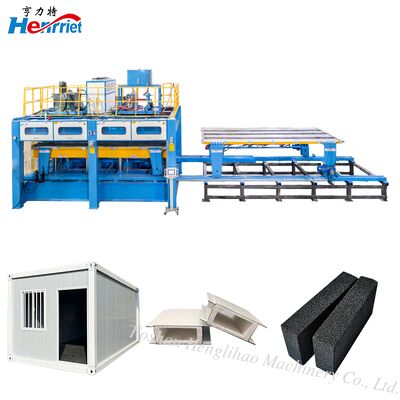

250T Maximum Pressure Dual Station Hot Press Machine with 4560mmX2160mm Workbench and PLC Touch Screen Control

250T Maximum Pressure Dual Station Hot Press Machine with 4560mmX2160mm Workbench and PLC Touch Screen Control

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

940mm

Workbench Dimensions:

250 T

Mobile Carrier Template Size:

4560mmX2160mm*1 Pcs

Actual Composite Size:

4560mm*2160mm*2pcs

Plate Thickness:

4360mm*2060mm

Spacing:

1-layer

Maximum Pressure Push Down And Up Workbench Dimensions 250 T Mobile Carrier Template Size 4560mmX216:

100mm

Motor Power Of Hydraulic System:

3kw

Oil Cylinder Specification:

7.5kw

Heating System Power:

8pcs*150mm

Power For Entering And Exiting The movable Sliding Platform:

72KW

Cooling Method:

2.2KW*4pcs

Control System:

6-power Refrigeration Unit

Maximum Temperature:

PLC+touch Screen

Total Power:

80℃

Height Of The Movable Workbench Above the Ground:

73.3KW

Packaging Details:

Film with Foam

Highlight:

Dual Station Hot Press Machine

Movable Slide Wood Veneer Press Machine

940mm Maximum Pressure Dual Station Hot Press

Product Description

250T Efficient Dual Station Movable Slide Rail for Sandwich Clean Room Board and Container Room Board Compression

This advanced compression equipment features dual-station movable slide rail technology designed for high-efficiency production of sandwich panels. The system ensures precise temperature and pressure control for various industrial applications including clean room panels, container panels, and building insulation boards.

Key Applications

Building Insulation Panels: Ensures excellent thermal insulation for curtain wall systems and roof insulation projects with precise pressure distribution.

Cleanroom Panels: Utilizes ultra-precise temperature and pressure closed-loop control technology to guarantee high flatness and sterile performance for electronic manufacturing, photovoltaic production, and pharmaceutical processing.

Container Panels: Dual-station design facilitates convenient material handling and precise positioning for large-size panels, preventing deformation under high-pressure pressing while meeting structural strength and safety standards.

Maintenance & Technical Support

Pre-operation Inspection: Thorough cleaning of sliding tracks, rollers, and pressing plate surfaces to ensure smooth movement and efficient heat transfer
Mechanical Lubrication: Regular application of high-performance lubricating grease to sliding rails, transmission chains, and rotating bearings to reduce friction and extend service life
Hydraulic System Monitoring: Maintain hydraulic oil purity through regular filtering and contamination detection to prevent system blockage
Sensor Calibration: Regular verification of travel limit switches and proximity sensors to ensure operational precision and safety

Technical Specifications

Parameter	Specification
Maximum Pressure	250 T (Push down and up)
Workbench Dimensions	4560mm × 2160mm × 1 pc
Mobile Carrier Template Size	4560mm × 2160mm × 2 pcs
Actual Composite Size	4360mm × 2060mm
Plate Thickness	Fixed workbench: 50mm × 1 piece Mobile loading template: 70mm × 2 pieces
Number of Layers	1-layer
Spacing	100mm
Heating Cycle Motor Power	3kw
Motor Power of Hydraulic System	7.5kw
Oil Cylinder Specification	8 pcs × 150mm
Heating System Power	72KW
Power for Movable Sliding Platform	2.2KW × 4 pcs
Cooling Method	6-power refrigeration unit
Control System	PLC + touch screen
Maximum Temperature	80℃
Total Power	73.3KW
Height of Movable Workbench	940mm above ground

Company Advantages

Direct Manufacturing: Two in-house factories ensure better prices and faster delivery with no middlemen or markups.

Custom Engineering: 30+ senior engineers design machines around your production needs, floor space, and budget.

Global Certification: CE & ISO 9001 certified machines meet international electrical, mechanical, and safety regulations.

Proven Experience: 50+ countries, 1000+ projects with equipment engineered for long-term, heavy-duty use.

Service & Support

Warranty: 1 year comprehensive coverage
Packaging: Protective film with foam insulation
24-hour customer service hotline with 48-hour response for repair needs
Free video training for operators with comprehensive process guidance manuals
Lifetime technical support and software upgrade services
