| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Description

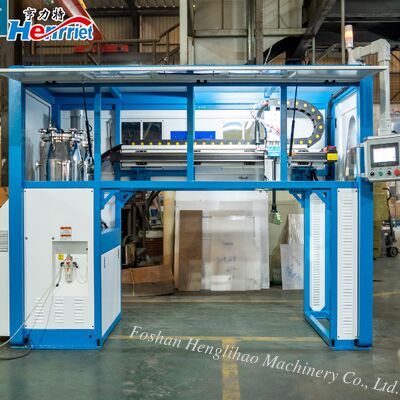

This advanced integrated adhesive application system unifies high-precision coating with intelligent material flow into a single, fluid production ecosystem. Its architecture merges a dynamic adhesive applicator, a servo-driven conveyor pathway, a viscosity-adaptive dispensing network, a self-cleaning module, and an AI-enhanced control interface. Operating under a continuous "input-conveying-coating-output" workflow, the system eliminates manual handling through synchronized motion—where the adhesive applicator, mounted on a precision-engineered frame, employs a bevel gear and crank-rod mechanism to generate a uniform, uninterrupted adhesive curtain across panel surfaces. The adhesive delivery system utilizes high-viscosity pumps compatible with polyurethane and epoxy formulations, while the entire unit leverages a PLC-based touch interface for intuitive parameter management: adjustable coating width, flow rate, and coverage density—all optimized for consistent, waste-free application. A dedicated adhesive chamber, water-spray cleaning station, and automated positioning system further prevent clogging, solving a chronic pain point in legacy coating systems.
Feature
1,Superior production capacity
By replacing fragmented manual processes with continuous automation, this line slashes cycle times while eliminating labor-intensive handling. The servo-driven conveyor transports panels through the adhesive curtain at precisely controlled speeds, ensuring full surface coverage without human intervention. This not only eradicates physical strain and recruitment challenges in manufacturing but also guarantees uniform adhesive distribution—critical for high-end applications where surface imperfections compromise aesthetics and durability.
2,Integrated Safety and Protection
Prioritizing operator well-being and equipment integrity, the system embeds proactive safeguards:
Emergency response: Strategically placed red mushroom-shaped stop buttons halt operations instantly at any access point.
Material security: Conveyor belts feature non-slip elastomeric surfaces to stabilize delicate substrates during transit.
System intelligence: The PLC continuously monitors motion, pressure, and adhesive flow, triggering automatic shutdowns during anomalies.
3,Wide-Ranging Application Versatility
This ecosystem excels in demanding scenarios:

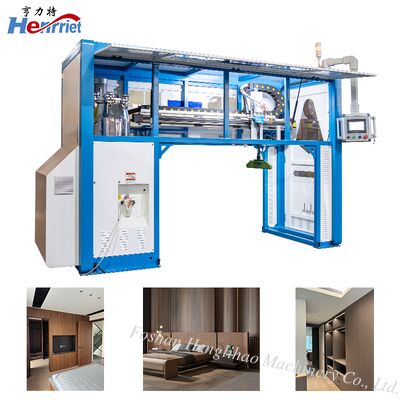

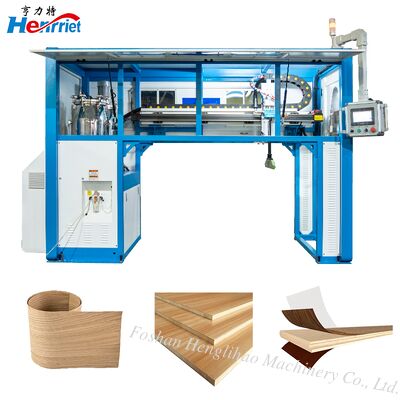

Custom interior solutions: Perfectly bonds solid wood veneers and technology wood to substrates like MDF and particleboard for wardrobes, cabinets, and luxury interior panels—delivering unblemished finishes without glue seepage or surface marks.
Functional panel production: Enables seamless application of fire-resistant, antibacterial, and sound-dampening coatings on substrates for medical facilities, tech hubs, and high-end residential projects.
High-gloss decorative surfaces: Processes hotel lobbies, retail displays, and bespoke wall systems with flawless, adhesive-free finishes that maintain vibrant color integrity.
4,Easy maintenance and technical support
Long-term reliability hinges on intuitive upkeep:
Tool-free modular design: Critical components like the adhesive nozzle, guide rails, and filtration screens disassemble in minutes—reducing maintenance downtime during adhesive transitions.
Post-operation protocol: A single command initiates automated pipeline flushing with cleaning solution, preventing adhesive crystallization.
System vigilance: Daily checks verify electrical connections, nozzle integrity, and hose condition; debris clearance ensures a 1.5-meter operational safety perimeter.
Specification
| Gel Dripping Width | 300-1300mm (customizable) |
| Coating Speed | 1-12 meters/minute (adjustable) |
| Adapt to the length range of the adhesive coating board | 500mm-6000mm (customizable) |
| Adapt to the width range of the glue coated board | 300mm-1300mm (customizable) |
| The glue spraying machine is suitable for the type of glue spraying plate | Rectangular or square (customizable) |
| Proportional adjustment | The mechanical gear ratio and mixing ratio can be adjusted freely on the touch screen between 2:1-5:1. The adhesive amount per square meter can be adjusted from 100g to 400g, and the ratio accuracy is ± 2% |
| AB bucket effective volume | 40L (automatic feeding) |
| Temperature Adjustment Range of Material A Tank | 20-30 ℃ (adjustable) |
| Adhesive Viscosity | 4000-8000CPS (customizable) |
| Power | 5.75kw |
| Control Method | PLC programming+touch screen |

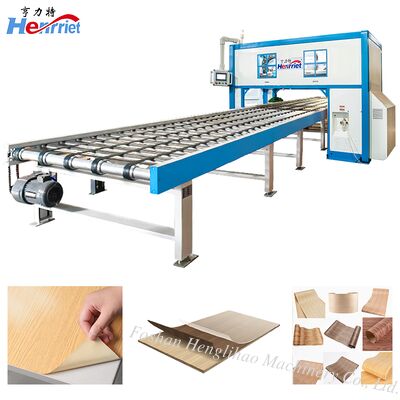

| Specification of drum conveyor frame | 12000mm*1300mm, 850mm high (customizable) |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
Service Support
Scope of Application
A
Product Display
Production workshop actual shooting
Product details
Company Introduction
Corporate Advantages
Visitors and Communication
Production level and manufacturing process
Exhibition and Exchange
Packaging and Logistics
Certificates and Honors
Address
No. 3-9 Xingye Middle Road, Changjiao Community, Lunjiao Street, Shunde District, Foshan City, Guangdong Province, China
Tel
86-180-2934-5363
