| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Description

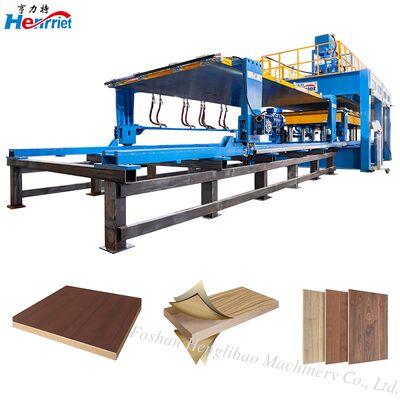

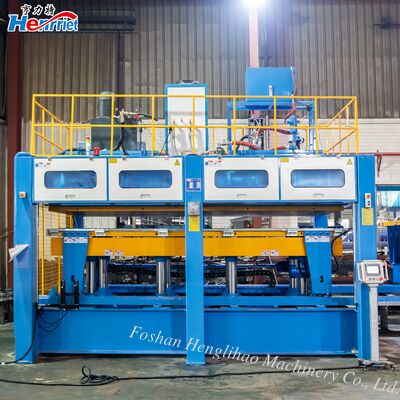

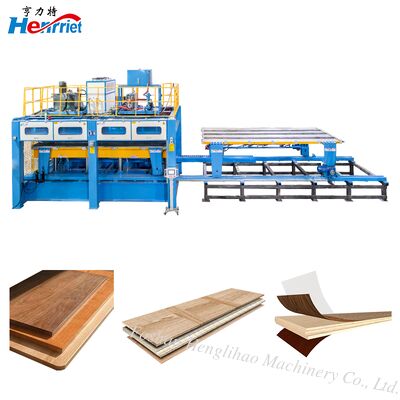

This advanced hot press system merges the core hot press unit with a dual-station slide table conveyor, creating a seamless workflow for high-efficiency manufacturing. Its architecture integrates a precision-engineered hot press frame, dual dynamic slide tables, a synchronized conveyor network, hydraulic elevation modules, and a centralized control system. The dual-zone design divides operations into three distinct phases: primary material preparation, secondary material staging, and active pressing zones. Operators load/unload materials at one station while the other undergoes thermal compression, enabling uninterrupted "load-press" cycles. Once pressing completes, the slide table automatically transitions, eliminating idle time inherent in single-station systems.
Feature
1,Superior production capacity
The system’s breakthrough lies in its dual-station alternating workflow, where slide tables glide effortlessly between preparation and pressing zones with minimal transition latency. Coupled with an automated conveyor framework, this enables full automation—from panel feeding and alignment to curing and discharge. Tight process synchronization slashes production cycles, transforming batch processing into a streamlined, non-stop operation.
2,Integrated Safety and Protection
Engineered for high-temperature, high-pressure environments with dual-station dynamics, the system integrates:
3,Wide-Ranging Application Versatility
This system excels in producing premium wood veneer panels:
Solid wood lamination on MDF: Achieves flawless bonding of natural veneers to medium-density substrates, enhancing aesthetic value for luxury furniture and architectural interiors.
Customized batch flexibility: The dual-station independent operation adapts to small-batch, high-complexity orders—such as bespoke cabinetry, artistic millwork, or cultural heritage projects—while maintaining precise temperature/pressure control to preserve natural grain textures.
4,Easy maintenance and technical support
Pre-operation checks: Clean slide tracks, rollers, and platen surfaces of debris or adhesive residue to ensure smooth motion and thermal efficiency.
Mechanical lubrication: Apply specialized grease to rails, chains, and bearings to reduce friction and wear.
Hydraulic health monitoring: Maintain oil purity through regular filtration and contamination testing to prevent system degradation.
Sensor calibration: Verify positional accuracy of limit switches and proximity sensors to uphold operational precision.
Specification
| Maximum pressure | Push down and up |
| Workbench dimensions | 250 T |
| Mobile carrier template size | 4560mmX2160mm*1 pcs |
| Actual composite size | 4560mm*2160mm*2pcs |
| Plate thickness | 4360mm*2060mm |
| Number of layers |
Fixed workbench: 50mm x 1 piece Mobile loading template: 70mm x 2 pieces |
| Spacing | 1-layer |
| Heating cycle motor power | 100mm |
| Motor power of hydraulic system | 3kw |
| Oil cylinder specification | 7.5kw |
| Heating system power | 8pcs*150mm |
| Power for entering and exiting the movable sliding platform |
72KW |
| Cooling method | 2.2KW*4pcs |
| Control system | 6-power refrigeration unit |
| Maximum temperature | PLC+touch screen |
| Total power | 80℃ |
| Height of the movable workbench above the ground |
73.3KW |
| Maximum pressure | 940mm |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
