Description

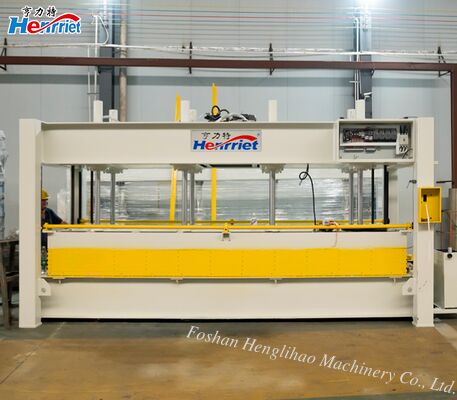

The multi-layer hot press machine is a heavy-duty production solution engineered exclusively for metal-clad and composite architectural panels, including but not limited to aluminum-plastic laminates, fire-rated aluminum honeycomb panels, and corrugated composite panels. The entire unit features an innovative three-dimensional stacked configuration paired with independent temperature-regulated pressing technology, with its core structure integrating vertically aligned hydraulic-driven pressing assemblies and zoned thermal oil circulation heating systems.
Feature
1,Superior production capacity
Its high-precision thermal regulation system facilitates accelerated adhesive curing while ensuring consistent pressure distribution across the entire working surface, enabling premium-quality, high-efficiency production workflows. Even in high-volume production environments, the equipment seamlessly handles a diverse range of pressing operations, from wooden and medical-grade doors, plywood, and multi-layer composite panels to hand-crafted cleanroom panels, sandwich-structured composite boards, and integrated roof panels. This robust capability drastically cuts per-unit manufacturing expenses while significantly boosting on-time order fulfillment rates for production facilities.
2,Integrated Safety and Protection
The intuitive operation interface is equipped with an emergency stop actuator, which delivers single-touch emergency braking during unforeseen or hazardous circumstances, maximizing protection for on-site personnel and preserving the integrity of the equipment. A cable-operated emergency shutdown system is additionally installed along all high-risk zones of the machinery. This redundant safety feature allows operators to trigger an immediate halt to all operations from any position along the machine body, simply by pulling the dedicated safety cable routed along the equipment frame. Should the pressure plate travel exceed pre-programmed electronic limits, an over-travel automatic protection mechanism activates instantaneously, bringing the equipment to an immediate stop and disabling the entire heating system of the machine to prevent potential mechanical failure or safety incidents.
3,Wide-Ranging Application Versatility
This multi-layer hot press solution, with its high-efficiency stacked design, uniform heating capabilities, and precision pressure modulation, delivers exceptional versatility across the secondary processing of wood-based panels and decorative veneer lamination applications. For wood-imitation decorative panel production, the equipment is optimized for the lamination of a wide variety of wood-grain decorative papers and melamine-impregnated papers. Its uniform heat distribution ensures secure, consistent adhesion of the decorative layer to the substrate, resulting in a perfectly smooth, defect-free finish, making it an indispensable tool for high-end furniture manufacturing and interior decoration projects. In the production of blockboard and particleboard, the machine supports surface veneering and flattening pressing processes. Its stacked configuration allows for simultaneous processing of multiple panels, with consistent pressure application to guarantee robust bonding, minimal thickness deviation, and superior panel flatness, making it ideal for manufacturing high-strength products including building formwork and furniture substrates. For decorative film lamination processes, the equipment excels at the hot pressing of PVC, PET, and other decorative film panels. It creates a durable, permanent bond between the plastic film and various substrates including particleboard and fiberboard, producing high-grade decorative panels with excellent wear and corrosion resistance. These panels are widely utilized in the production of custom cabinetry, wardrobes, and other bespoke furniture solutions for both residential and commercial settings.
4,Streamlined Maintenance and Service Support
To ensure long-term reliable operation and extend the service life of the equipment, routine maintenance protocols are straightforward and comprehensive. Operators should conduct regular inspections and retightening of connection bolts on critical components including the machine frame, hydraulic cylinders, and drive motors, to prevent loosening caused by prolonged mechanical vibration during continuous operation. It is also essential to monitor the oil level in the hydraulic oil tank, ensuring it remains within the recommended operating range, alongside regular visual checks of the oil condition. Any signs of emulsification, discoloration, or contamination indicate the need for prompt oil replacement to preserve system performance. The hydraulic system serves as the core operational backbone of the equipment, and its service life is directly tied to the cleanliness of the hydraulic fluid and consistent daily maintenance. All core hydraulic components, including oil pumps and valve assemblies, are sourced from globally recognized, industry-leading brands, engineered for an extended operational lifespan even in demanding production environments. Through regular oil analysis and continuous monitoring of system pressure and flow rates, operators can conduct predictive assessments of the hydraulic system’s health, identifying potential issues before they lead to unplanned downtime and ensuring consistent, uninterrupted production performance over the equipment’s lifecycle.
Specification
|
Maximum pressure |
160 T |
| Systm pressure | 20 mpa |
| Work platen size | 4000*1500*50mm |
| Max.platen opening | 120mm * 4-layer |
| Maximum temperature | 100℃ |
| Working level | 4-layer |
| Oil cylinder specification | 110mm*80mm * 8pcs |
| Hydraulic pump power | 7.5kw |
| Hot oil pump power | 3kw |
| Heating pipe power | 54kw |
| Overall dimensions | 55000*2300*2800mm |
| Weight (about) | 20000 kg |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
