| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Description

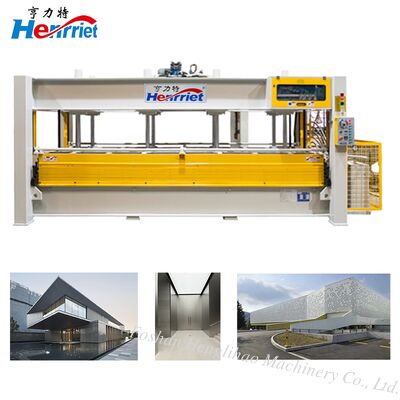

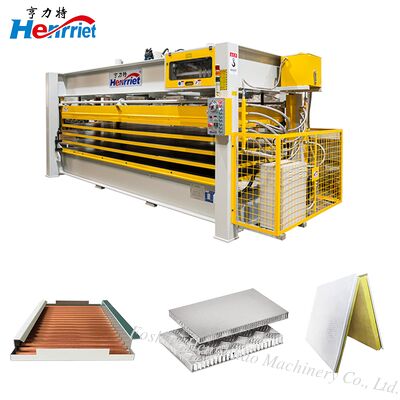

This advanced hot press system redefines industrial bonding for architectural metal and composite panels—aluminum composite, fireproof honeycomb, and corrugated composites—without relying on numerical specifications. Its innovative architecture integrates multi-stage vertical stacking with zone-specific thermal management, featuring four synchronized hydraulic pressing units and segmented thermal oil circulation for flawless material integration.
Feature
1,Superior production capacity
The advanced temperature control system accelerates adhesive curing processes while maintaining exceptional pressure uniformity across all pressing layers, achieving high-standard production efficiency without compromising quality. In large-scale continuous production environments, the equipment rapidly completes diverse pressing operations—including wooden door assemblies, medical-grade door panels, plywood stacks, multi-layer composite boards, manually assembled cleanroom panels, sandwich-structured composites, and complete roof panel systems. This parallel processing capability substantially reduces per-unit manufacturing costs while significantly improving order fulfillment rates and production throughput.
2,Integrated Safety and Protection
Emergency pull-cord system: Instant shutdown along the entire machine perimeter with a single rope tug, regardless of operator position.
Real-time pressure monitoring: Automatic system halt when thresholds are exceeded, instantly deactivating all heating elements.
Intuitive emergency brake: Dedicated panel access for immediate intervention during critical operations.
3,Wide-Ranging Application Versatility
Curtain wall innovation: Perfectly bonds aluminum coils with plastic cores for bubble-free, high-impact facades in airports and transit hubs.
Honeycomb panel mastery: Fuses fireproof aluminum honeycombs with face sheets under uniform heat and pressure, yielding lightweight, structural panels for iconic public buildings.
Corrugated composite precision: Creates robust, lightweight panels for transit interiors and partition systems through consistent core adhesion.
Luxury material fusion: Seamlessly integrates stainless steel, titanium zinc, and copper panels with honeycomb cores for bespoke architectural facades.
4,Streamlined Maintenance and Service Support
Verify critical fasteners (frame, hydraulic cylinders, motors) against vibration-induced loosening.
Monitor hydraulic oil clarity and level; replace if emulsified or degraded.
Premium global components (pumps, valve assemblies) ensure longevity, supported by predictive health analytics via fluid diagnostics and real-time pressure tracking.
Specification
|
Maximum pressure |
160 T |
| Systm pressure | 20 mpa |
| Work platen size | 4000*1500*50mm |
| Max.platen opening | 120mm * 4-layer |
| Maximum temperature | 100℃ |
| Working level | 4-layer |
| Oil cylinder specification | 110mm*80mm * 8pcs |
| Hydraulic pump power | 7.5kw |
| Hot oil pump power | 3kw |
| Heating pipe power | 54kw |
| Overall dimensions | 55000*2300*2800mm |
| Weight (about) | 20000 kg |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
