| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Description

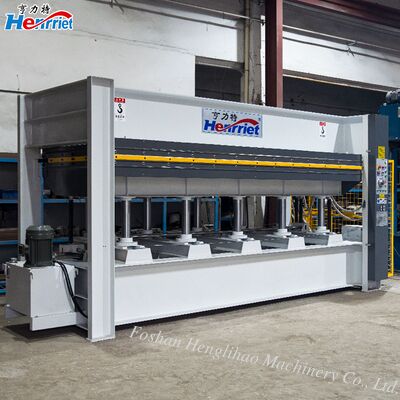

The two-layer hot press machine (bottom to top pressure) is an efficient hot press composite equipment developed specifically for various heavy-duty building panels. The whole machine adopts a reverse architecture innovation of "lower fixed worktable+upper movable pressing plate+hydraulic lifting drive". The core consists of two independently arranged hydraulic lifting systems and a partitioned thermal oil circulation heating system.
Feature
1,Superior production capacity
The bottom hydraulic cylinder adopts a high flow filling valve design. When unloaded, the support plate rises rapidly and instantly switches to high-pressure slow compression mode after contacting the plate. This "fast forward slow press" action logic not only protects the sheet structure, but also maximizes the compression of non production waiting time.
2,Integrated Safety and Protection
A safety rope switch has been installed around the hazardous area of the equipment. On the side or rear that cannot be covered by the grating, any person can trigger a global shutdown command by touching or pulling the safety rope, providing a safety net without blind spots for complex workshop environments.
3,Wide-Ranging Application Versatility

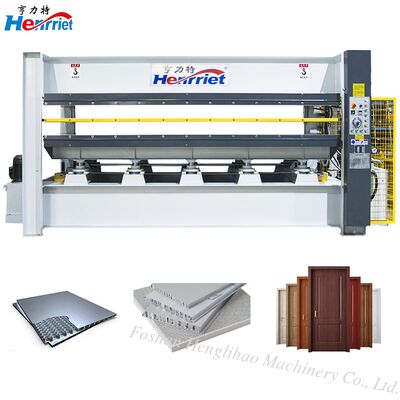

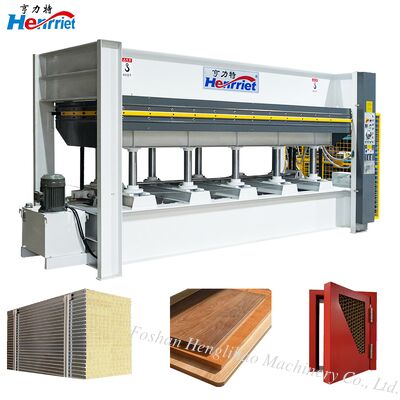

Thanks to its excellent pressure regulation range and precise temperature control, this two-layer hot press demonstrates amazing material compatibility and is widely used in high-end manufacturing fields such as building decoration, medical purification, transportation, and whole house customization
Door industry and customized furniture: perfect for surface pasting and structural compression of wooden doors and medical doors; In the manufacturing of whole roof panels, large core panels, and plywood, it can effectively eliminate internal bubbles, improve the nail holding force and flatness of the panels.
Composite and Purification Materials: Ideal equipment for producing handmade purification boards, sandwich composite boards, and multi-layer composite boards. Its uniform pressure ensures perfect penetration and curing of adhesives between different materials, such as color steel plates and rock wool/aluminum honeycomb.
Special and high-performance boards: For the pressing of carbon fiber board molding, ice fire board, and fireproof board pasting with extremely high requirements, the high-temperature and high-pressure environment of the equipment can fully stimulate the physical properties of the resin and fireproof materials, ensuring that the finished products meet strict fire and mechanical standards.
4,Streamlined Maintenance and Service Support
Due to the design of the bottom mounted oil cylinder, it is particularly important to inspect the sealing components of the cylinder. It is necessary to regularly observe whether there is any leakage at the oil circuit interface, and pay special attention to whether the fastening screws of the cylinder flange and cylinder rod are loose and tighten them in a timely manner. Regular maintenance of the heating system requires checking the quality of the heat transfer oil. Due to long-term use, the heat transfer oil may undergo chemical and physical changes, resulting in increased viscosity, residual carbon content, and acid value, which can affect the normal use of the system. In terms of electrical systems, the usage status of each component and travel limit switch inside the electrical control box should be checked monthly.
Specification
|
Maximum pressure |
120T |
| Systm pressure | 20 mpa |
| Work platen size | 3000*1300*42mm |
| Max.platen opening | 200mm |
| Maximum temperature | 120℃ |
| Working level | 2-layer |
| Oil cylinder specification | 90mm * 10pcs |
| Hydraulic pump power | 4kw |
| Hot oil pump power | 2.2kw |
| Heating pipe power | 54kw |
| Overall dimensions | 4300*1800*2500mm |
| Weight (about) | 7200kg |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
