| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Description

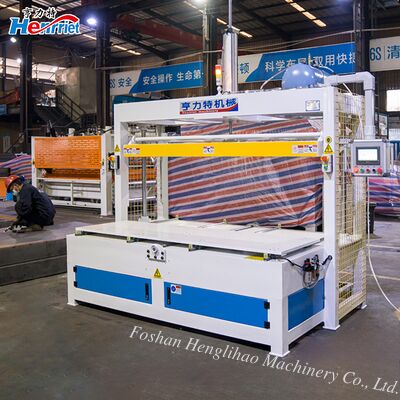

The small air cylinder cold press is a compact pneumatic equipment designed specifically for the needs of lightweight and precision sheet metal pressing. Its core structure consists of a high-quality cylinder drive system, a high-strength frame body, a precision pressure plate, an air pressure control unit, and a simple electrical system. The equipment adopts a pure pneumatic drive design, without the need for power supply. It only needs to be connected to compressed air to work. The pressure can be infinitely adjusted through a pressure regulating valve, and the operation is simple and convenient.
Feature
1,Superior production capacity
In terms of production capacity, this small cylinder cold press achieves a perfect balance between flexible production and stable output through pure pneumatic rapid response design and compact and efficient structure. Configure a PLC intelligent control system to automatically transport materials. The equipment is directly driven by cylinders, which eliminates the need for motor start-up and oil pump pressurization compared to hydraulic systems. The response speed is faster, and the no-load descent and return actions are faster, effectively shortening the single pressing cycle time. The pressure of the pneumatic drive system is continuously adjustable, and the operator can quickly set the appropriate pressure according to the process requirements of different boards.
2,Integrated Safety and Protection
The electrical control cabinet integrates multiple electrical protection devices such as overload protection, short circuit protection, phase loss protection, and leakage protection. The motor and main electrical components are selected from internationally renowned brands that comply with CE certification, ensuring the long-term stability and safety of the electrical system. Mushroom shaped emergency stop buttons that comply with international standards are installed in easily accessible positions on the control panel and body, which can cut off all power sources of the equipment with one click in any emergency situation.
3,Wide-Ranging Application Versatility

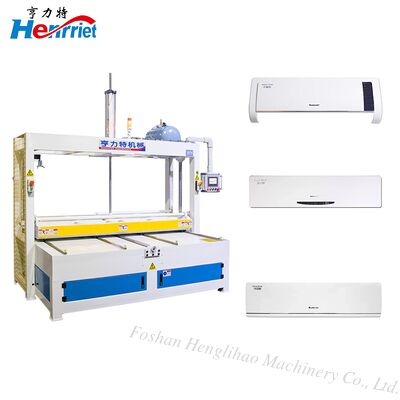

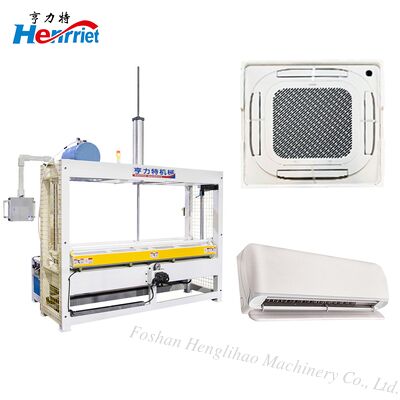

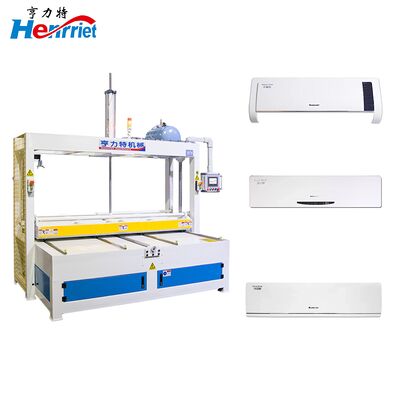

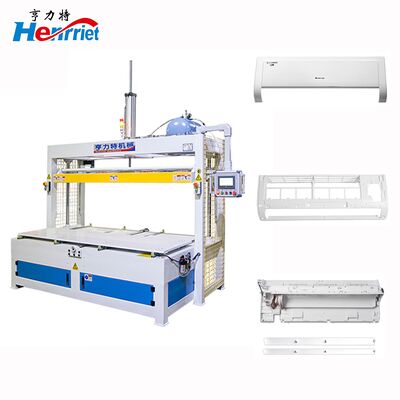

With its precise pressure control and excellent surface treatment capabilities, the small cylinder cold press has surpassed a single industry and become the preferred equipment in many high-end manufacturing fields Core areas of home appliance manufacturing: specially designed for air conditioning plastic panels, perfectly adapted to air conditioning high gloss ABS/PC panels, air conditioning air outlet components, air conditioning inner unit shells, air conditioning control panel lamination, foam buffer strip bonding, nameplate pressing, buckle component pre pressing and other full process pressing processing; At the same time, it can be widely adapted to the press fit production of plastic interior panels for refrigerators, touch panels for washing machines, TV shell components, water heater panels, and various small household appliance plastic shells, without damaging the surface of the workpiece or fracturing the thin-walled structure, perfectly meeting the high requirements of the home appliance industry for appearance and accuracy.
4,Streamlined Maintenance and Service Support
Regularly check the sealing of fasteners and tracheal joints every month. The built-in pressure monitoring gauge of the equipment can reflect the system status in real time, enabling targeted maintenance work and preventing problems before they occur.
Specification
|
Pressure method |
Press down from top to bottom |
| Pressure plate size | 2300 * 800mm |
| Spacing between pressure plates | 700mm |
| Maximum pressure | 0.5T |
| Cylinder specifications | 1pcs(120*120*700mm) |
| Operating system | PLC Intelligent Control System |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
Service Support
Scope of Application
Product Display
Production workshop actual shooting
Product details
Company Introduction
Corporate Advantages
Visitors and Communication
Production level and manufacturing process
Exhibition and Exchange
Packaging and Logistics
Certificates and Honors
Address
No. 3-9 Xingye Middle Road, Changjiao Community, Lunjiao Street, Shunde District, Foshan City, Guangdong Province, China
Tel
86-180-2934-5363
