Double-side Synchronous Stacking Machine with PLC Touch Control and Pneumatic Stacking Mechanism for Honeycomb Core Production Lines

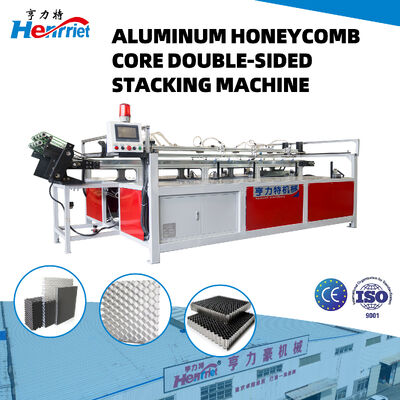

Aluminum Honeycomb Core Double-Side Stacking Machine — Automatic Stacking Auxiliary Equipment for Honeycomb Core

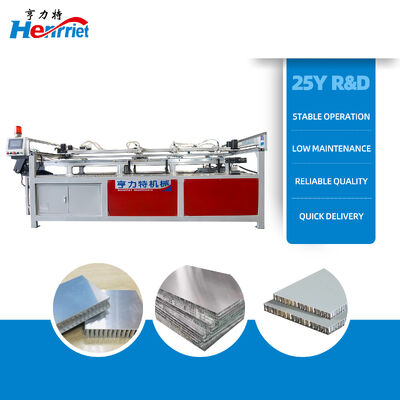

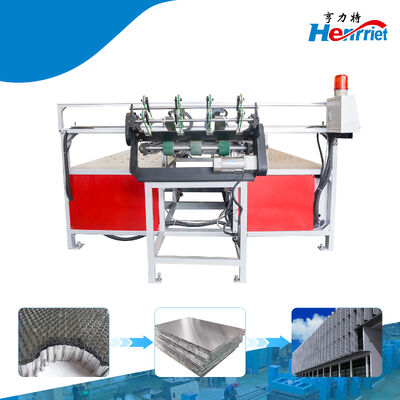

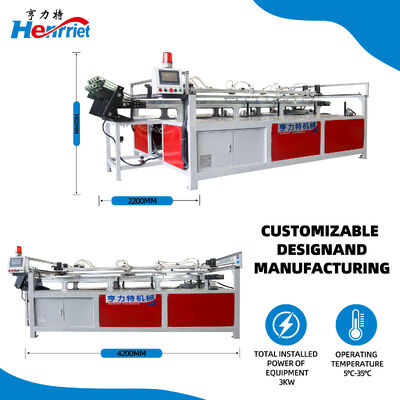

The Henriet aluminum honeycomb core double-side stacking machine is a dedicated automatic auxiliary machine for the honeycomb core assembling process. It features an integrated frame with a neat layout, finished mainly in red and white, and is equipped with a PLC touch control unit and acousto-optic warning components that allow connection with honeycomb core production lines. The machine completes double-side synchronous stacking via a pneumatic mechanism to arrange and position honeycomb core blanks in an orderly manner, replacing the traditional manual stacking mode.

• Superior Production Capacity

  The machine adopts a double-side synchronous stacking structure with a standardized stacking process and stable consistency of stacked layers. Controlled by program logic, its operation rhythm can match the output pace of upstream honeycomb core pre-processing and continuously provide assembled stacks. It avoids misalignment and disordered arrangement caused by manual operation, keeps a uniform feeding condition for subsequent composite processes, and reduces production downtime caused by abnormal raw stacks.

• Security Guarantee

  The machine is fitted with an acousto-optic alarm to send warning signals under abnormal working conditions. The electric control area uses closed cabinet protection to isolate electrical components and reduce accidental contact risks. The pneumatic circuit comes with standard pressure protection logic to restrict actuator movement when the air supply is abnormal. The frame structure is stable, and guardrails divide the working zone to separate moving mechanisms from operators.

• Application Areas

  It fits mass-production lines of aluminum honeycomb core. The finished honeycomb core stacks can be used for composite processing of building curtain wall panels, cleanroom enclosure honeycomb panels, rail transit composite panels, marine interior panels, and furniture aluminum honeycomb panels, serving as auxiliary process equipment for honeycomb panel production lines.

• Maintenance and Upkeep

  The machine features a modular layout, with pneumatic assemblies, electric control units, and transmission components arranged separately for easy point-to-point maintenance. Routine maintenance focuses on cleaning the air filter unit, lubricating moving pairs, calibrating sensor positions, and inspecting wiring. Periodic inspection of pneumatic pipe joints, the touch screen, and alarm components is required, and worn parts should be replaced in a timely manner to maintain stable long-term operation. No large-scale disassembly of the main frame is needed for maintenance.

• Two In-House Factories = Better Prices, Faster Delivery

  We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.

• More Than 30 Senior Engineers, Custom-Built for You

  Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making — we'll build exactly what you need.

• CE & ISO 9001 Certified, Global-Ready

  Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations — ready to plug and play anywhere in the world.

• 50+ Countries, 1,000+ Projects, Proven Design and Manufacturing Experience

  We've shipped to over 50 countries and completed more than 1,000 custom designs. Our equipment is engineered for long-term, heavy-duty use — proven in real factories worldwide.

• Warranty: 1 year
• Packaging: Film with foam
• 24-hour customer service hotline; repair needs responded to within 48 hours
• Free video training for operators and provision of process guidance manuals
• Lifetime technical support and software upgrade services
