| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

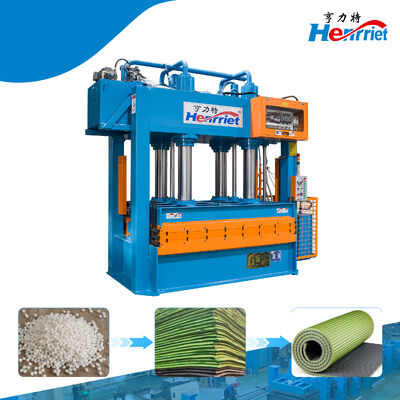

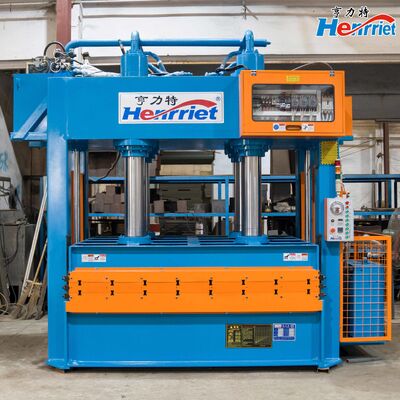

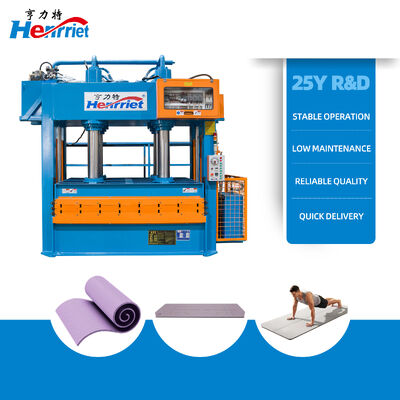

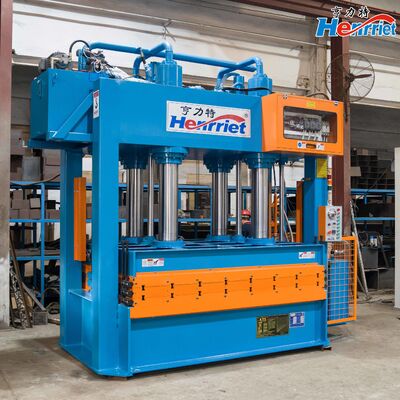

This vertical two-layer hot press utilizes a rigid steel frame with a modular design, finished in a blue and orange color scheme. Hydraulic actuators are mounted on the upper crossbeam, driving the layered platens. The system integrates a thermal oil circulation heating unit and a hydraulic drive mechanism, offering adjustable temperature settings and consistent forming pressure through its hydraulic architecture.
It is primarily employed for the lamination, shaping, and surface texturing of mats, functioning as a central forming component in yoga mat manufacturing lines.
The equipment features two autonomous working layers capable of simultaneous hot pressing, thereby increasing operational stations within the footprint of a single unit. In contrast to single-layer configurations, the dual-layer design enables the processing of two workpiece sets per cycle, facilitating adaptable production planning that aligns with the continuous batch output needs of industrial facilities. The downward-stroke hydraulic transmission ensures synchronized platen movement, minimizing idle time resulting from motion discrepancies during each cycle.
The monolithic welded steel chassis offers structural load reserve for sustained cyclic pressing operations. A protective mesh guard surrounds the moving platen area to mitigate the risk of accidental operator contact. The hydraulic circuit incorporates pressure relief mechanisms to restrict pressure levels should they surpass predefined thresholds. Electrical control elements are housed in isolated compartments with standardized cabling, reducing the likelihood of electrical faults during prolonged continuous usage.
This press is predominantly utilized in high-volume yoga mat production, suitable for the thermal forming, surface embossing, and lamination of TPE, EVA, and foam-based sports mat substrates. It complements yoga mat OEM facilities and gym mat assembly lines for processing non-slip mats and high-density exercise mats, while also accommodating low-temperature pressing for comparable flexible foam sheet materials.
The hydraulic power unit, cylinders, and thermal oil conduits are modularized to streamline spot inspections and component replacement. Heating circuits on the platens are segmented into zones, allowing for independent inspection of local heating modules. Standard maintenance procedures include monitoring hydraulic fluid levels and condition, verifying safety guard stability, checking terminal connections, and cleaning circulation oil filters. Adequate clearance is provided to facilitate regular upkeep without requiring extensive dismantling of the machinery.
| Technical Data | HRY-300T/2 floors |
|---|---|
| Maximum pressure | 300T |
| Work platen size | 2300 × 1700 mm |
| System pressure | 20 MPa |
| Max. platen opening | 350 mm |
| Maximum temperature | 100 °C (adjustable from room temperature to 100 °C) |
| Working level | 2 floors |
| Oil cylinder specification | 700 mm × 200 mm × 4 pcs |
| Hydraulic pump power | 7.5 kW |
| Hot oil pump power | 1.5 kW |
| Heating pipe power | 72 kW |
| Overall dimensions | 2830 × 1700 × 3120 mm |
| Weight (approx.) | 15000 kg |
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making — we'll build exactly what you need.
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations — ready to plug and play anywhere in the world.
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use — proven in real factories worldwide.
We are based in Guangdong, China, and started in 2016. We sell to the Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees.
We have more than 20 years of experience in the machinery industry, with two factories covering over 20,000 square meters and more than 130 professional employees, including a senior design team of over 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We provide comprehensive installation, commissioning, and operator training so that your machine can be put into production immediately upon arrival.
