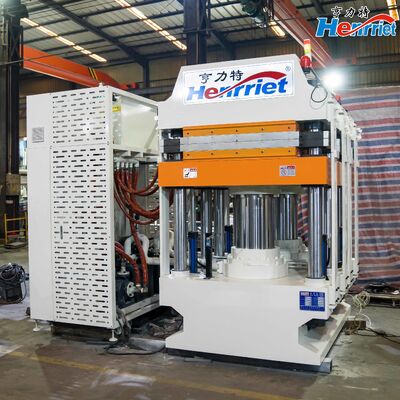

200T Maximum Pressure 3 Layer Hydraulic Hot Press Machine with 1000 x 1000 mm Work Platen for Circuit Board Production

The three-layer hydraulic hot press is developed for processing tasks that call for heat and pressure applied together to boards, electronic materials, and composite parts. With a vertical body structure, the machine occupies a relatively small footprint and keeps its operating zone concentrated, which tends to simplify workshop layout, operator movement, and later servicing work.

By combining a hydraulic pressing unit with a heating system, the equipment can serve forming operations where both temperature and force need to be managed. The three-tier working layout is arranged for sites that handle several working levels within one cycle. The way workpieces are placed, the sequence in which pressure is applied, and settings such as temperature and pressure are generally defined by the physical behaviour of the materials and the target specifications of the finished item.

Manufacturers comparing PCB hot pressing equipment, presses for electronic materials, or machines intended for CCS integrated busbar processes may find it helpful to judge fit by looking at workpiece size, material pairing, the chosen pressing method, and overall process demands.

Output from an industrial hot press is usually shaped by several factors at once, including pressing force, how quickly workpieces can be loaded, the time needed to reach temperature, dwell duration, how the material itself responds, and the way loading and unloading are organised. The three-tier station arrangement offers one possible configuration for tasks that lend themselves to layered processing.

In workshops handling more than one working level at a time, sensible production scheduling can help streamline workpiece flow and limit the idle time that arises when loading steps are poorly coordinated. During selection, it is advisable to review actual workpiece dimensions, batch volumes, target temperatures, cycle length per press, and operator routines in a systematic way. Where PCB or CCS-type parts are involved, clarifying product structure, the upper temperature limit the material can tolerate, and the intended pressing approach before deciding on suitability tends to be worthwhile.

Real throughput after installation is generally confirmed through trial runs and cycle-time measurement, rather than estimated from the number of working levels alone.

Hot pressing equipment brings together hydraulic actuators, heated working surfaces, and live control systems, so safety considerations generally span installation, daily use, inspection, and upkeep. The type and specification of guards, emergency stop buttons, interlock functions, and overload protection are typically checked against the configuration actually delivered and the accompanying technical documents.

Before the machine is put into service, it is advisable to follow the supplier's documentation when confirming installation condition, checking hydraulic circuits, verifying electrical connections, and commissioning the heating unit. Operators are usually better prepared once they understand start-up and shutdown steps, temperature adjustment, and how common irregularities present themselves, and when they work in line with the safety rules of their facility.

While the machine is running, hands and other parts of the body are kept away from hazardous zones, in particular when the platen is travelling or pressure is being applied. Before servicing, cleaning, or troubleshooting, isolating the relevant energy sources in line with established procedures and confirming that moving parts and heated surfaces have reached a safe state are normal practice.

The suitable scope of a three-level hot press is best defined by reference to the actual manufacturing process, with workpiece dimensions, processing temperature, required pressure, and material construction being among the factors that deserve close attention.

For PCB-related materials and electronic composites that need heat pressing, whether the machine fits can be assessed from the layer structure of the material and the process conditions involved. It is worth noting that not every step within PCB manufacturing includes a hot pressing operation. The intended application is advisable to cross-check against the recommendations of the material supplier and to confirm with actual pressing trials.

CCS, or Cell Contact System, generally refers to cell interconnection and signal acquisition assemblies used in battery applications. Where CCS products incorporate circuit boards, connection structures, or composite materials, equipment compatibility is usually judged from the actual component design, the temperature limit of the material, and the pressing method. If the process flow also involves welding, precision electrical connections, or other specialised operations, additional equipment may be needed.

Other boards and composite parts that respond to combined heat and pressure can also be considered for evaluation. Whether they are suitable depends on material properties, processing cycle, and the requirements placed on the finished item. The final application boundary is generally settled through technical discussion, sample pressing, and process validation.

A planned maintenance regime usually helps to spot irregular behaviour at an early stage and reduces the likelihood of unplanned downtime linked to component wear, hydraulic issues, or heating system faults. Maintenance intervals can be set with reference to how often the machine runs, the conditions on site, and the recommendations provided by the manufacturer. Before maintenance work begins, energy isolation is carried out in line with the relevant procedure, and tasks involving hydraulic pressure or hot components are preferably handled by trained personnel.

Hydraulic lines, fittings, cylinders, and sealing areas are inspected at regular intervals for leakage, unusual vibration, or abnormal noise. The condition of the hydraulic fluid is also monitored, with fluid replacement or filtration carried out at the intervals specified for the machine.

Heating elements, electrical connections, and temperature control components are examined. When abnormal temperatures occur, heating time shifts noticeably, or the control system raises an alarm, suspending the affected operation and arranging an inspection by qualified personnel is the usual course of action.

Platen surfaces and the pressing area are kept clean so that material residue does not interfere with workpiece positioning or normal operation. The frame, fasteners, and moving parts are reviewed periodically, and any unusual wear, looseness, or deformation is assessed and addressed in good time.

The safety devices and control functions supplied with the machine are inspected, and records of inspection, servicing, fault diagnosis, and component replacement are kept for later reference and condition tracking.
