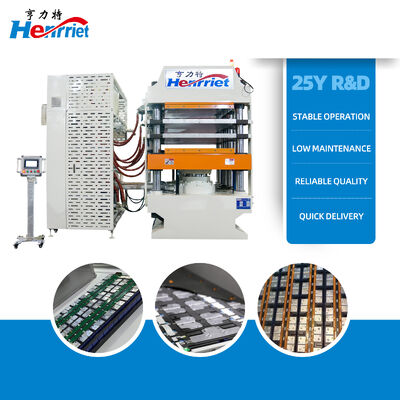

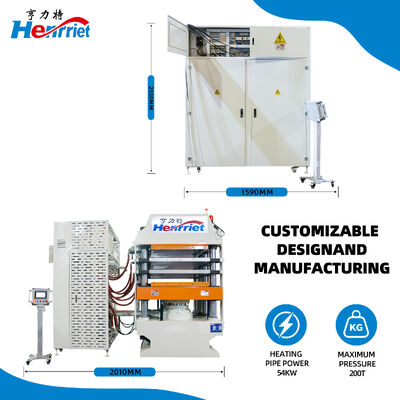

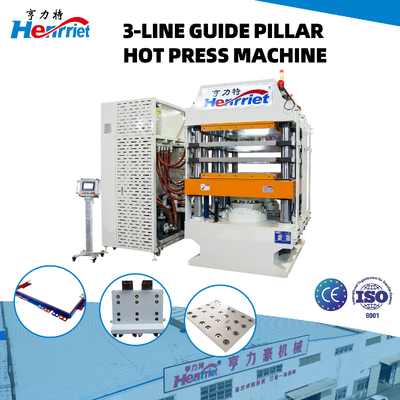

3 Layer Hot Press Machine with 200T Maximum Pressure and 1000mm x 1000mm Work Platen for Battery CCS Busbar Pressing

The 3 Layer Hydraulic Hot Press Machine is an industrial pressing system intended for board, electronic-material, and composite-component work that calls for heat and pressure. Its vertical frame layout supports a compact equipment arrangement; the focused working area can assist with workshop planning, operator access, and routine maintenance.

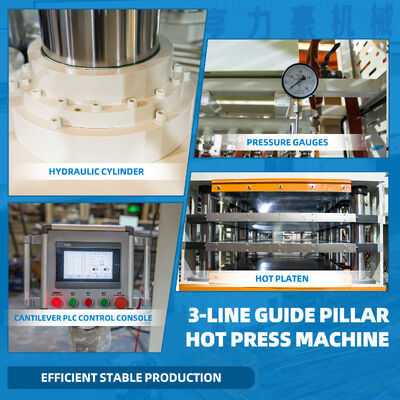

The machine pairs hydraulic pressing with a heating system for manufacturing processes that call for controlled pressure and temperature. Its three-level working structure is intended for production settings that involve multiple working levels. Workpiece arrangement, pressing sequence, and processing conditions can be set according to material behavior and finished-product needs.

For manufacturers reviewing a PCB hot press machine, an electronic materials press, or equipment for CCS integrated busbar-related work, suitability can be assessed by reviewing workpiece dimensions, material combinations, pressing methods, and process needs.

The output of an industrial hot press is influenced by pressing capability as well as workpiece loading, heating time, pressure-holding cycles, material behavior, and loading/unloading steps.

The three-level working arrangement offers a configuration option for manufacturing tasks that suit multi-level processing. Where a factory manages several working levels, suitable production planning can help organize workpiece handling and reduce equipment waiting linked to inefficient loading arrangements.

When selecting equipment, manufacturers can review actual workpiece dimensions, batch quantities, required processing temperatures, pressing cycles, and operator workflows. For PCB- or CCS-related components, product structure, material temperature limits, and the pressing process can be confirmed before judging machine suitability.

Practical production capacity can be established through process trials and cycle-time calculations, instead of being estimated from the number of working levels by itself.

Hot pressing equipment involves hydraulic moving parts, heated working areas, and powered operating systems. Safety management can therefore cover installation, operation, inspection, and maintenance.

Before commissioning, the machine can undergo installation checks, hydraulic system inspections, electrical connection verification, and heating system commissioning in line with the manufacturer's instructions. Operators can become familiar with startup and shutdown procedures, temperature controls, and abnormal operating conditions, and can follow the applicable workplace safety rules.

During operation, personnel should keep hands and other body parts away from hazard zones, particularly while the machine is moving or pressing. Before maintenance, cleaning, or fault inspection, relevant energy sources can be isolated according to applicable safety procedures, and moving parts and heated areas should be confirmed safe to access.

The actual supply of guards, emergency stops, interlocks, and overload protection can be checked against the machine's delivered configuration and technical documentation.

The use of a three-level production hot press can be determined by the actual manufacturing process, with attention to material construction, processing temperature, pressure needs, and workpiece dimensions.

For PCB-related materials and electronic composites that involve heat pressing, machine suitability can be evaluated according to material construction and process needs. The intended use can be checked against material supplier recommendations and actual pressing trials. Whether hot pressing is involved depends on the specific PCB process.

CCS, or Cell Contact System, generally refers to cell interconnection and monitoring assemblies for battery applications. For CCS-related products that involve circuit boards, connection structures, or composite materials, equipment compatibility can be assessed according to the actual component design, material temperature limits, and pressing method. Where the manufacturing process also involves welding, precision electrical connections, or other specialized operations, additional equipment may be needed.

Other boards and composite components that involve heat and pressure can also be reviewed for potential use. Suitability depends on material properties, processing cycles, and finished-product needs. The final application scope can be established through technical consultation, sample testing, and process validation.

A structured maintenance program can help identify abnormal operating conditions and reduce the risk of unplanned downtime linked to component wear, hydraulic problems, or heating system faults. Maintenance intervals can be set according to operating frequency, working conditions, and the manufacturer's recommendations.

Hydraulic lines, fittings, cylinders, and sealing areas can be inspected regularly for leakage, unusual vibration, or abnormal operating noise. Hydraulic fluid condition can be checked, and fluid replacement or filtration maintenance can be carried out at the intervals specified for the machine.

Heating elements, electrical connections, and temperature control components can be inspected. If abnormal temperatures, notable changes in heating time, or control system alarms occur, the affected operation can be suspended and an inspection by qualified personnel can be arranged.

Platen surfaces and the pressing area can be kept clean to reduce interference from material residue with workpiece positioning and normal operation. The frame, fasteners, and moving components can be inspected periodically. Unusual wear, looseness, or deformation can be assessed and addressed promptly.

Safety devices and control functions supplied with the actual machine configuration can be inspected. Records of inspections, servicing, fault diagnosis, and component replacement can be maintained. Before maintenance, applicable energy isolation procedures can be followed. Work involving hydraulic pressure or heated components can be performed by trained personnel.

1. Two In-House Factories — Better Prices, Faster Delivery. We own two independent R&D and manufacturing facilities. No middlemen, no markups. You buy straight from the source, with full control over production speed and costs.
2. More Than 30 Senior Engineers — Custom-Built for You. Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making — we'll build exactly what you need.
3. CE & ISO 9001 Certified — Global-Ready. Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations — ready to plug and play anywhere in the world.
4. 50+ Countries, 1,000+ Projects — Proven Design and Manufacturing Experience. We've shipped to over 50 countries and completed more than 1,000 custom designs. Our equipment is engineered for long-term, heavy-duty use — proven in real factories worldwide.

• Warranty: 1 year.
• Packaging: film with foam protection.
• 24-hour customer service hotline; repair needs responded to within 48 hours.
• Free video training for operators and provision of process guidance manuals.
• Lifetime technical support and software upgrade services.
