Automatic Honeycomb Making Machine for Foldable Paper Wall Partition with 4000-8000cps Viscosity Compatible Paper Honeycomb Production Line

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Effective Width Range Of Glue Machine:

300-900mm

Glue Supply Speed:

1-12 M/min

Stainless Steel Rubber Storage Tank:

40L

Electric Heating:

20-30℃

Viscosity Range:

4000-8000cps

Power:

5.75kw

Belt Conveyor Size:

Length 3600 × Width 900, Working Height 900mm (±50)

Maximum Specification Size Of The Product:

Width 900mm × Length 3500mm

Minimum Specification Size:

Width 240mm × Length 1000mm

Equipment Power:

0.75KW

Beam:

2000mm

The Width Of The Device Body Is 4500mm:

4500mm

Suction Cup Holder:

1200X3000mm

The Suction Cup Should Be At Least Above The Ground:

700mm

Up And Down Moving Motor:

2 .2KW

Left And Right Moving Motors:

2 .2KW

Equipment Efficiency:

2-3 Cycles/min

Equipment Load Capacity:

0-100KG

Packaging Details:

Film with Foam

Highlight:

4000-8000cps Viscosity Honeycomb Making Machine

Foldable Paper Wall Partition Honeycomb Production Line

Automatic Production Line Honeycomb Making Machine

Product Description

Paper Honeycomb Automatic Production Line for Foldable Paper Wall Partition

Product Overview

This production line integrates adhesive application, belt conveying, and gantry-style unloading units in a frame-based layout. It supports continuous output of paper honeycomb panels by coordinating roll feeding, adhesive spreading, panel transfer, and finished-panel removal. Stainless steel adhesive storage and temperature regulation ensure stable operation with adhesives of varying viscosities.

Key Features

Superior Production Capacity: Adjustable material feed speed accommodates panels in multiple specifications. Gantry unloading design minimizes process interruptions during continuous operation.
Security Guarantee: Motor assemblies ensure steady motion with limit controls on moving parts. Enclosed adhesive tank and temperature management reduce overflow and vapor release risks.
Application Areas: Suitable for furniture door cores, interior decorative boards, logistics packaging bases, and lightweight composite building materials.
Maintenance & Upkeep: Modular design allows easy access for cleaning and replacement. Service space is reserved around electrical control and drive sections.

Technical Specifications

Parameter	Specification
Effective Glue Coating Width	300-900mm
Glue Supply Speed	1-12 m/min
Stainless Steel Glue Storage Tank	40L
Electric Heating Range	20-30℃
Viscosity Range	4000-8000cps
Glue Machine Power	5.75kW
Belt Conveyor Size	Length 3600 × Width 900, Working Height 900mm (±50)
Maximum Product Size	Length 3500mm × Width 900mm
Minimum Product Size	Length 1000mm × Width 240mm
Conveyor Power	0.75kW
Gantry Beam Length	2000mm
Device Body Width	4500mm
Suction Cup Holder Size	1200×3000mm
Suction Cup Ground Clearance	≥700mm
Vertical Movement Motor	2.2kW
Horizontal Movement Motor	2.2kW
Equipment Efficiency	2-3 cycles/min
Equipment Load Capacity	0-100kg

Company Advantages

Direct Manufacturing: Two in-house factories ensure competitive pricing and faster delivery without middlemen.
Custom Engineering: 30+ senior engineers design machines tailored to your production needs, floor space, and budget.
Global Certification: CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety standards.
Proven Experience: 50+ countries, 1000+ projects with equipment engineered for long-term, heavy-duty use.

Service Support

Warranty: 1 year
Packaging: Film with foam protection
24-hour customer service hotline with 48-hour response for repair needs
Free video training for operators with process guidance manuals
Lifetime technical support and software upgrade services

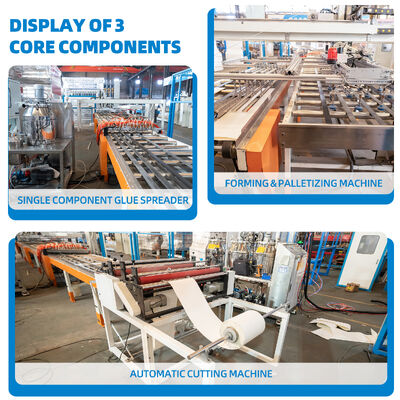

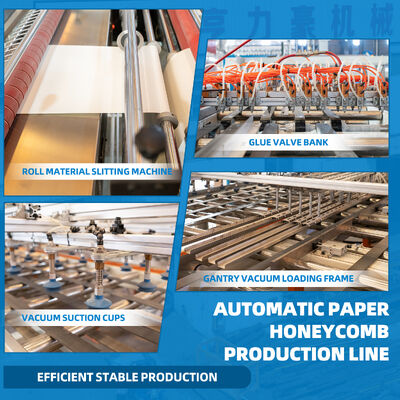

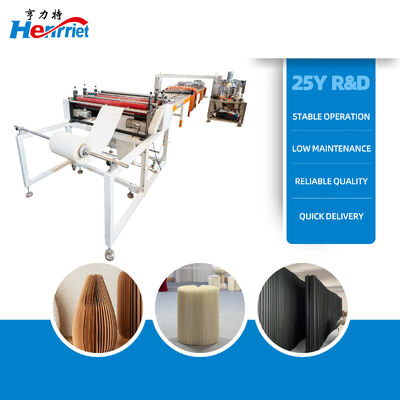

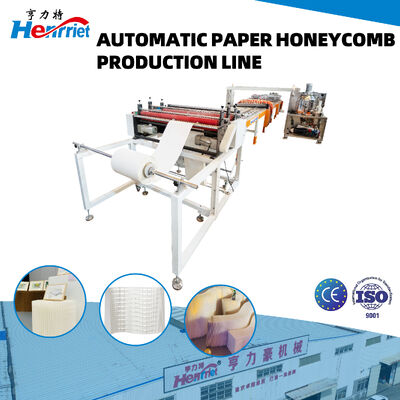

Product Image

Company Introduction

Frequently Asked Questions

Who are we?

Based in Guangdong, China since 2016, we serve Domestic Market (55%), Africa (20%), South Asia (9%), Central America (6%), Oceania (5%), South America (3%), and Eastern Asia (2%). With over 110 employees, we're committed to quality machinery manufacturing.

Why should you buy from us instead of other suppliers?

With over 20 years in the wooden machinery industry, we operate two factories covering 20,000+ square meters. Our 130+ professional employees include 30+ senior engineers who create custom machine designs. We provide comprehensive installation, commissioning, and operator training for immediate production upon arrival.

How do we guarantee quality?

Our quality process includes: customer requirement confirmation, engineer-designed machine drawings, on-site guidance for cutting/welding/assembly, full-process functionality testing, and final inspection by engineers and project leaders before shipment.

What products can you buy from us?

We offer hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and various non-standard automated production lines.

What services do we provide?

Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Payment: USD, EUR, CNY via T/T, L/C, PayPal, Western Union, Cash. Languages: English, Chinese, Spanish, Japanese, Russian, Hindi.
