500T Maximum Pressure Multi-Cylinder Drive Cold Press with Forklift Slots for Aluminum Honeycomb Panels

500T Maximum Pressure Multi-Cylinder Drive Cold Press with Forklift Slots for Aluminum Honeycomb Panels

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Top-down Pressing

Maximum Pressure:

500 Tons

Workbench Dimensions:

4500mm*1370mm

Go Down To The Workbench:

Forklift Slots Available

Pressure Plate Opening Distance:

1500mm

Hydraulic Station, Hydraulic Valve Group:

1 Set

Hydraulic System Motor Power:

11KW

Main Oil Cylinder And Quantity:

3 Pcs, 300mm Plunger Cylinders

Auxiliary Cylinder And Quantity:

2 Pcs, 90mm Plunger Cylinders

Cylinder Stroke:

1050mm

Overall dimensions:

5070×1390×3900mm

Packaging Details:

Film with Foam

Highlight:

500T Maximum Pressure Cold Press

Multi-Cylinder Drive Hydraulic Press

Forklift Slots Laminating Press

Product Description

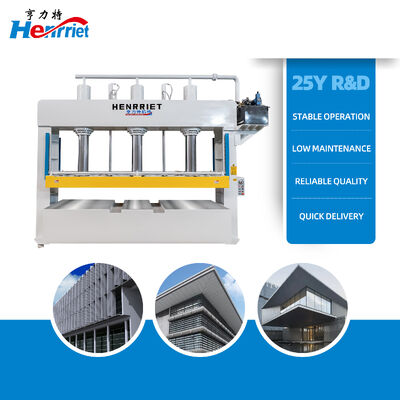

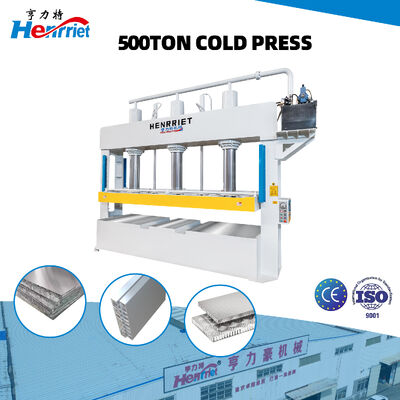

Multi-Cylinder 500T Cold Press

Dedicated Hydraulic Equipment for Bonding and Press-Fixing Aluminum Honeycomb Face Sheets

Product Overview

This 500-ton cold laminating press operates on a downward-acting hydraulic principle and features a heavy-duty gantry-style frame. The synchronized multi-cylinder drive provides generous daylight opening between platens, while integrated fork pockets facilitate easy movement of heavy panels using a forklift. The machine completes lamination by maintaining hydraulic pressure at ambient temperature, making it ideal for cold-adhesive bonding of veneer-faced boards, aluminum honeycomb panels, and stainless steel door skins.

Key Features

Superior Production Capacity: Multiple synchronized cylinders distribute load evenly across the platen surface, enabling large-format panel bonding in a single pressing cycle. Fork pocket design reduces handling effort for heavy workpieces.
Security Guarantee: Heavy-gauge steel frame minimizes structural deflection during extended heavy-load operation. Valve manifold includes overload protection with automatic pressure release when preset limits are exceeded.
Application Areas: Surface bonding of veneer boards, composite processing of aluminum honeycomb panels, metal composite sheets, and shaping of stainless steel door leaves.
Maintenance and Upkeep: Modular hydraulic components allow individual unit servicing without system disruption. Pre-arranged test points support routine pressure and condition monitoring.

Technical Specifications

Specification	Details
Pressure Mode	Top-down pressing
Maximum Pressure	500 tons
Workbench Dimensions	4500mm * 1370mm
Workbench Access	Forklift slots available
Pressure Plate Opening Distance	1500mm
Hydraulic System Motor Power	11KW
Main Oil Cylinders	3 pcs, 300mm plunger cylinders
Auxiliary Cylinders	2 pcs, 90mm plunger cylinders
Cylinder Stroke	1050mm
Overall Dimensions	5070 * 1390 * 3900mm

Company Advantages

Direct Manufacturing: Two in-house factories ensure competitive pricing and faster delivery with no intermediary markups.

Custom Engineering: 30+ senior engineers design machines tailored to your production needs, floor space, and budget.

Global Certification: CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations.

Proven Experience: Over 50 countries served with 1000+ projects completed, engineered for long-term heavy-duty use.

Service Support

Warranty: 1 year
Packaging: Film with foam protection
24-hour customer service hotline with 48-hour response time for repair needs
Free video training for operators and process guidance manuals
Lifetime technical support and software upgrade services

Product Image

Company Introduction

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2016. We serve Domestic Market (55%), Africa (20%), South Asia (9%), Central America (6%), Oceania (5%), South America (3%), and Eastern Asia (2%). We have over 110 employees.

Why should you buy from us instead of other suppliers?

With over 20 years in the wooden machinery industry, we operate two factories covering 20,000+ square meters. Our 130+ professional employees include a senior design team of 30+ engineers who create custom machine designs. We provide comprehensive installation, commissioning, and operator training to ensure immediate production upon machine arrival.

How can we guarantee quality?

We confirm machine functions through customer communication, complete custom machine drawings, provide on-site engineering guidance for cutting, welding, and assembly operations, conduct full process functionality testing, and perform final inspections before shipment.

What can you buy from us?

We offer hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and various non-standard automated production lines.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Types: T/T, L/C, PayPal, Western Union, Cash. Languages Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
