Automatic Panel Flipper with 180° Rotary Flipping for 3200×700mm Sheets at 3-4 Cycles Per Minute

Automatic Panel Flipper with 180° Rotary Flipping for 3200×700mm Sheets at 3-4 Cycles Per Minute

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Device Dimensions:

Width 1500mm, Length 3200mm, Height 1600mm

Effective Width Of Roller Surface:

800mm (±50)

Working Height:

900mm

Flip Drive Motor Power:

2.2KW

Roller Drive Motor Power:

1.5KW

Equipment Efficiency:

3-4 Cycles Per Minute

Applicable Maximum Specifications For Sheet Metal:

3200*700mm

Minimum Specifications For Applicable Board Materials:

500*500mm

Equipment Weight:

1.3T

Equipment Load Capacity:

0-200KG (Efficiency Decreases With Heavier Load)

Rubber Roller Diameter:

54mm

Roller Spacing:

180mm

Distance Between The Vertices Of The Upper And Lower Rollers:

100mm

Packaging Details:

Film with Foam

Highlight:

180° Rotary Flipping Automatic Panel Flipper

3200×700mm Maximum Sheet Size Panel Turner

3-4 Cycles Per Minute Slab Flipping Machine

Product Description

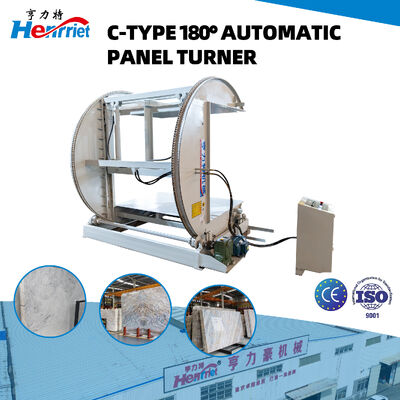

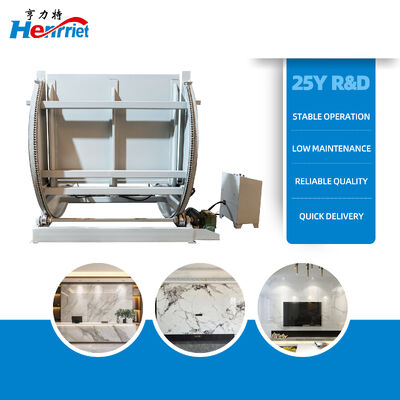

Cylindrical Ring Automatic Panel Flipper

Continuous 180° Large Slab Flipping Machine for Stone Processing Line

This cylindrical 180° automatic panel turner features an annular cylindrical frame structure with excellent rigidity and stable overall operation. Equipped with a rubber-coated roller conveying mechanism, it efficiently completes 180° rotary flipping of panels.

Product Overview

The machine is configured with two sets of independent drive motors for flipping motion and sheet conveying, enabling continuous operation processes including feeding, positioning, flipping, and discharging. With a compact structure and adjustable floor space, it's ideal for station connection scenarios in panel processing production lines.

Key Features

Superior Production Capacity: Converts panel flipping to automatic continuous operation, replacing manual processes. Synchronous linkage between flipping and conveying maintains stable continuous flipping cycles and reduces process interruptions.
Security Guarantee: Closed annular frame design restricts operator access to rotating areas. Partition motion control with interlocking logic reduces mechanical collisions. Rubber-coated rollers minimize sheet sliding risks.
Application Areas: Suitable for various composite panels and large hard sheets including magnesium oxide fireproof boards, stone slabs, stainless steel sheets, rock wool composite panels, aluminum honeycomb panels, and MDF boards.

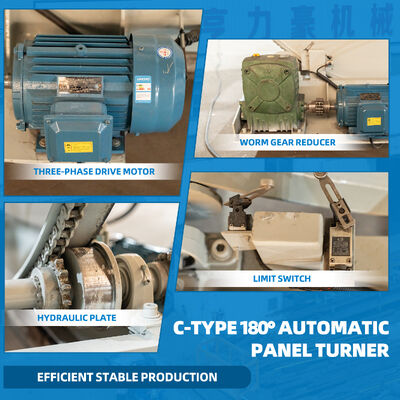

Maintenance and Upkeep: Modular transmission components allow individual disassembly and inspection. Consumable rubber-coated rollers support individual replacement. Centralized electric control components facilitate troubleshooting.

Technical Specifications

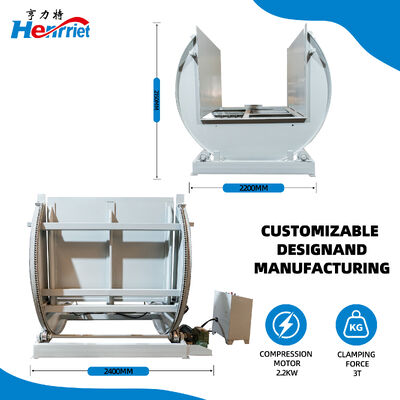

Device dimensions	Width 1500mm, Length 3200mm, Height 1600mm
Effective width of roller surface	800mm (±50)
Working height	900mm
Flip drive motor power	2.2KW
Roller drive motor power	1.5KW
Equipment efficiency	3-4 cycles per minute
Applicable maximum sheet specifications	3200×700mm
Minimum applicable board specifications	500×500mm
Equipment weight	1.3T
Equipment load capacity	0-200KG (Efficiency decreases with heavier load)
Rubber roller diameter	54mm
Roller spacing	180mm
Distance between upper and lower roller vertices	100mm

Company Advantages

Two In-House Factories: Competitive pricing and faster delivery with no intermediaries
Custom-Built Solutions: 30+ senior engineers design machines tailored to your production needs, space, and budget
Global Certification: CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations
Proven Experience: Shipped to 50+ countries with 1000+ projects, engineered for long-term heavy-duty use

Service Support

Warranty: 1 year
Packaging: Film with foam protection
24-hour customer service hotline with 48-hour response to repair needs
Free video training for operators and process guidance manuals
Lifetime technical support and software upgrade services

Product Image

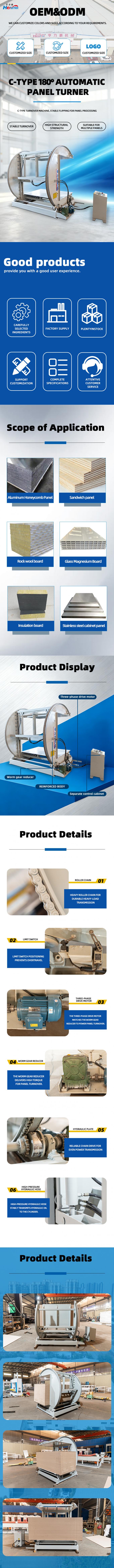

Cylindrical 180° Automatic Panel Turner

Company Profile

Company Overview

Corporate Advantages

Visitors and Communication

Production Level and Manufacturing Process

Exhibition and Exchange

Packaging and Logistics

Certificates and Honors

Frequently Asked Questions

Who are we?
Based in Guangdong, China, established in 2016 with over 110 employees. Market distribution includes Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%).

Why should you buy from us instead of other suppliers?
With over 20 years in the wooden machinery industry, we operate two factories covering 20,000+ square meters. Our 130+ professional employees include a senior design team of 30+ engineers providing custom machine design, installation, commissioning, and operator training.

How do we guarantee quality?
Quality assurance includes: confirming machine functions through customer communication, engineer-designed machine drawings, on-site guidance for operations, full process testing by quality inspectors, and final inspection before shipment.

What products can you buy from us?
Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and various non-standard automated production lines.

What services do we provide?
Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Payment Currency: USD, EUR, CNY. Payment Types: T/T, L/C, PayPal, Western Union, Cash. Languages: English, Chinese, Spanish, Japanese, Russian, Hindi.
