180° Rotation Sheet Turner with 800mm Roller Width and 2.2KW Flip Drive for Panel Flipping

180° Rotation Sheet Turner with 800mm Roller Width and 2.2KW Flip Drive for Panel Flipping

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Device Dimensions:

Width 1500mm, Length 3200mm, Height 1600mm

Effective Width Of Roller Surface:

800mm (±50)

Working Height:

900mm

Flip Drive Motor Power:

2.2KW

Roller Drive Motor Power:

1.5KW

Equipment Efficiency:

3-4 Cycles Per Minute

Applicable Maximum Specifications For Sheet Metal:

3200*700mm

Minimum Specifications For Applicable Board Materials:

500*500mm

Equipment Weight:

1.3T

Equipment Load Capacity:

0-200KG (Efficiency Decreases With Heavier Load)

Rubber Roller Diameter:

54mm

Roller Spacing:

180mm

Distance Between The Vertices Of The Upper And Lower Rollers:

100mm

Packaging Details:

Film with Foam

Highlight:

180° Rotation Sheet Turner

800mm Roller Width Panel Turner

2.2KW Flip Drive Flipping Equipment

Product Description

180° Cylindrical Frame Sheet Turner | Flipping Equipment for MgO Board, Slab, Stainless Steel, Rock Wool, Aluminum Honeycomb & MDF

Product Overview

The cylindrical 180° automatic panel turner features an annular cylindrical frame that provides a solid and stable main structure. Equipped with a rubber-coated roller conveying system, it efficiently rotates panels through 180°. The unit operates with two independent drive motors—one for flipping action and another for sheet conveying—ensuring coordinated feeding, positioning, turning, and discharging. Its compact layout saves valuable floor space, making it ideal for station-to-station connection in panel processing lines.

Key Features

Superior Production Capacity: Automates panel flipping into a continuous process, reducing manual labor. Coordinated flipping and conveying ensure stable cycle rhythm and minimize interruptions during material transfer.
Security Guarantee: Enclosed annular frame limits operator access to rotating areas. Separate drive mechanisms with interlocking control reduce mechanical interference risks. Rubber-coated rollers prevent sheet slipping and material impact.
Application Areas: Suitable for various composite panels and large rigid sheets including magnesium oxide fireproof boards, stone slabs, stainless steel sheets, rock wool insulation panels, aluminum honeycomb panels, and MDF boards.
Maintenance & Upkeep: Modular transmission components allow individual inspection without dismantling the entire frame. Wear parts like rubber-coated rollers can be replaced individually with accessible lubrication points.

Technical Specifications

Device Dimensions	Width 1500mm, Length 3200mm, Height 1600mm
Effective Width of Roller Surface	800mm (±50)
Working Height	900mm
Flip Drive Motor Power	2.2KW
Roller Drive Motor Power	1.5KW
Equipment Efficiency	3-4 cycles per minute
Applicable Maximum Sheet Specifications	3200×700mm
Minimum Applicable Board Specifications	500×500mm
Equipment Weight	1.3T
Equipment Load Capacity	0-200KG (Efficiency decreases with heavier load)
Rubber Roller Diameter	54mm
Roller Spacing	180mm
Distance Between Upper and Lower Roller Vertices	100mm

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen or markups

Custom-Built Solutions: 30+ senior engineers design machines around your production needs, floor space, and budget

Global Certification: CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations

Proven Experience: Shipped to 50+ countries with 1000+ projects, engineered for long-term heavy-duty use

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline with 48-hour response to repair needs
Free video training for operators and process guidance manuals
Lifetime technical support and software upgrade services

Product & Company Images

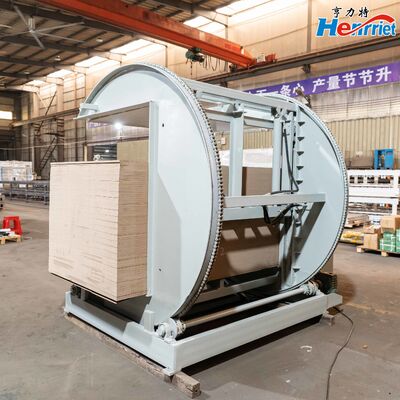

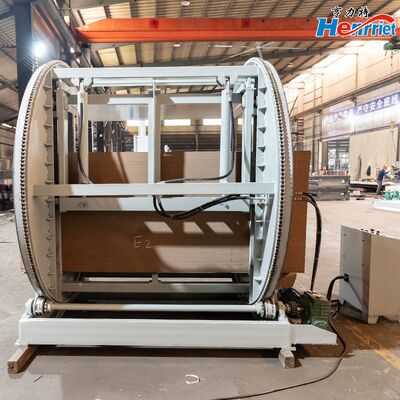

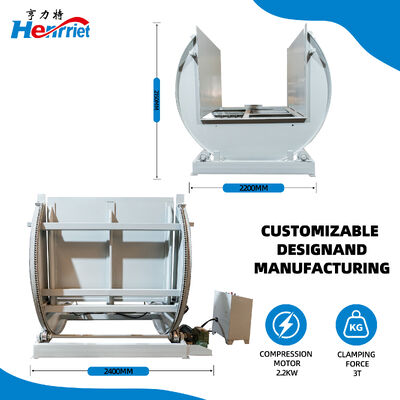

Cylindrical 180° Automatic Panel Turner

Company Overview

Corporate Advantages

Visitors and Communication

Production Level and Manufacturing Process

Exhibition and Exchange

Packaging and Logistics

Certificates and Honors

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2016, with over 110 employees. Our market distribution includes Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%).

Why should you buy from us instead of other suppliers?

With over 20 years in the wooden machinery industry, we operate two factories covering 20,000+ square meters. Our 130+ professional employees include a senior design team of 30+ engineers. We provide custom machine design, comprehensive installation, commissioning, and operator training to ensure immediate production readiness.

How do we guarantee quality?

Our quality assurance process includes: confirming machine functions through customer communication, engineer-designed machine drawings, on-site guidance for cutting/welding/assembly operations, full process testing by quality inspectors, and final inspection by engineers and project leaders before shipment.

What products can you buy from us?

We offer hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and various non-standard automated production lines.

What services do we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Types: T/T, L/C, PayPal, Western Union, Cash. Languages Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
