Industrial Hydraulic Perforated Cold Press with 50 Tons Maximum Pressure and 4500mm Processing Length for Mountable Heating Rods in Honeycomb Panel Production

Industrial Hydraulic Perforated Cold Press with 50 Tons Maximum Pressure and 4500mm Processing Length for Mountable Heating Rods in Honeycomb Panel Production

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Top-down Pressing

Maximum Pressure:

50 Tons

Workbench Dimensions:

4500mm*2500mm

Drilling Holes On The Workbench:

30mm Square Holes On Upper And Lower Platens, 80mm Pitch Between Holes

Maximum Processing Length:

4500mm

Maximum Processing Width:

2500mm

Pressure Plate Spacing:

1300mm

Specification And Quantity Of Oil Cylinders:

6 Pcs, 70mm × 100mm

Hydraulic System Power:

5.5KW

Overall Dimensions:

Overall Dimension: 5000mm × 2500mm × 3700mm

Packaging Details:

Film with Foam

Highlight:

50 tons maximum pressure Hydraulic Cold Press

4500mm maximum processing length Perforated Cold Press

Mountable heating rods Honeycomb Panel Press

Product Description

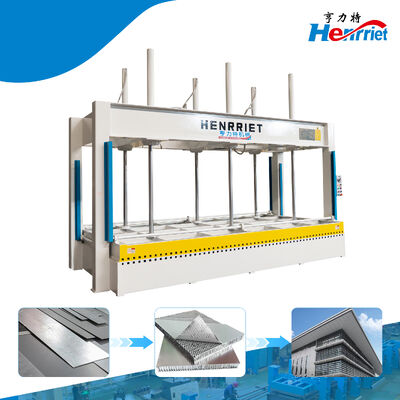

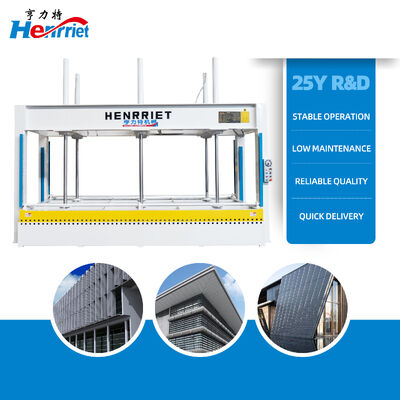

Industrial Hydraulic Perforated Cold Press with Heating Rod Positions for Heated Forming of Interior Decor Honeycomb Panels

Product Overview

This cold press machine adopts a top-down hydraulic design built around a sturdy gantry-style frame. Its worktable comes factory-prefabricated with a regular array of mounting holes, allowing heating rods to be installed for supplementary thermal assistance during panel pressing operations. A multi-cylinder synchronized pressing mechanism works together with a standalone hydraulic power station to distribute pressure evenly across the platen. The perforated worktable serves as the key distinguishing element of this equipment, enabling operators to position heating rods based on specific process needs and manage temperature conditions throughout the lamination cycle.

Key Features

Superior Production Capacity: The equipment is configured with a large-scale workbench that accommodates big-format panels in a single pressing cycle, eliminating the need to divide workpieces into sections. Its synchronized multi-cylinder drive applies relatively balanced pressure across the full table surface, making it suitable for ongoing production of sizable composite panels. The pre-drilled table holes offer convenient placement of heating rods, integrating thermal treatment directly into the pressing process. The hydraulic system responds steadily, and pressing cycles can operate in succession to align with the working tempo of large-panel production lines.
Security Guarantee: Hydraulic pressure monitoring components are installed throughout the machine, and the control panel is mounted at the side, allowing operators to observe instrument readings and manage start/stop functions from outside the machine body. The welded gantry frame is designed to handle loads under rated operating pressure. Integrated safety structures restrict excessive travel of the pressure plate, lowering the likelihood of mechanical hazards resulting from improper operation. Hydraulic lines employ standard industrial connectors to lessen the possibility of leakage. Reserved clearance around heating rod installation areas helps reduce the chance of unintended contact between hot components and the frame or panels.
Application Areas: This perforated cold press is intended for thermally assisted pressing and forming of honeycomb panels and a range of sandwich composite materials, along with adhesive bonding and consolidation of various door panel types. It is applied in workshops engaged in architectural decorative panels, composite door panels and metal composite panels. The machine addresses large-format composite workpieces that call for heating support during pressing, and fits the production of panels used in interior decoration and exterior cladding.
Maintenance and Upkeep: The hydraulic power unit and cylinders are arranged externally, facilitating routine inspection. Operators can periodically examine hydraulic oil quality and check seal condition for signs of wear. Control elements are grouped in a central location, so fault diagnosis can be carried out without dismantling large portions of the frame. Heating rods can be removed from the table holes with relative ease for regular checking or replacement. Scheduled upkeep covers periodic hydraulic oil changes, clearing debris from table holes, and re-tightening fasteners at set intervals. Standardized servicing procedures contribute to reduced equipment downtime.

Technical Specifications

Specification	Details
Pressure Mode	Top-down pressing
Maximum Pressure	50 tons
Workbench Dimensions	4500mm × 2500mm
Drilling Holes	30mm square holes on upper and lower platens, 80mm pitch between holes
Maximum Processing Length	4500mm
Maximum Processing Width	2500mm
Pressure Plate Spacing	1300mm
Oil Cylinders	6 pcs, 70mm × 100mm
Hydraulic System Power	5.5KW
Overall Dimensions	5000mm × 2500mm × 3700mm

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen or markups.
Custom-Built Solutions: 30+ senior engineers design machines around your production needs, floor space, and budget.
Global Certification: CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations.
Proven Experience: Shipped to 50+ countries with 1000+ custom designs, engineered for long-term, heavy-duty use.

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48 hours
Free video training for operators and process guidance manuals
Lifetime technical support and software upgrade services

Product Image

Company Introduction

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2016. We sell to Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees.

Why should you buy from us not from other suppliers?

More than 20 years in wooden machinery industry. We have two factories covering over 20,000 square meters with 130+ professional employees, including 30+ engineers. We provide custom machine design, comprehensive installation, commissioning, and operator training.

How can we guarantee quality?

Quality assurance through customer communication, engineer-designed drawings, on-site guidance for operations, full process testing, and final inspection before shipment.

What can you buy from us?

Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash. Languages: English, Chinese, Spanish, Japanese, Russian, Hindi.
