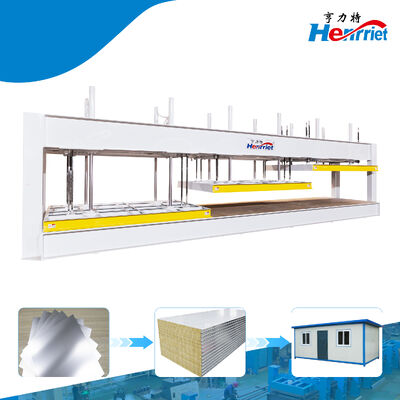

Heavy Duty 3-Stage Cold Press with 50 Tons Maximum Pressure and 2200mm Processing Width for Sandwich Composite Panels

Heavy Duty 3-Stage Cold Press with 50 Tons Maximum Pressure and 2200mm Processing Width for Sandwich Composite Panels

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Top-down Pressing

Maximum Pressure:

50 Tons

Workbench Dimensions:

10000mm*2200mm

Maximum Processing Length:

3*3200mm

Maximum Processing Width:

2200mm

Maximum Processing Thickness:

1300mm

Pressure Plate Opening Distance:

1300mm

Specification And Quantity Of Oil Cylinders:

12pcs*70MM*100mm

Hydraulic System Power:

7.5Kw

Packaging Details:

Film with Foam

Highlight:

50 tons Maximum Pressure Cold Press

2200mm Maximum Processing Width Lamination Press

3-Stage Pressing Sandwich Composite Panel Press

Product Description

Heavy Duty 3-Stage Cold Press, Lamination Press for Large-format Multi-layer Sandwich Composite Panels

This 3-section cold press features an upward hydraulic pressing structure. Equipped with a heavy welded frame and a long split pressing beam layout, the machine is built with multiple independent pressing zones. Driven by hydraulic cylinders, it enables segmented synchronous pressing for long panels. The rigid frame can support continuous pressure holding cycles over long operation hours.

Key Features

Superior Production Capacity: Three independent pressing beams support simultaneous processing of multiple workpieces. Each separate pressing zone operates without mutual interference, and can meet the processing requirements of ultra-long panels.
Security Guarantee: The machine frame is welded from thickened section steel to reduce the possibility of structural deformation. The hydraulic system is equipped with pressure stabilizing components to ensure stable output and improve safety during operation.
Application Areas: This equipment is designed for the cold bonding processes of honeycomb panels and sandwich composite materials, and also fits the pressing and shaping operations of various door panels.
Maintenance and Upkeep: The hydraulic components adopt an external modular layout, which simplifies routine inspection and part replacement. The open frame structure reduces cleaning difficulty and helps lower component wear.

Technical Specifications

Pressure Mode	Top-down pressing
Maximum Pressure	50 tons
Workbench Dimensions	10000mm × 2200mm
Maximum Processing Length	3 × 3200mm
Maximum Processing Width	2200mm
Maximum Processing Thickness	1300mm
Pressure Plate Opening Distance	1300mm
Specification and Quantity of Oil Cylinders	12 units × 70MM × 100mm
Hydraulic System Power	7.5Kw

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups.
Expert Engineering Team: 30+ senior engineers provide custom-built solutions for your production needs.
Global Certification: CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations.
Proven Experience: Over 50 countries served with 1000+ custom designs and projects completed.

Service Support

Warranty: 1 year
Packaging: Film with foam protection
24-hour customer service hotline with 48-hour response for repair needs
Free video training for operators and process guidance manuals
Lifetime technical support and software upgrade services

Product Image

Company Overview

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2016. We serve Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees.

Why should you buy from us not from other suppliers?

With more than 20 years in the wooden machinery industry, we operate two factories covering over 20,000 square meters. Our 130+ professional employees include a senior design team of 30+ engineers. We provide custom machine design drawings, comprehensive installation, commissioning, and operator training to ensure immediate production upon arrival.

How can we guarantee quality?

We confirm machine functions through customer communication, complete custom machine drawing design, provide engineer on-site guidance for cutting, welding, and assembly operations, conduct full process testing of each machine's functionality, and perform final inspection before shipment.

What can you buy from us?

Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines of various specifications.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash. Languages Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
