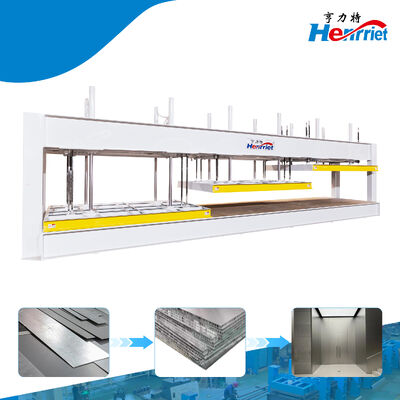

3-Section Hydraulic Cold Press Machine with 50 Tons Maximum Pressure and 2200mm Processing Width

3-Section Hydraulic Cold Press Machine with 50 Tons Maximum Pressure and 2200mm Processing Width

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Top-down Pressing

Maximum Pressure:

50 Tons

Workbench Dimensions:

10000mm*2200mm

Maximum Processing Length:

3*3200mm

Maximum Processing Width:

2200mm

Maximum Processing Thickness:

1300mm

Pressure Plate Opening Distance:

1300mm

Specification And Quantity Of Oil Cylinders:

12pcs*70MM*100mm

Hydraulic System Power:

7.5Kw

Packaging Details:

Film with Foam

Highlight:

50 tons maximum pressure Hydraulic Cold Press Machine

2200mm maximum processing width Industrial Cold Press

3-section pressing Cold Press Machine

Product Description

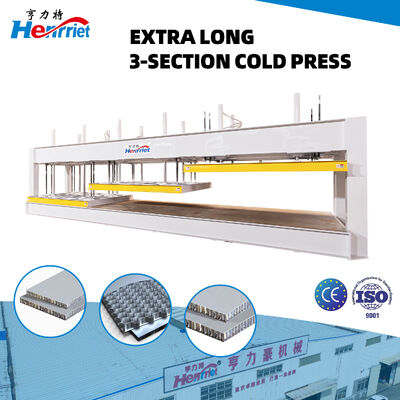

Long Workbench 3-Section Hydraulic Cold Press for Continuous Pressure Holding of Curtain Wall Honeycomb Panels

Product Overview

This 3-section cold press utilizes an upward hydraulic pressing mechanism. The equipment features a robust welded frame and long split pressing beam layout with multiple independent pressing zones. Driven by hydraulic cylinders, it executes segmented synchronous pressing for long panels. The rigid frame is engineered to withstand continuous pressure holding cycles.

Key Features

Superior Production Capacity: Three independent pressing beams enable simultaneous processing of multiple workpieces. Separate pressing zones operate without mutual interference, ideal for ultra-long panel processing.
Security Guarantee: Machine frame welded from thickened section steel minimizes structural deformation. Hydraulic system equipped with pressure stabilizing components ensures consistent output and operational safety.
Application Areas: Designed for cold bonding processes of honeycomb panels and sandwich composite materials, as well as pressing and shaping of various door panels.
Maintenance and Upkeep: External modular layout of hydraulic components simplifies inspection and replacement. Open frame structure facilitates cleaning and reduces component wear.

Technical Specifications

Specification	Details
Pressure Mode	Top-down pressing
Maximum Pressure	50 tons

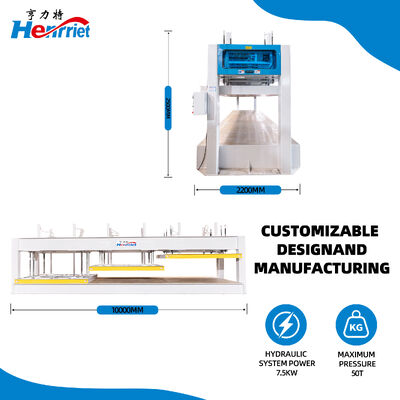

Workbench Dimensions	10000mm × 2200mm
Maximum Processing Length	3 × 3200mm
Maximum Processing Width	2200mm
Maximum Processing Thickness	1300mm
Pressure Plate Opening Distance	1300mm
Specification and Quantity of Oil Cylinders	12 units × 70MM × 100mm
Hydraulic System Power	7.5Kw

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups.
Expert Engineering Team: 30+ senior engineers provide custom-built solutions for your production needs.
Global Certification: CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations.
Proven Experience: Over 50 countries served with 1000+ custom designs and projects completed.

Service Support

Warranty: 1 year
Packaging: Film with foam protection
24-hour customer service hotline with 48-hour response for repair needs
Free video training for operators and process guidance manuals
Lifetime technical support and software upgrade services

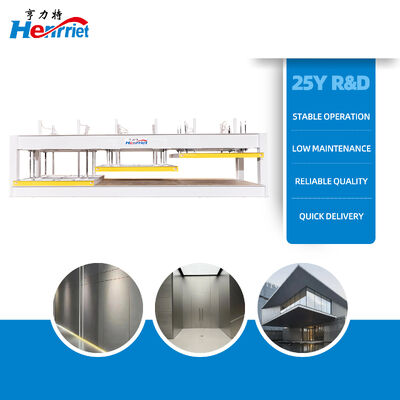

Product Image

Company Introduction

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2016. We serve Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees.

Why should you buy from us not from other suppliers?

With more than 20 years in the wooden machinery industry, we operate two factories covering over 20,000 square meters. Our 130+ professional employees include a senior design team of 30+ engineers. We provide custom machine design drawings, comprehensive installation, commissioning, and operator training to ensure immediate production upon arrival.

How can we guarantee quality?

We confirm machine functions through customer communication, complete custom machine drawing design, provide engineer on-site guidance for cutting, welding, and assembly operations, conduct full process testing of each machine's functionality, and perform final inspection before shipment.

What can you buy from us?

Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines of various specifications.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash. Languages Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
