Automatic Glue Dispenser with PLC Touch-Screen Control and Roller Conveyor for Adjustable Mixing Ratio 2:1-5:1

Automatic Glue Dispenser with PLC Touch-Screen Control and Roller Conveyor for Adjustable Mixing Ratio 2:1-5:1

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Overall Dimensions:

1500*880*1700mm

Product Width:

200mm-1300mm (customizable)

Coating Speed:

1-12 Meters/minute (adjustable)

Environmental Requirements:

Temperature 5-45 ℃, Humidity ≤ 80%

Control Method:

PLC Programming+touch Screen

Glue Consumption Per Square Meter:

Adjustable From 200g To 450g

Adhesive Viscosity:

4000-12000CPS (customizable)

Ratio Adjustment:

The Mixing Ratio Can Be Adjusted Between 2:1-5:1

Conveyor Line:

Width 1300mm, Height 850mm ± 50mm, Length Customizable

Effective Volume Of AB Tanks:

40L (automatic Feeding)

Power:

5.75kw

Weight (approximately):

500 KG

Gel Dripping Length:

300mm-4500mm (customizable)

Gel Dripping Width:

200-1300mm (customizable)

Temperature Adjustment Range Of Material A Tank:

Adjustable From 20-30 ℃

Packaging Details:

Film with Foam

Highlight:

PLC Touch-Screen Control Glue Dispenser

Roller Conveyor Gluing Equipment

Adjustable Mixing Ratio 2:1-5:1 Glue Spraying Machine

Product Description

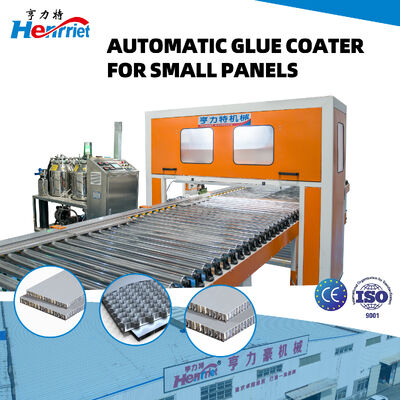

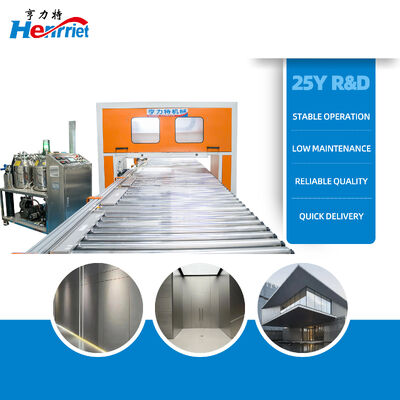

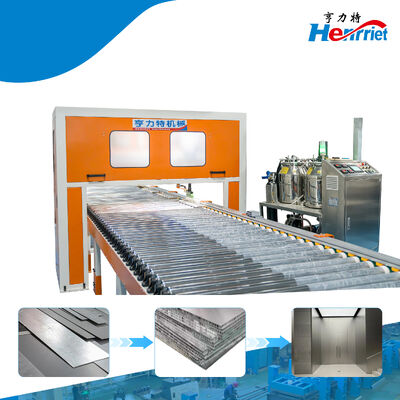

Honeycomb Panel Glue Dispenser for Small Panels

PLC Touch-Screen Control, Roller Conveyor, Automatic Gluing Equipment for Aluminum Honeycomb Composite Panels

Product Overview

This automatic glue dispensing unit is designed for the lamination process of small-to-medium-sized panels. It features an industrial frame-type main body with an integrated roller conveyor. The operation interface and the gluing zone are arranged separately, and the overall design is compact and well organized, facilitating flexible placement within factory settings.

The machine performs automatic proportioning and application of two-component adhesives, replacing traditional manual gluing methods. It is compatible with two-part adhesives of various viscosity levels. A built-in PLC and touch-screen control architecture enables all operational settings to be configured through the human-machine interface. The system supports continuous gluing for small panels of varying dimensions and meets the adhesive application requirements in sandwich panel production.

Key Features

Superior Production Capacity: Adjustable dispensing speed, adhesive mixing ratio, and glue consumption per unit area. Customizable conveyor structure for multiple panel sizes. Automated process reduces variability and ensures consistent coating.
Security Guarantee: Designed to industrial safety standards with partitioned electrical components. Physical barrier between operator station and dispensing zone. Basic fault indication with alert messages on touch screen.
Application Areas: Suitable for gluing processes before panel lamination, including honeycomb panels and composite bonding for various door products.
Maintenance and Upkeep: Easy cleaning of dispensing nozzles and conveyor surfaces. Periodic inspection of adhesive pipelines and scheduled checks on drive assemblies and electrical components.

Technical Specifications

Specification	Details
Gel Dripping Width	200-1300mm (customizable)
Coating Speed	1-12 meters/minute (adjustable)
Gel Dripping Length	300mm-4500mm (customizable)
Product Width	200mm-1300mm (customizable)
Ratio Adjustment	Mixing ratio adjustable between 2:1-5:1
Environmental Requirements	Temperature 5-45 ℃, humidity ≤ 80%
Effective Volume of AB Tanks	40L (automatic feeding)
Glue Consumption per Square Meter	Adjustable from 200g to 450g
Conveyor Line	Width 1300mm, height 850mm ± 50mm, length customizable
Temperature Adjustment Range of Material A Tank	Adjustable from 20-30 ℃
Adhesive Viscosity	4000-12000CPS (customizable)
Power	5.75kw
Control Method	PLC programming + touch screen

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups
30+ Senior Engineers: Custom-built solutions designed around your production needs
CE & ISO 9001 Certified: Global-ready equipment meeting international standards
50+ Countries, 1000+ Projects: Proven experience in design and manufacturing

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline
Respond to repair needs within 48 hours
Free video training for operators
Process guidance manuals provided
Lifetime technical support and software upgrade services

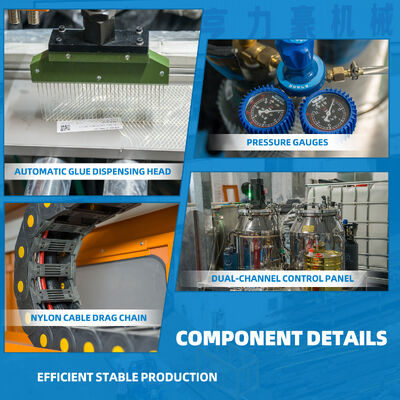

Product Image

Company Introduction

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2016. We sell to Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees.

Why should you buy from us not from other suppliers?

With more than 20 years in the wooden machinery industry, we have two factories covering over 20,000 square meters. Our team includes over 130 professional employees, including a senior design team of 30+ engineers. We provide custom machine design drawings, comprehensive installation, commissioning, and operator training to ensure immediate production upon arrival.

How can we guarantee quality?

We confirm required functions through customer communication, complete machine drawing design according to requirements, provide on-site guidance for cutting, welding, and assembly operations, conduct full process testing of each machine's functionality, and perform final inspection before shipment.

What can you buy from us?

We offer hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines of various specifications.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash. Languages Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
