50‑Ton Single‑Layer Aluminum Honeycomb Small‑Size Board Hot Press, 3000×1500mm Workbench, Thermal Oil Heating for Honeycomb Panel Lamination

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Top‑down Pressing

Maximum Pressure:

50Ton

Workbench Dimensions:

3000mm*1500mm

Hot Press Plate Size:

3000mm*1500mm*2 Pieces

Actual Composite Board Size:

2800mm*1350mm

Hot Pressed Plate Thickness:

42mm

Workbench Reducer:

1.5kW × 1 Unit

Number Of Layers:

1‑layer

Spacing:

200mm

Heating Circulation Pump Motor:

1.5kw

Oil Cylinder And Quantity:

4 Pcs 70mm×200mm (Piston Cylinders)

Working Pressure Of Hydraulic System:

50T

Hydraulic System Power:

Motor: 4kW

Heating System:

Electric Heating Heat‑transfer Medium: Thermal Oil (supplied With Thermal Oil)

Maximum Temperature:

100℃

Total Power:

44.5kw

Packaging Details:

Film with Foam

Highlight:

50Ton Maximum Pressure Hot Press Machine

3000mm*1500mm Workbench Hot Press Machine

Electric Heating Thermal Oil Hot Press Machine

Product Description

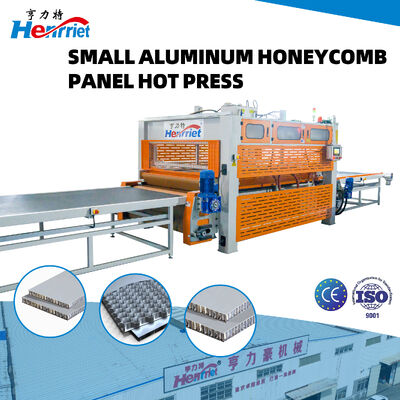

Aluminum Honeycomb Small-Size Board Hot Press | Thermal Bonding Equipment for Honeycomb Panels

Product Overview

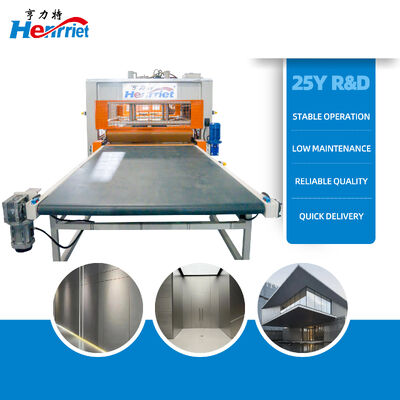

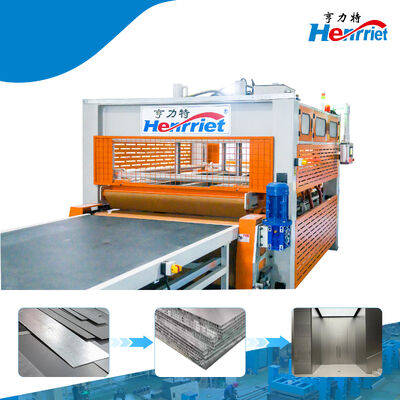

Henrriet aluminum honeycomb small-size board hot press is a single-layer hydraulic thermal bonding equipment. It adopts a modular frame structure, equipped with protective safety grids and feeding conveyor platform for compact layout.

Relying on top-down hydraulic pressing structure and thermal oil circulating heating system, the machine completes composite bonding process, suitable for thermal lamination of medium and small-format aluminum honeycomb panels. It realizes adhesion and curing between honeycomb core and surface skins for steady composite operations.

Integrated with feeding conveyor mechanism, workpieces can be smoothly transported into pressing station. Built-in protective components keep operational visibility for operators to monitor internal pressing status.

Key Features

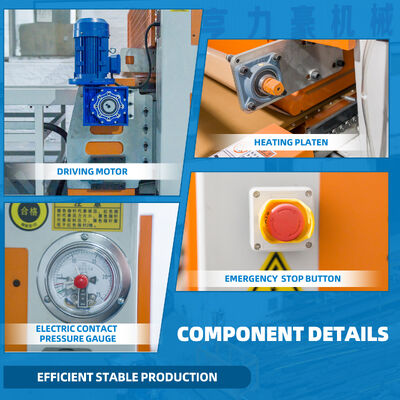

Superior Production Capacity: Engineered for batch thermal lamination of small-format panels with coordinated pressing and heating systems for reduced process intervals. Features even pressure distribution and homogeneous heat output for stable bonding conditions.
Security Guarantee: Metal safety grids surround pressing zone with emergency stop components. Hydraulic system includes pressure feedback mechanism and heating circulation monitoring for stable performance.
Application Areas: Serves honeycomb composite panel manufacturing for architectural decorative panels, cabinet and furniture applications, transportation interiors, and small-medium size sandwich honeycomb core panels.
Maintenance and Upkeep: Regular inspection of hydraulic systems, thermal oil loops, conveyor components, and safety features to ensure optimal performance and protection.

Technical Specifications

Specification	Details
Pressure Mode	Top-down pressing
Maximum Pressure	50Ton
Workbench Dimensions	3000mm * 1500mm
Hot Press Plate Size	3000mm * 1500mm * 2 pieces
Actual Composite Board Size	2800mm * 1350mm
Hot Pressed Plate Thickness	42mm
Workbench Reducer	1.5kW * 1 unit
Number of Layers	1-layer
Spacing	200mm
Heating Circulation Pump Motor	1.5kw
Oil Cylinder and Quantity	4 pcs 70mm*200mm (Piston Cylinders)
Working Pressure of Hydraulic System	50T
Hydraulic System Power	Motor: 4kW
Heating System	Electric heating heat-transfer medium: thermal oil (supplied with thermal oil)
Maximum Temperature	100℃
Total Power	44.5kw

Company Advantages

Two In-House Factories = Better Prices, Faster Delivery: Direct manufacturing with no middlemen, full control over production speed and costs.
More than 30 Senior Engineers, Custom-Built for You: R&D team designs machines around your production needs, floor space, and budget.
CE & ISO 9001 Certified, Global-Ready: Meets EU CE safety standards and ISO 9001 quality requirements for international compliance.
More than 50 Countries, 1000+ Projects: Proven experience with equipment engineered for long-term, heavy-duty use in real factories worldwide.

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48 hours
Free video training for operators and provision of process guidance manuals
Lifetime technical support and software upgrade services

Product Image

Company Introduction

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2016, selling to Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), Eastern Asia (2.00%). We have over 110 employees.

Why should you buy from us not from other suppliers?

More than 20 years in wooden machinery industry. We have two factories covering an area of over 20,000 square meters. We have over 130 professional employees, including a senior design team consisting of over 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We provide comprehensive installation, commissioning, and operator training to ensure that your machine can be put into production immediately upon arrival.

How can we guarantee quality?

Confirm the required functions of the machine through communication with the customer; Our engineers complete the machine drawing design according to customer requirements; Engineers provide on-site guidance for a series of operations such as cutting, welding, and assembly of machines; Quality inspectors conduct full process testing of the functionality of each machine; Engineers and project leaders will conduct another inspection before shipment.

What can you buy from us?

Hydraulic cold presses, Single-layer and multi-layer hot presses, Glue spreading machines, Automatic feeder, Turnover machine, Automatic palletizer, Non-standard automated production lines of various specifications.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash; Language Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
