Hydraulic Cold Press Machine with 2500mm*1400mm Pressure Plate and 20T Maximum Pressure for Honeycomb Panel Lamination

Hydraulic Cold Press Machine with 2500mm*1400mm Pressure Plate and 20T Maximum Pressure for Honeycomb Panel Lamination

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum pressure:

20T

Pressure plate size:

2500mm*1400mm

Maximum processing length:

2500mm

Maximum processing width:

1400mm

Pressure Plate Opening Distance:

750mm

Oil cylinder specifications:

2 Cylinders （90mm*60mm）

Power:

4KW

Overall dimensions:

3000*1400*2600mm

Inclined Belt Conveyor Frame Dimension:

3200mm*2500mm

Inclined Belt Conveyor Frame Power:

750W

Inclined Belt Conveyor Frame Voltage:

380V/3‑Phase/50Hz

Packaging Details:

Film with Foam

Highlight:

2500mm*1400mm Pressure Plate Hydraulic Cold Press

20T Maximum Pressure Cold Press Machine

Integrated Conveyor System Honeycomb Panel Press

Product Description

Large-Table Hydraulic Cold Press with Conveyor for Honeycomb Panel Lamination & Gluing

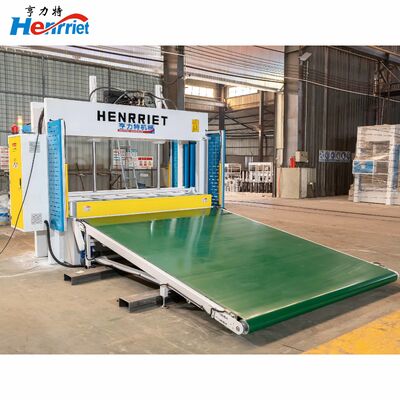

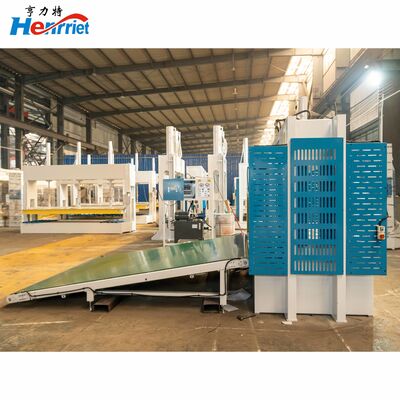

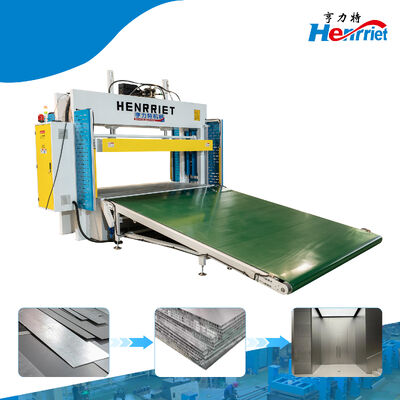

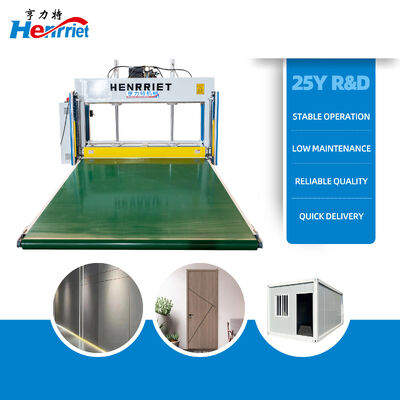

This belt-integrated cold press equipment incorporates an inclined conveyor frame into its structure, simplifying the large-panel loading process. The main unit features a rigid frame with side protective guards, and the feeding section extends on an incline, allowing panel infeed and cold pressing to be carried out as a combined sequence.

Key Features

Superior Production Capacity:

The integrated belt conveyor streamlines panel feeding. Large-format boards can be placed directly onto the inclined loading table and carried into the pressing zone, reducing intermediate transfer steps and minimizing surface damage. The conveyor's travel range corresponds to the pressing station space, allowing connection with upstream cutting and gluing units.

Security Guarantee:

Both sides feature solid protective guards covering cylinder and pressure plate movement zones. Mechanical limit stops prevent panel displacement during feeding, and standard industrial warning signs identify hazardous areas.

Application Areas

Gluing and shaping of honeycomb composite panels
Pressing of wooden doors, cabinet door panels and furniture boards
Cold bonding of fire-resistant panels such as magnesium oxide boards
Pressing of decorative panels and wood-based panels

The equipment supports standalone operation and can be integrated into panel production lines alongside gluing machines and panel turners.

Technical Specifications

Specification	Value
Maximum pressure	20T
Pressure plate size	2500mm × 1400mm
Maximum processing length	2500mm
Maximum processing width	1400mm
Pressure plate opening distance	750mm
Oil cylinder specifications	2 cylinders (90mm × 60mm)
Power	4KW
Overall dimensions	3000 × 1400 × 2600mm
Inclined belt conveyor frame dimension	3200mm × 2500mm
Inclined belt conveyor frame power	750W
Inclined belt conveyor frame voltage	380V/3-Phase/50Hz

Company Advantages

Two In-House Factories

Better prices, faster delivery with no middlemen or markups. Full control over production speed and costs.

30+ Senior Engineers

Custom-built solutions designed around your production needs, floor space, and budget.

CE & ISO 9001 Certified

Full compliance with international electrical, mechanical, and safety regulations.

Global Experience

50+ countries, 1000+ projects with equipment engineered for long-term, heavy-duty use.

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline
Respond to repair needs within 48 hours
Free video training for operators
Process guidance manuals provided
Lifetime technical support and software upgrades

Product Image

Frequently Asked Questions

Who are we?

Based in Guangdong, China since 2016. We serve Domestic Market (55%), Africa (20%), South Asia (9%), Central America (6%), Oceania (5%), South America (3%), and Eastern Asia (2%) with over 110 employees.

Why choose us over other suppliers?

20+ years in wooden machinery industry. Two factories covering 20,000+ square meters. 130+ professional employees including 30+ engineers. Custom machine design, comprehensive installation, commissioning, and operator training.

How do we guarantee quality?

Confirm machine functions through customer communication
Engineers complete machine drawing design per requirements
On-site guidance for cutting, welding, and assembly
Full process testing of each machine's functionality
Final inspection by engineers and project leaders before shipment

What products do we offer?

Hydraulic cold presses
Single-layer and multi-layer hot presses
Glue spreading machines
Automatic feeders
Turnover machines
Automatic palletizers
Non-standard automated production lines

What services do we provide?

Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery | Payment Currency: USD, EUR, CNY | Payment Type: T/T, L/C, PayPal, Western Union, Cash | Languages: English, Chinese, Spanish, Japanese, Russian, Hindi
