20T Maximum Pressure Hydraulic Cold Press Machine with 2500mm Processing Length and Integrated Conveyor Frame

20T Maximum Pressure Hydraulic Cold Press Machine with 2500mm Processing Length and Integrated Conveyor Frame

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum pressure:

20T

Pressure plate size:

2500mm*1400mm

Maximum processing length:

2500mm

Maximum processing width:

1400mm

Pressure Plate Opening Distance:

750mm

Oil cylinder specifications:

2 Cylinders （90mm*60mm）

Power:

4KW

Overall dimensions:

3000*1400*2600mm

Inclined Belt Conveyor Frame Dimension:

3200mm*2500mm

Inclined Belt Conveyor Frame Power:

750W

Inclined Belt Conveyor Frame Voltage:

380V/3‑Phase/50Hz

Packaging Details:

Film with Foam

Highlight:

20T Maximum Pressure Cold Press Machine

2500mm Processing Length Hydraulic Cold Press

Integrated Conveyor Frame Composite Panel Press

Product Description

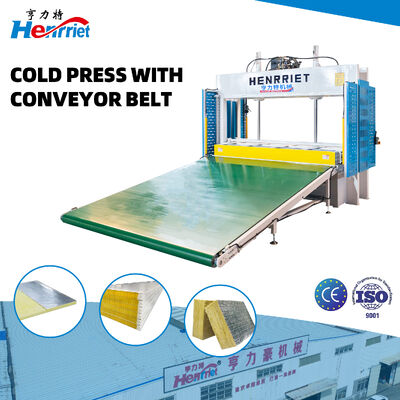

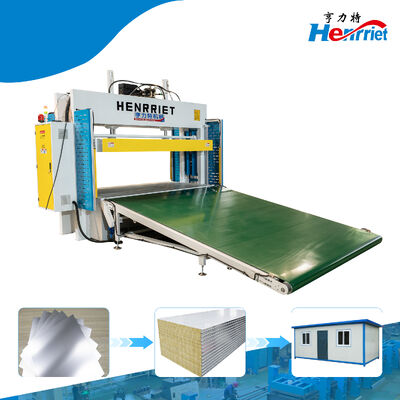

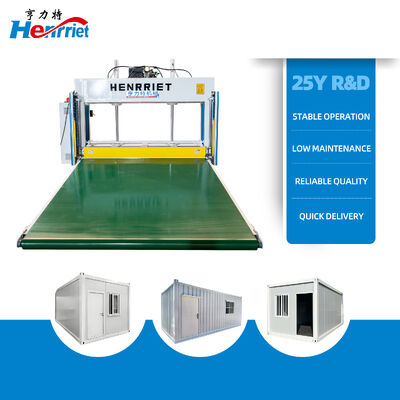

Cold Press for Sandwich Composite Pressing with Integrated Conveyor Frame

Product Overview

This conveyor-equipped cold press incorporates an inclined belt conveyor frame. The main unit features a rigid frame and side protective guards, with the feeding table set at an incline to allow integrated panel feeding and cold-pressing processing. As a hydraulic cold-press system, it combines the feed conveyor and the main press body into a single complete assembly.

Unlike conventional standalone cold presses, this machine reduces reliance on manual handling or forklift loading. Panels are transported to the pressing station through the belt mechanism, enabling in-station material transfer for ambient-temperature pressing, adhesive application, and forming steps.

Key Features

Superior Production Capacity: Integrated belt conveyor streamlines panel loading workflows. Large-format panels can be placed directly onto the inclined feeding table and carried into the pressing zone, reducing intermediate handling and potential surface damage.
Security Guarantee: Sturdy safety guards on both sides cover cylinder and pressure plate movement areas. Mechanical limit stops at conveyor table junctions reduce panel misalignment or slippage during feeding.
Application Areas: Suitable for room-temperature composite bonding of various panel materials including honeycomb composites, wooden doors, cabinet panels, furniture boards, fire-resistant panels, and decorative panels.
Maintenance and Upkeep: Comprehensive maintenance guidelines including hydraulic oil replacement, bolt retightening, conveyor belt replacement, and safety component inspections.

Technical Specifications

Maximum pressure	20T
Pressure plate size	2500mm × 1400mm
Maximum processing length	2500mm
Maximum processing width	1400mm
Pressure plate opening distance	750mm
Oil cylinder specifications	2 cylinders (90mm × 60mm)
Power	4KW

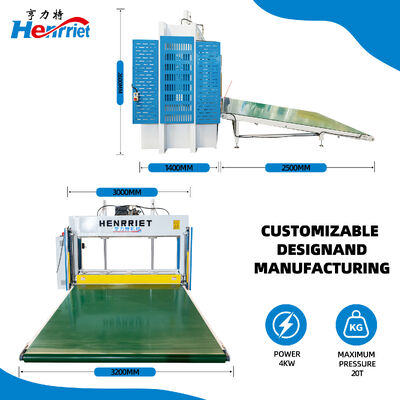

Overall dimensions	3000 × 1400 × 2600mm
Inclined belt conveyor frame dimension	3200mm × 2500mm
Inclined belt conveyor frame power	750W
Inclined belt conveyor frame voltage	380V/3-Phase/50Hz

Company Advantages

Two In-House Factories = Better Prices, Faster Delivery

We own two independent R&D and manufacturing facilities with no middlemen or markups. You buy straight from the source with full control over production speed and costs.

More than 30 Senior Engineers, Custom-Built for You

Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.

CE & ISO 9001 Certified, Global-Ready

Every machine meets EU CE safety standards and ISO 9001 quality requirements, ensuring full compliance with international electrical, mechanical, and safety regulations.

More than 50 Countries, 1000+ Projects, Experienced in Design and Manufacturing

We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48 hours
Free video training for operators and provision of process guidance manuals
Lifetime technical support and software upgrade services

Product Image

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2016. We sell to Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), Eastern Asia (2.00%). We have over 110 employees.

Why should you buy from us not from other suppliers?

More than 20 years in wooden machinery industry. We have two factories covering an area of over 20,000 square meters. We have over 130 professional employees, including a senior design team consisting of over 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We provide comprehensive installation, commissioning, and operator training to ensure that your machine can be put into production immediately upon arrival.

How can we guarantee quality?

Confirm the required functions of the machine through communication with the customer
Our engineers complete the machine drawing design according to customer requirements
Engineers provide on-site guidance for a series of operations such as cutting, welding, and assembly of machines
Quality inspectors conduct full process testing of the functionality of each machine
Engineers and project leaders will conduct another inspection before shipment

What can you buy from us?

Hydraulic cold presses
Single-layer and multi-layer hot presses
Glue spreading machines
Automatic feeder
Turnover machine
Automatic palletizer
Non-standard automated production lines of various specifications

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash
Language Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi
