10-Layer Hydraulic Hot Press Machine with 2500×1300mm Pressing Platform and 100T Maximum Pressure for Composite Door Processing

10-Layer Hydraulic Hot Press Machine with 2500×1300mm Pressing Platform and 100T Maximum Pressure for Composite Door Processing

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Top‑down Pressing Type

Number Of Layers:

10‑layer

Pressure Plate Size:

2500mm×1300mm×42mm, 11 Pcs (drilled Solid Steel Plates)

Pressure Plate Spacing:

0‑70mm (high‑temperature Adhesive Film Fitted For Each Layer)

Maximum Temperature:

150℃

Maximum Pressure:

100T

Number Of Oil Cylinders:

4 Cylinders (90mm×125mm)

Hydraulic System Power:

5.5KW

Oil Pump Motor Power:

3KW

Heating Method:

Electric Heating

Heating Power:

90KW

Overall Dimensions:

Overall Dimension: Approx. L3700mm × W1980mm × H3600mm

Packaging Details:

Film with Foam

Highlight:

10-layer Hot Press Machine

2500×1300mm Pressing Platform Laminating Press

100T Maximum Pressure Hydraulic Hot Press

Product Description

10-Layer Door Panel Hot Press with 2500×1300mm Pressing Platform

Product Overview

The 10-layer laminating press is a multi-layer hydraulic press specifically designed for panel laminating and hot-pressing applications. Its vertical construction accommodates multiple press plates within a compact footprint, with hydraulic power providing pressing force and electric heating supplying the necessary temperature for panel lamination.

The equipment features an upright frame with a stacked pressing zone facing the operator, an electrical control cabinet positioned above the working zone, and a side-mounted hydraulic power pack. This layout ensures practical operation, visual inspection, and organized day-to-day servicing.

Key Features

Superior Production Capacity: Ten-daylight layout enables multi-layer panel pressing, allowing multiple panel stations within a single pressing cycle. This stacked arrangement is ideal for plants handling multi-layer batches efficiently.
Security Guarantee: Reliable hydraulic pressing arrangement with separate, clearly identified power pack and electrical control units. Fixed working envelope and comprehensive safety protocols ensure stable operation.
Application Versatility: Suitable for furniture boards, decorative boards, engineered wood panels, composite panels, and other flat panel stock with adjustable working parameters.
Maintenance Efficiency: Systematic upkeep focusing on hydraulic circuits, heating systems, electrical controls, platen areas, and mechanical joints with comprehensive inspection protocols.

Technical Specifications

Pressure Mode	Top-down pressing type
Number of Layers	10-layer
Pressure Plate Size	2500mm×1300mm×42mm, 11 pcs (drilled solid steel plates)
Pressure Plate Spacing	0-70mm (high-temperature adhesive film fitted for each layer)
Maximum Temperature	150℃
Maximum Pressure	100T
Number of Oil Cylinders	4 cylinders (90mm×125mm)
Hydraulic System Power	5.5KW
Oil Pump Motor Power	3KW
Heating Method	Electric heating
Heating Power	90KW
Overall Dimensions	Approx. L3700mm × W1980mm × H3600mm

Company Advantages

Direct Manufacturing: Two in-house factories ensure better prices and faster delivery with no middlemen markups
Custom Engineering: 30+ senior engineers design machines around your production needs, floor space, and budget
Global Compliance: CE & ISO 9001 certified, meeting international electrical, mechanical, and safety regulations
Proven Experience: 50+ countries, 1000+ projects with equipment engineered for long-term, heavy-duty use

Service Support

Warranty: 1 year comprehensive coverage
Packaging: Protective film with foam packaging
24-hour customer service hotline with 48-hour response to repair needs
Free video training for operators and process guidance manuals
Lifetime technical support and software upgrade services

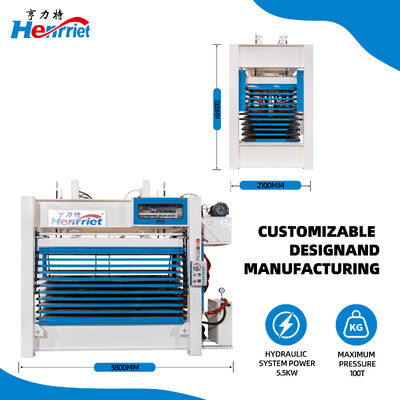

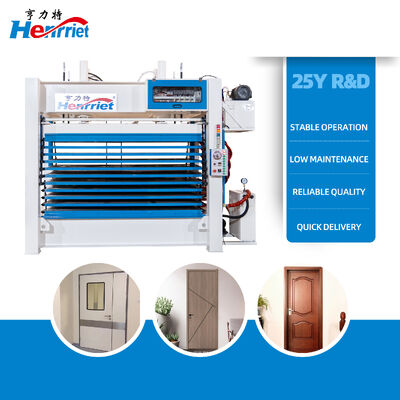

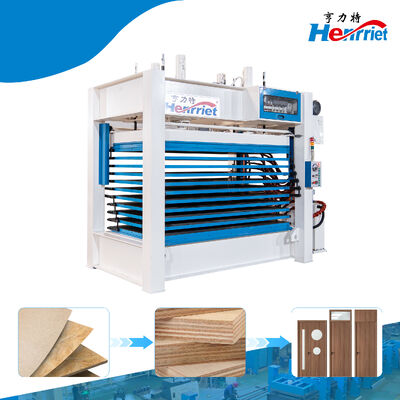

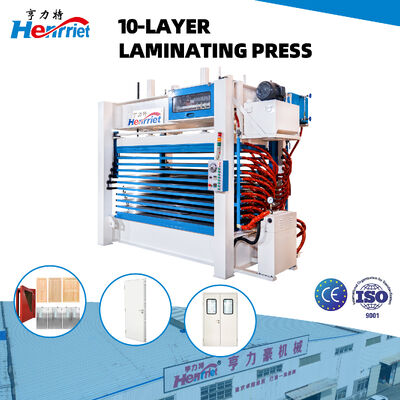

Product Image

Frequently Asked Questions

Who are we?
Based in Guangdong, China since 2016, we serve global markets including Domestic Market (55%), Africa (20%), South Asia (9%), and others. We employ over 110 professionals.

Why choose us over other suppliers?
With over 20 years in the wooden machinery industry, we operate two factories covering 20,000+ square meters. Our 130+ professional employees include a 30+ engineer design team capable of custom machine design and comprehensive manufacturing support.

How do we guarantee quality?
Comprehensive quality process including customer requirement confirmation, engineer-designed drawings, on-site manufacturing guidance, full-process functionality testing, and pre-shipment inspection.

What products do we offer?
Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and custom automated production lines.

What services do we provide?
Multiple delivery terms (FOB, CFR, CIF, EXW, Express), various payment options (T/T, L/C, PayPal, Western Union, Cash), and multilingual support (English, Chinese, Spanish, Japanese, Russian, Hindi).
