10-layer Electric Heating Hot Press Machine with 100T Maximum Pressure for Panel Laminating

10-layer Electric Heating Hot Press Machine with 100T Maximum Pressure for Panel Laminating

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Top‑down Pressing Type

Number Of Layers:

10‑layer

Pressure Plate Size:

2500mm×1300mm×42mm, 11 Pcs (drilled Solid Steel Plates)

Pressure Plate Spacing:

0‑70mm (high‑temperature Adhesive Film Fitted For Each Layer)

Maximum Temperature:

150℃

Maximum Pressure:

100T

Number Of Oil Cylinders:

4 Cylinders (90mm×125mm)

Hydraulic System Power:

5.5KW

Oil Pump Motor Power:

3KW

Heating Method:

Electric Heating

Heating Power:

90KW

Overall Dimensions:

Overall Dimension: Approx. L3700mm × W1980mm × H3600mm

Packaging Details:

Film with Foam

Highlight:

10-layer Hot Press Machine

100T Maximum Pressure Laminating Press

Electric Heating Hydraulic Press

Product Description

Multi-Layer Hot Press Machine for Panel Processing

Product Overview

The 10-layer laminating press is a multi-layer hydraulic press designed for panel laminating and hot pressing processes. Its vertical multi-layer structure arranges multiple press plates within a compact working area. The hydraulic system provides pressing force, while the electric heating system supports the thermal requirements of panel lamination processes.

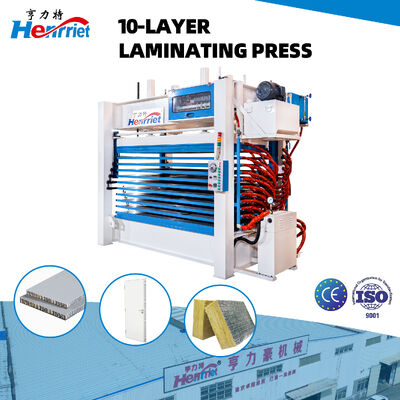

Visually, the machine features a vertical frame layout with a multi-layer pressing area at the front, an electrical control section positioned above the working area, and a hydraulic power unit arranged on the side. The overall layout provides a clear working structure for operation, inspection, and routine maintenance.

Key Features

Superior Production Capacity: The 10-layer configuration allows multiple panel positions within the same pressing cycle, making it ideal for production environments requiring organized multi-layer processing. Suitable for furniture panels, decorative panels, and other flat materials with adjustable working space between press plates.
Security Guarantee: Hydraulic pressing structure with dedicated arrangement of hydraulic power system and electrical control section. Routine operation focuses on hydraulic system, hose connections, electrical controls, and press plate working area with established safety procedures.
Application Areas: Designed for multi-layer panel pressing, hot pressing, and laminating processes. Suitable for furniture panels, decorative panels, engineered wood panels, composite panels, and other flat panel materials.
Maintenance and Upkeep: Routine maintenance focuses on hydraulic system, heating system, electrical control section, press plate working area, and mechanical connections. Regular inspection records help identify abnormal conditions early.

Technical Specifications

Pressure Mode	Top-down pressing type
Number of Layers	10-layer
Pressure Plate Size	2500mm×1300mm×42mm, 11 pcs (drilled solid steel plates)
Pressure Plate Spacing	0-70mm (high-temperature adhesive film fitted for each layer)
Maximum Temperature	150℃
Maximum Pressure	100T
Number of Oil Cylinders	4 cylinders (90mm×125mm)
Hydraulic System Power	5.5KW
Oil Pump Motor Power	3KW
Heating Method	Electric heating
Heating Power	90KW
Overall Dimensions	Approx. L3700mm × W1980mm × H3600mm

Company Advantages

Two In-House Factories = Better Prices, Faster Delivery

We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.

More than 30 Senior Engineers, Custom-Built for You

Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.

CE & ISO 9001 Certified, Global-Ready

Every machine meets EU CE safety standards and ISO 9001 quality requirements. Full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.

More than 50 Countries, 1000+ Projects, Experienced in Design and Manufacturing

We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48 hours
Free video training for operators and provision of process guidance manuals
Lifetime technical support and software upgrade services

Product Image

Company Introduction

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2016, selling to Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), Eastern Asia (2.00%). We have over 110 employees.

Why should you buy from us not from other suppliers?

More than 20 years in wooden machinery industry. We have two factories covering an area of over 20,000 square meters. We have over 130 professional employees, including a senior design team consisting of over 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We provide comprehensive installation, commissioning, and operator training to ensure that your machine can be put into production immediately upon arrival.

How can we guarantee quality?

Confirm the required functions of the machine through communication with the customer; Our engineers complete the machine drawing design according to customer requirements; Engineers provide on-site guidance for a series of operations such as cutting, welding, and assembly of machines; Quality inspectors conduct full process testing of the functionality of each machine; Engineers and project leaders will conduct another inspection before shipment.

What can you buy from us?

Hydraulic cold presses, Single-layer and multi-layer hot presses, Glue spreading machines, Automatic feeder, Turnover machine, Automatic palletizer, Non-standard automated production lines of various specifications.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash; Language Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
