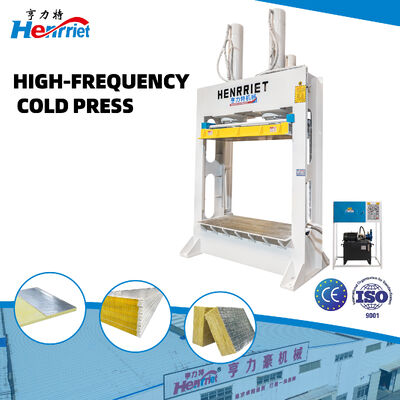

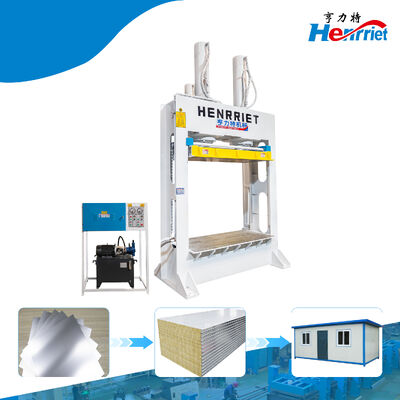

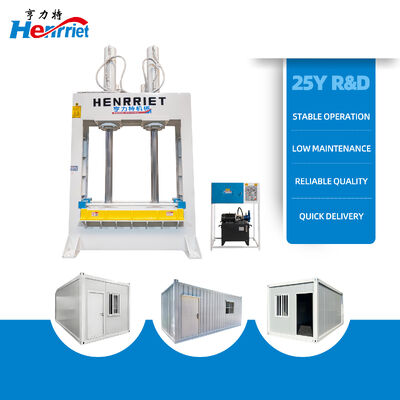

120T Maximum Pressure High-Frequency Cold Press with 6.78MHZ Operating Frequency and Dual-side Output

120T Maximum Pressure High-Frequency Cold Press with 6.78MHZ Operating Frequency and Dual-side Output

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Input Power:

40KW

Maximum Output Power:

30KW

Operating Frequency:

6.78MHZ

Output Method:

Dual‑side Output

Power Supply:

3‑Phase AC 380V 50Hz

Rectification Method:

3‑Phase Bridge Rectifier

Cooling Method Of Electronic Tube:

Air Cooling

Tuning Method:

Manual Vacuum Capacitor Tuning

Protection Method:

Over‑current Protection / Door‑open Protection / Over‑voltage Protection

Output Commutation Method:

Electromagnetic Commutation

Maximum pressure:

120T

Workbench Dimensions:

1700mm*750mm

Pressure Plate Opening Distance:

1300mm

Oil cylinder specifications:

2pcs （80mm*110mm）

Power:

5.5kw

Packaging Details:

Film with Foam

Highlight:

120T Maximum Pressure High-Frequency Cold Press

6.78MHZ Operating Frequency Cold Press Machine

Dual-side Output Hydraulic Cold Press

Product Description

120‑Ton High‑Frequency Cold Press for Cold‑Press Gluing & Forming of Sandwich Composite Materials

Product Overview

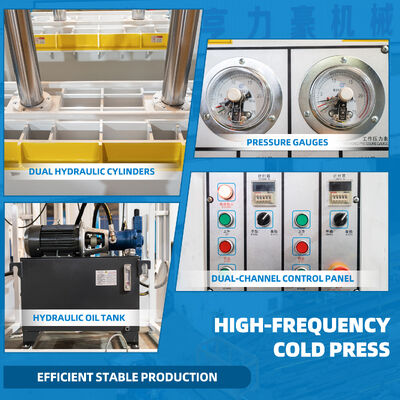

This high-frequency cold press adopts an integrated design that combines the hydraulic system and high-frequency power supply. The body features a heavy-duty frame structure, with a compact arrangement of the press unit and electrical cabinet, and sufficient frame rigidity. Unlike conventional hot-press solutions, this machine utilizes a hydraulic pressing mechanism together with a high-frequency generator, enabling targeted heating and curing of adhesive layers under cold-press operating conditions.

Key Features

Superior Production Capacity: High-frequency energy acts internally on adhesive layers, concentrating heat at bonding interfaces rather than heating the entire workpiece. Stable pressure output helps achieve relatively even force distribution across the full surface of workpieces.
Security Guarantee: Multi-dimensional electrical protections are provided, including over-current, over-voltage, and door-interlock safety functions. The hydraulic system incorporates standard pressure protection logic to prevent overpressure operation.
Application Areas: Mainly applied in bonding and pressing of honeycomb panels and various sandwich composite materials, as well as gluing and forming of diverse door panels.
Maintenance and Upkeep: The modular design facilitates fault diagnosis and component servicing. Routine maintenance focuses on hydraulic oil condition, cooling assemblies, and wiring terminals.

Technical Specifications

Maximum input power	40KW
Maximum output power	30KW
Operating frequency	6.78MHZ
Output method	Dual-side Output
Power supply	3-Phase AC 380V 50Hz
Rectification method	3-Phase Bridge Rectifier
Cooling method of electronic tube	Air Cooling
Tuning method	Manual Vacuum Capacitor Tuning
Protection method	Over-current Protection / Door-open Protection / Over-voltage Protection
Output commutation method	Electromagnetic Commutation
Maximum pressure	120T
Workbench dimensions	1700mm*750mm
Pressure plate opening distance	1300mm
Oil cylinder specifications	2pcs (80mm*110mm)
Power	5.5kw

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen or markups
Custom-Built Solutions: Over 30 senior engineers design machines around your production needs
Global Certification: CE & ISO 9001 certified, compliant with international regulations
Proven Experience: Over 50 countries, 1000+ projects with equipment engineered for heavy-duty use

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline
Respond to repair needs within 48 hours
Free video training for operators
Process guidance manuals provided
Lifetime technical support and software upgrade services

Product Image

Company Overview

Based in Guangdong, China since 2016, we serve domestic and international markets with over 110 employees and extensive experience in wooden machinery industry.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2016, serving Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees.

Why should you buy from us not from other suppliers?

More than 20 years in wooden machinery industry. We have two factories covering over 20,000 square meters with over 130 professional employees, including a senior design team of over 30 engineers. We provide custom machine design, comprehensive installation, commissioning, and operator training.

How can we guarantee quality?

Confirm machine functions through customer communication; engineer-designed drawings; on-site guidance for cutting, welding, and assembly; full process testing; and final inspection before shipment.

What can you buy from us?

Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash; Languages: English, Chinese, Spanish, Japanese, Russian, Hindi.
