| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

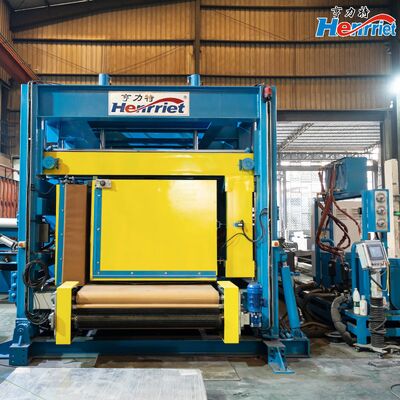

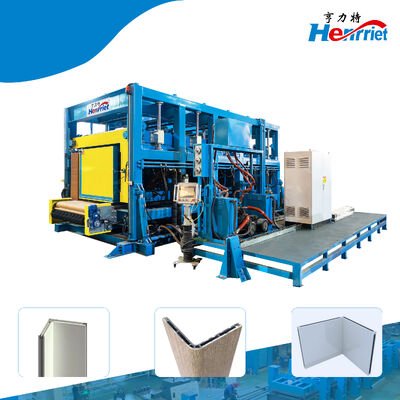

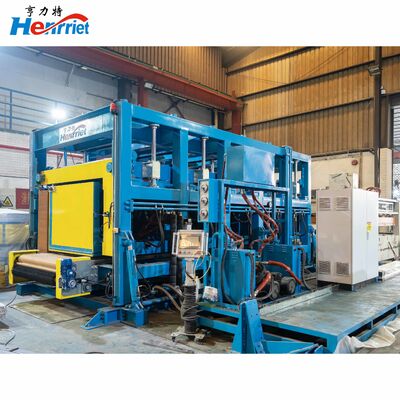

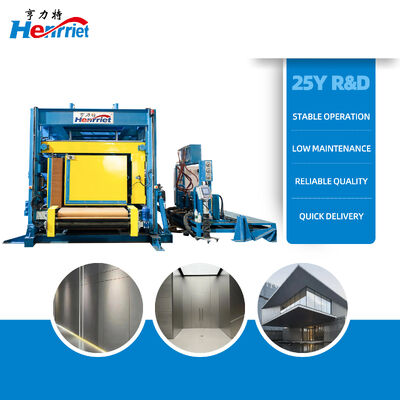

The right-angle hot press is an integrated pressing unit built on an L-frame configuration. The overall design combines robust construction with a space-efficient footprint, incorporating L-shaped front and rear conveying platforms to enable simultaneous vertical main-pressure and side-pressure processing. It utilizes electric heating paired with thermal oil circulation and a multi-group hydraulic cylinder arrangement, offering workpiece tilt adjustment capability. The system manages the complete operational sequence—loading, laminating, and unloading—for oversized panels.
| Specification | Details |
|---|---|
| Pressure Method | Top-down pressing / Side pressing |
| Maximum Pressure | Max main pressing force: 80 tons Max side pressing force: 43 tons |
| Hot Press Plate Size | 6500mm*1500mm *1 pc (Lower) 6500mm*1503mm *1 pc (Upper) 6500mm*1200mm *1 pc (Side pressing) 6500mm*1153mm *1 pc (Main pressing side) |
| Plate Thickness | 50mm |
| Actual Composite Size | 6000mm*1400mm*1100mm |
| Number of Layers | 1-layer |
| Opening Spacing | 0-300mm |
| Heating System | Electric heating, heat transfer by thermal oil Maximum temperature: Adjustable (Ambient temperature-100℃) Heating system power: 144KW |
| Total Power | 157.6KW |
| Overall Dimensions | 6500*2400*850mm |
| Weight (approx) | 15500kg |
This equipment is primarily suited for hot-press lamination of honeycomb panels and sandwich composite materials, as well as lamination forming for a range of door panel types. It finds use in building panel fabrication, composite material processing, and prefabricated panel manufacturing lines.
Routine daily care centers on monitoring hydraulic oil condition. Scheduled inspections cover sealing integrity, conveyor medium wear status, and circulation motor function. A majority of inspection and repair tasks are carried out with the machine in a stopped state.
Who are we?
We are based in Guangdong, China, established in 2016. We have over 110 employees and serve markets worldwide including Domestic Market (55%), Africa (20%), South Asia (9%), Central America (6%), Oceania (5%), South America (3%), and Eastern Asia (2%).
Why should you buy from us instead of other suppliers?
With over 20 years in the wooden machinery industry, we operate two factories covering 20,000+ square meters. Our 130+ professional employees include a senior design team of 30+ engineers. We provide custom machine design, comprehensive installation, commissioning, and operator training to ensure immediate production upon arrival.
How can we guarantee quality?
We confirm machine functions through customer communication, complete custom machine drawing design, provide on-site guidance for cutting, welding and assembly operations, conduct full process testing, and perform final inspection before shipment.
What can you buy from us?
What services can we provide?
Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Payment Currency: USD, EUR, CNY
Payment Type: T/T, L/C, PayPal, Western Union, Cash
Languages: English, Chinese, Spanish, Japanese, Russian, Hindi
