Henrriet 80 Tons Max Main Pressing Force Right-Angle Hot Press Machine with 6500mm*1500mm Plate Size and Electric Heating with Thermal Oil

Henrriet 80 Tons Max Main Pressing Force Right-Angle Hot Press Machine with 6500mm*1500mm Plate Size and Electric Heating with Thermal Oil

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Method:

Top‑down Pressing/Side Pressing

Maximum Pressure:

Max Main Pressing Force: 80 Tons Max Side Pressing Force: 43 Tons

Hot Press Plate Size:

6500mm×1500mm *1 Pc (Lower) 6500mm×1503mm *1 Pc (Upper Table Pending‑processing Size) 6500mm×1200mm *1 Pc (Side Pressing) 6500mm×1153mm *1 Pc (Main Pressing Side)

Plate Thickness:

50mm

Actual Composite Size:

6000mm*1400mm*1100mm

Number Of Layers:

1‑layer

Opening Spacing:

0-300mm

Heating Cycle Motor:

2.2kwX2 Table

Hydraulic System Motor Power:

5.5kwX1Table

Oil Cylinders And Quantity (piston Cylinders):

Main Pressing: Φ100×Φ70, 350mm Stroke, 5 Pcs Side Pressing Cylinder: HOB‑FA‑63, 100mm Stroke, 10 Pcs Limit Cylinder: HOB‑FA‑63, 100mm Stroke, 5 Pcs 15° Tilting Cylinder: Φ80×150mm, 4 Pcs

Tilt Angle:

0°-15°

Heating System Power:

72KW Per Block ×2 Sets =144KW

Heating Method:

Electric Heating, Heat Transfer By Thermal Oil

Maximum Temperature:

Adjustable (Ambient Temperature‑100℃)

L-shaped Front Conveyor Platform:

6500mm*1500mm*1000mm(With Rotation)

L-shaped Rear Material Receiving Platform:

6500mm*1500mm*1000mm(Without Rotation)

Feeding Conveyor Belt Medium:

High‑temperature Resistant Teflon

Feed Reducer Power:

2.2KWX1Table

Brush Motor Power:

1.5KWX1Table

Total Power:

157.6KW

Overall Dimensions:

6500*2400*850mm

Weight (approx):

15500kg

Packaging Details:

Film with Foam

Highlight:

80 tons Max main pressing force Hot Press Machine

6500mm*1500mm Hot Press Plate Size Composite Panel Press Machine

Electric heating with thermal oil Right-Angle Hot Press

Product Description

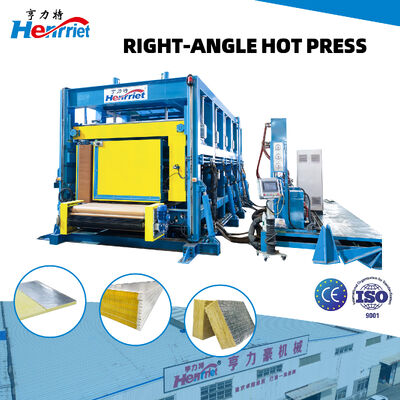

Henrriet Single-Layer Right-Angle Hot Press for Sandwich Composites

Combined Top-Side Pressing with L-Shape Conveyor, Composite Panel Press Machine

Product Overview

The right-angle hot press is a compact, integrated pressing unit built on an L-shaped frame architecture. The machine is engineered for structural rigidity and space-efficient layout, featuring L-configured front and rear conveying platforms that enable coordinated vertical main-pressure and lateral side-pressure operations. It utilizes an electric heating system paired with a thermal oil circulation loop, driven by a multi-cylinder hydraulic arrangement, and offers workpiece angle adjustment capability. The equipment is designed to support the complete workflow—from material feeding through lamination to discharge—for large-format panel processing.

Key Features

Superior Production Capacity: Simultaneous vertical and lateral pressing applies multi-directional compaction force to right-angle joints, reducing localized bonding irregularities. Integrated L-shaped conveying platforms with heat-resistant transport media facilitate handling of oversized workpieces during continuous operation.

Security Guarantee: Multi-cylinder limit mechanism regulates cylinder travel range to minimize over-stroke operation risk. Physical separation between conveying platforms and main machine body reduces operator contact with moving components. Indirect thermal oil heating mitigates risks associated with direct heating methods.

Application Areas

Primarily suited for hot-press lamination of honeycomb panels and sandwich-type composite materials, as well as lamination forming of various door panel products. Common applications include building panel manufacturing, composite material processing, and prefabricated panel production.

Maintenance & Upkeep

Routine maintenance centers on monitoring hydraulic oil condition. Periodic inspection of sealing component integrity, conveyor medium wear assessment, and verification of circulation motor operational status is recommended. Most inspection and servicing tasks can be performed while the machine is stopped.

Technical Specifications

Pressure Method	Top-down pressing / Side pressing
Maximum Pressure	Max main pressing force: 80 tons Max side pressing force: 43 tons
Hot Press Plate Size	6500mm×1500mm ×1 pc (Lower) 6500mm×1503mm ×1 pc (Upper) 6500mm×1200mm ×1 pc (Side pressing) 6500mm×1153mm ×1 pc (Main pressing side)
Plate Thickness	50mm
Actual Composite Size	6000mm×1400mm×1100mm
Number of Layers	1-layer
Opening Spacing	0-300mm
Heating System	Electric heating, heat transfer by thermal oil Maximum temperature: Adjustable (Ambient temperature-100℃) Heating system power: 144KW
Total Power	157.6KW

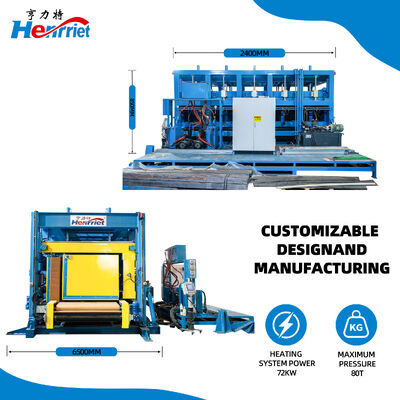

Overall Dimensions	6500×2400×850mm
Weight (approx)	15500kg

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups
30+ Senior Engineers: Custom-built solutions tailored to your production needs
CE & ISO 9001 Certified: Global-ready equipment meeting international standards
50+ Countries, 1000+ Projects: Proven experience in design and manufacturing

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline
Respond to repair needs within 48 hours
Free video training for operators
Process guidance manuals provided
Lifetime technical support and software upgrades

Product Image

Frequently Asked Questions

Who are we?
Based in Guangdong, China, established in 2016. We have over 110 employees and serve markets worldwide including Domestic Market (55%), Africa (20%), South Asia (9%), Central America (6%), Oceania (5%), South America (3%), and Eastern Asia (2%).

Why should you buy from us instead of other suppliers?
With over 20 years in the wooden machinery industry, we operate two factories covering 20,000+ square meters. Our 130+ professional employees include a senior design team of 30+ engineers. We provide custom machine design, comprehensive installation, commissioning, and operator training to ensure immediate production upon arrival.

How can we guarantee quality?
We confirm machine functions through customer communication, complete custom machine drawing design, provide on-site guidance for cutting, welding and assembly operations, conduct full process testing, and perform final inspection before shipment.

What can you buy from us?

Hydraulic cold presses
Single-layer and multi-layer hot presses
Glue spreading machines
Automatic feeder
Turnover machine
Automatic palletizer
Non-standard automated production lines

What services can we provide?
Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Payment Currency: USD, EUR, CNY
Payment Type: T/T, L/C, PayPal, Western Union, Cash
Languages: English, Chinese, Spanish, Japanese, Russian, Hindi
