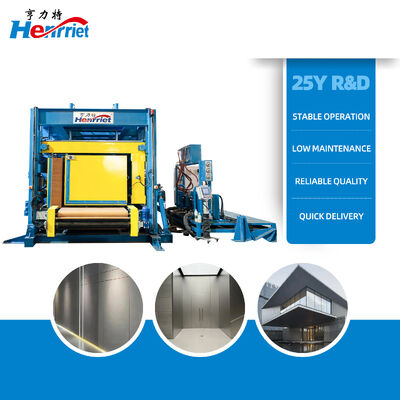

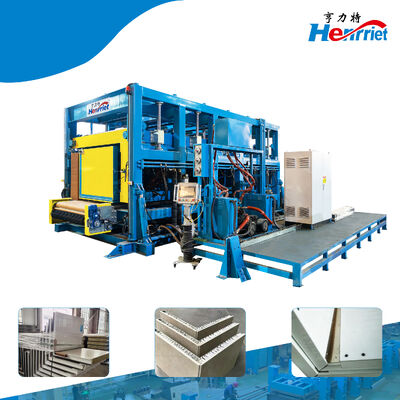

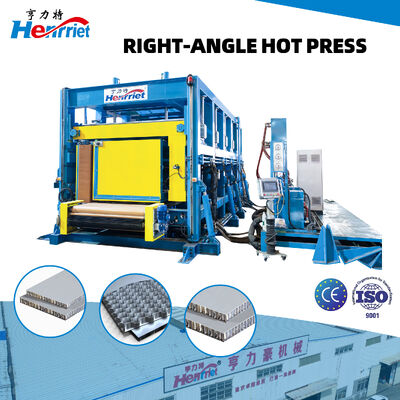

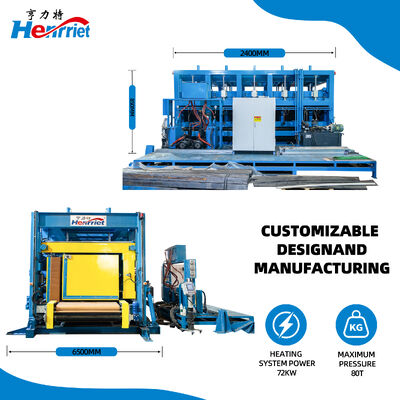

Right-Angle Hot Press Machine with 80T Main & 43T Side Pressure and 6500mm Platen for Aluminum Honeycomb Panels

This right-angle hot press is an integrated laminating machine with an L-frame structure. The equipment combines heavy-duty performance with a compact footprint, and is equipped with L-shaped front and rear conveying platforms to enable simultaneous vertical main pressing and lateral auxiliary pressing. It adopts electric heating with thermal oil circulation and a multi-group hydraulic cylinder system, and supports workpiece tilt adjustment. The machine covers the complete workflow of feeding, laminating, and discharging for large-size panels.

Delivers vertical and side compression in a synchronized manner, applying multi-directional compaction to the right-angle joints of panels, which helps reduce the risk of incomplete lamination in localized areas. The integrated L-shaped conveying platforms can accommodate large-dimension workpieces and are fitted with high-temperature-resistant conveyor media.

Multi-cylinder limit structure constrains cylinder stroke and helps prevent over-travel situations. Physical separation between the conveying platforms and the main machine body provides protection against accidental human-machine contact. The indirect heating method using thermal oil contributes to lowering potential safety risks.

Primarily used for hot-press lamination of honeycomb panels and sandwich composite materials, as well as for laminate forming of various door panels. The equipment finds wide application in building panel manufacturing, composite material processing, and prefabricated panel production.

Routine maintenance focuses on the condition of the hydraulic oil. Periodic checks are recommended for sealing performance, wear of the conveyor medium, and the operation of circulation motors. Most inspection and repair tasks can be carried out while the machine is stopped.

• Two In-House Factories: Better prices and faster delivery with no middlemen markups
• 30+ Senior Engineers: Custom-built solutions tailored to your production needs
• CE & ISO 9001 Certified: Global-ready equipment meeting international standards
• 50+ Countries, 1000+ Projects: Proven experience in design and manufacturing

• Warranty: 1 year
• Packaging: Film with foam
• 24-hour customer service hotline
• Respond to repair needs within 48 hours
• Free video training for operators
• Process guidance manuals provided
• Lifetime technical support and software upgrades

We are based in Guangdong, China, established in 2016. We have over 110 employees and serve markets worldwide including Domestic Market (55%), Africa (20%), South Asia (9%), Central America (6%), Oceania (5%), South America (3%), and Eastern Asia (2%).

With over 20 years in the wooden machinery industry, we operate two factories covering 20,000+ square meters. Our 130+ professional employees include a senior design team of 30+ engineers. We provide custom machine design, comprehensive installation, commissioning, and operator training to ensure immediate production upon arrival.

We confirm machine functions through customer communication, complete custom machine drawing design, provide on-site guidance for cutting, welding and assembly operations, conduct full process testing, and perform final inspection before shipment.

• Hydraulic cold presses
• Single-layer and multi-layer hot presses
• Glue spreading machines
• Automatic feeder
• Turnover machine
• Automatic palletizer
• Non-standard automated production lines

Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Payment Currency: USD, EUR, CNY
Payment Type: T/T, L/C, PayPal, Western Union, Cash
Languages: English, Chinese, Spanish, Japanese, Russian, Hindi
