PLC-Controlled 400T Maximum Pressure Hot Press Machine for 150℃ Maximum Temperature Acoustic Panel Production

PLC-Controlled 400T Maximum Pressure Hot Press Machine for 150℃ Maximum Temperature Acoustic Panel Production

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Press Down From Top

Maximum Pressure:

400T

Workbench Dimensions:

3200mm*1500mm

Hot Press Plate Size:

3200mm*1500mm*2pcs

Hot Pressed Plate Thickness:

50mm*2pcs

Workbench Reducer:

2.2KW × 1 Unit, With Inverter Speed Control

Workbench Conveyor Belt:

4700mm*1500mm*0.7mm*3 Belts

Number Of Layers:

1 Layer

Spacing:

300mm

Heating Circulation Pump Motor:

3kw*1 Unit

Oil Cylinder And Quantity:

8 Cylinders 120mm*180mm

Hydraulic System Power:

Motor 15KW

Heating System:

Electric Heating; Heat Transfer Medium: Thermal Oil

Maximum Temperature:

150℃

Control Method:

PLC + Touch Screen

System Voltage:

415V 50HZ

System Power:

127.4KW

Packaging Details:

Film with Foam

Highlight:

PLC-Controlled Hot Press Machine

400T Maximum Pressure Acoustic Panel Production Line

150℃ Maximum Temperature Wood Panel Press

Product Description

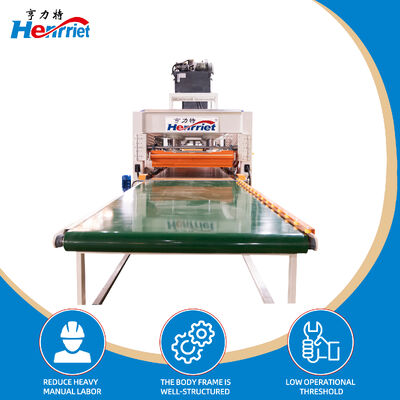

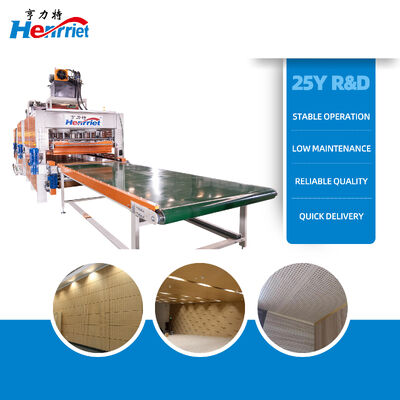

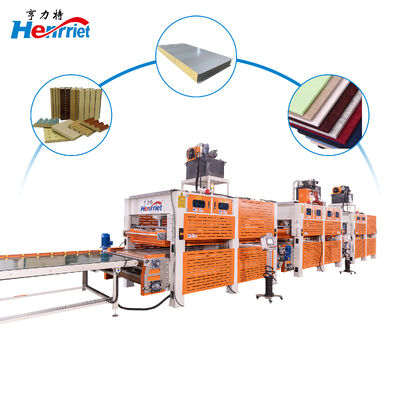

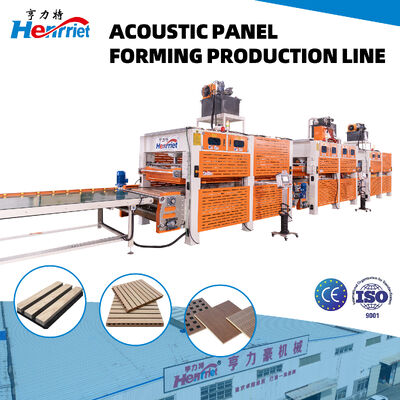

PLC-Controlled Wood Acoustic Panel Hot Press Production Line

This fully integrated continuous-manufacturing system features a well-organized layout with logically arranged workstations and a robust, space-saving structural framework. Designed for producing various sound-absorbing panels including polyester fiber, rock wool, and composite perforated variants.

Production Process

The line optimizes internal porous architecture through essential processes including fiber opening and blending, web forming, thermal pressing, and composite curing. Precise temperature and pressure management ensures consistent porosity and refined surface finishes, streamlining workflow from raw materials to finished products.

Key Features

Superior Production Capacity: Synchronized workstations with centralized control system ensure seamless process integration and efficient material flow
Security Guarantee: Standardized protective structures, isolation components, and emergency-stop functions with real-time performance monitoring
Application Versatility: Suitable for offices, conference rooms, recording studios, theaters, equipment rooms, and acoustic enclosures
Maintenance Efficiency: Modular structural design allows straightforward disassembly and inspection of critical components

Technical Specifications - Hot Press

Parameter	Specification
Pressure mode	Press down from top
Maximum pressure	400T
Workbench dimensions	3200mm × 1500mm
Hot press plate size	3200mm × 1500mm × 2pcs
Hot pressed plate thickness	50mm × 2pcs
Workbench reducer	2.2KW × 1 unit, with inverter speed control
Workbench conveyor belt	4700mm × 1500mm × 0.7mm × 3 belts
Number of layers	1 layer
Spacing	300mm
Heating circulation pump motor	3kw × 1 unit
Oil cylinder and quantity	8 cylinders 120mm × 180mm
Hydraulic system power	Motor 15KW
Heating system	Electric heating; heat transfer medium: thermal oil
Maximum temperature	150℃
Control method	PLC + Touch screen
System voltage	415V 50HZ
System power	127.4KW

Technical Specifications - Cold Press

Parameter	Specification
Pressure mode	Press down from top to bottom
Maximum pressure	250T
Workbench dimensions	3200mm × 1500mm
Hot press plate size	3200mm × 1500mm × 2pcs
Hot pressed plate thickness	50mm × 2pcs
Workbench reducer	2.2KW × 1 unit, with inverter speed control
Workbench conveyor belt	4700mm × 1500mm × 0.7mm × 3 belts
Number of layers	1 layer
Spacing	300mm
Oil cylinder and quantity	6 piston cylinders, 180mm × 120mm
Cylinder stroke	300mm
Hydraulic system power	Motor 7.5KW
Total power of the system	9.7 KW
Control method	PLC + Touch screen
System voltage	415V 50HZ

Company Advantages

Direct Manufacturing

Two in-house factories ensure better prices and faster delivery with no middlemen or markups

Expert Engineering

30+ senior engineers provide custom-built solutions tailored to your production needs and budget

Global Certification

CE & ISO 9001 certified equipment meeting international electrical, mechanical, and safety regulations

Proven Experience

50+ countries, 1000+ projects with equipment engineered for long-term, heavy-duty use

Service Support

Warranty: 1 year

Packaging: Film with foam

Support: 24-hour customer service hotline, respond to repair needs within 48 hours

Training: Free video training for operators and provision of process guidance manuals

Technical Support: Lifetime technical support and software upgrade services

Product Gallery

Frequently Asked Questions

Who are we?

Based in Guangdong, China since 2016. We serve Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%) with over 110 employees.

Why should you buy from us not from other suppliers?

More than 20 years in wooden machinery industry with two factories covering over 20,000 square meters. We have 130+ professional employees including 30+ engineers. We provide custom machine design, comprehensive installation, commissioning, and operator training.

How can we guarantee quality?

Quality assurance through customer communication, engineer-designed drawings, on-site guidance for operations, full process testing, and final inspection before shipment.

What can you buy from us?

Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash. Languages Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
