| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

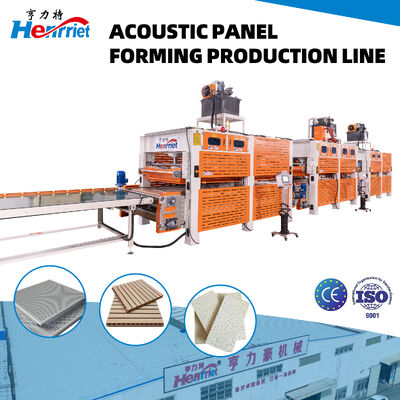

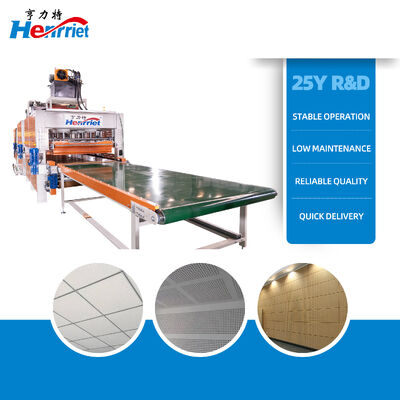

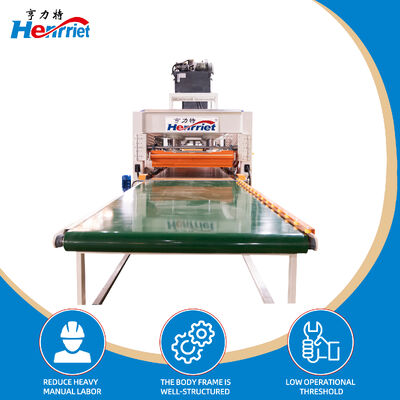

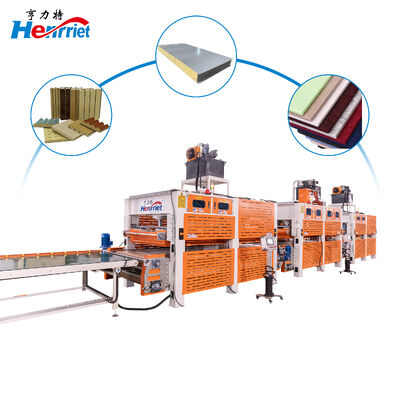

The sound-absorbing panel forming production line is a complete set of integrated continuous-production equipment featuring neat overall layout, well-arranged working stations, and stable, compact frame structure. It supports manufacturing of multiple sound-absorbing panels including polyester fiber, rock wool, and composite perforated types.
Relying on core processes such as fiber opening & blending, web laying, hot-pressing and composite curing, the production line adjusts the internal porous structure of panels via temperature and pressure control. It completes full manufacturing procedures from raw materials to finished panels without redundant auxiliary processes, delivering finished acoustic panels with evenly distributed pores and smooth surfaces.
All stations are coordinated by control system with smooth process connection and fluent material transfer. Process logic can be flexibly adjusted for different working conditions, adapting to diverse panel formulas and forming technologies. Continuous-operation mode ensures stable production and reduces finished-product fluctuation.
Equipment is equipped with standardized safety protection structures, protective isolation components, and emergency stop mechanism. Control system monitors operating status and feeds back real-time working data. Electrical components are well-protected against dusty environments.
Panels are widely used for indoor building noise reduction in office spaces, meeting rooms, broadcast studios, cinemas, and industrial noise-reduction scenarios including equipment rooms and sound-insulating enclosures. Also serves acoustic renovation projects for schools and hospitals.
Modular structural design allows easy disassembly and inspection of key components. Sufficient operating space is reserved for quick maintenance. Regular inspection of transmission and pressing stations ensures sustained equipment performance.
| Pressure mode | Press down from top |
| Maximum pressure | 400T |
| Workbench dimensions | 3200mm * 1500mm |
| Hot press plate size | 3200mm * 1500mm * 2pcs |
| Hot pressed plate thickness | 50mm * 2pcs |
| Workbench reducer | 2.2KW * 1 unit, with inverter speed control |
| Workbench conveyor belt | 4700mm * 1500mm * 0.7mm * 3 belts |
| Number of layers | 1 layer |
| Spacing | 300mm |
| Heating circulation pump motor | 3kw * 1 unit |
| Oil cylinder and quantity | 8 cylinders 120mm * 180mm |
| Hydraulic system power | Motor 15KW |
| Heating system | Electric heating; heat transfer medium: thermal oil |
| Maximum temperature | 150℃ |
| Control method | PLC + Touch screen |
| System voltage | 415V 50HZ |
| System power | 127.4KW |
| Pressure mode | Press down from top to bottom |
| Maximum pressure | 250T |
| Workbench dimensions | 3200mm * 1500mm |
| Hot press plate size | 3200mm * 1500mm * 2pcs |
| Hot pressed plate thickness | 50mm * 2pcs |
| Workbench reducer | 2.2KW * 1 unit, with inverter speed control |
| Workbench conveyor belt | 4700mm * 1500mm * 0.7mm * 3 belts |
| Number of layers | 1 layer |
| Spacing | 300mm |
| Oil cylinder and quantity | 6 piston cylinders, 180mm * 120mm |
| Cylinder stroke | 300mm |
| Hydraulic system power | Motor 7.5KW |
| Total power of the system | 9.7 KW |
| Control method | PLC + Touch screen |
| System voltage | 415V 50HZ |
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
Every machine meets EU CE safety standards and ISO 9001 quality requirements. Full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
Warranty: 1 year
Packaging: Film with foam
Support: 24-hour customer service hotline, respond to repair needs within 48 hours
Training: Free video training for operators and provision of process guidance manuals
Technical Support: Lifetime technical support and software upgrade services
We are based in Guangdong, China, starting from 2016. We sell to Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees.
More than 20 years in wooden machinery industry. We have two factories covering an area of over 20,000 square meters. We have over 130 professional employees, including a senior design team consisting of over 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We provide comprehensive installation, commissioning, and operator training to ensure immediate production upon arrival.
We confirm required functions through customer communication; our engineers complete machine drawing design according to requirements; engineers provide on-site guidance for cutting, welding, and assembly operations; quality inspectors conduct full process testing; engineers and project leaders conduct final inspection before shipment.
Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines of various specifications.
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash; Languages Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
