80T Maximum Pressure Two Cylinder Hydraulic Cold Press Machine with 1500×1100 mm Pressing Plate for Industrial Lamination

80T Maximum Pressure Two Cylinder Hydraulic Cold Press Machine with 1500×1100 mm Pressing Plate for Industrial Lamination

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum pressure:

80T

Pressure Plate Size:

1500mm*1100mm

Maximum processing length:

1500mm

Maximum processing width:

1100mm

Pressure Plate Opening Distance:

600mm

Oil cylinder specifications:

2 Sticks（110*160mm）

Power:

7.5KW

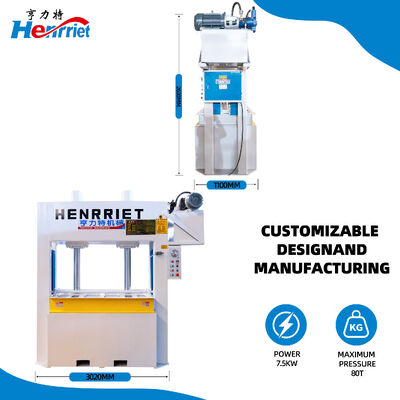

Overall dimensions（approximate）:

3020mm*1100mm*2630mm

Weight (approx):

2650 KG

Packaging Details:

Film with Foam

Highlight:

80T Maximum Pressure Hydraulic Cold Press Machine

1500×1100 mm Pressing Plate Cold Press Machine

Two Cylinder Hydraulic System Industrial Press Machine

Product Description

80 T Two Cylinder Hydraulic Cold Press Machine with 1500×1100 mm Pressing Plate for Aluminum Honeycomb Panel Lamination

Two Cylinder Hydraulic Cold Press Machine with 1500×1100mm Pressing Plate for Aluminum Honeycomb Panel Lamination

Product Overview

The two-cylinder hydraulic cold press serves as professional industrial pressing equipment, primarily developed for the lamination and compound processing of composite materials. Equipped with a mature hydraulic driving system, the equipment outputs stable and adjustable pressing force, facilitating effective lamination and bonding between multi-layer different materials.

Featuring a compact overall structure and reasonable internal layout, the equipment is well adapted to frequent and continuous working scenarios in industrial production lines. The heightened working platform offers ample operating space for board handling, stacking and lamination procedures, matching diverse production demands of different specification boards.

Key Features

Superior Production Capacity

Dual-cylinder pressing design creates uniform pressure distribution for various materials including sandwich structural materials, composite boards and door panel substrates. Adapts to aluminum honeycomb boards and multi-layer composite workpieces with flexible parameter adjustment.

Security Guarantee

Hydraulic transmission mode ensures smooth and stable pressing operations. Humanized equipment layout reduces operational hazards and improves safety. Regular component arrangement simplifies maintenance and inspection procedures.

Application Areas

Aluminum honeycomb composite board processing
Sandwich structure composite material lamination
Composite door panel compounding and forming
Processing and manufacturing of wooden doors and industrial special doors
Lamination and pressing of various multi-layer composite boards

Maintenance and Upkeep

To maintain optimal working condition and stable performance, implement regular maintenance plans based on production conditions and operating frequency. Regular checks should include hydraulic system operation, mechanical connection fastening, and working platform cleanliness.

Monitor hydraulic oil quality and consumption, lubricate movable transmission parts regularly, and perform periodic control system debugging. Standardized operating procedures and scientific maintenance extend equipment service life and reduce unexpected production shutdowns.

Technical Specifications

Specification	Value
Maximum pressure	80T
Pressure plate size	1500mm × 1100mm
Maximum processing length	1500mm
Maximum processing width	1100mm
Pressure plate opening distance	600mm
Oil cylinder specifications	2 sticks (110 × 160mm)
Power	7.5KW
Overall dimensions (approximate)	3020mm × 1100mm × 2630mm
Weight (approx)	2650 KG

Company Advantages

Direct Manufacturing

Two in-house factories ensure better prices and faster delivery with no middlemen or markups. Full control over production speed and costs.

Expert Engineering

30+ senior engineers design machines around your production needs, floor space, and budget. Custom-built solutions for specific requirements.

Global Certification

CE & ISO 9001 certified machines meet international electrical, mechanical, and safety regulations. Ready for global deployment.

Proven Experience

50+ countries, 1000+ projects. Equipment engineered for long-term, heavy-duty use in real factory environments worldwide.

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline
48-hour response to repair needs
Free video training for operators
Process guidance manuals provided
Lifetime technical support
Software upgrade services

Product Images

Company Showcase

Frequently Asked Questions

Who are we?

Based in Guangdong, China since 2016. We serve Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%) with over 110 employees.

Why should you buy from us not from other suppliers?

20+ years in wooden machinery industry. Two factories covering 20,000+ square meters with 130+ professional employees including 30+ senior engineers. Custom machine design, perfect production manufacturing, comprehensive installation, commissioning, and operator training for immediate production upon arrival.

How can we guarantee quality?

Confirm machine functions through customer communication
Engineers complete machine drawing design per requirements
On-site guidance for cutting, welding, and assembly operations
Quality inspectors conduct full process functionality testing
Final inspection by engineers and project leaders before shipment

What can you buy from us?

Hydraulic cold presses
Single-layer and multi-layer hot presses
Glue spreading machines
Automatic feeder
Turnover machine
Automatic palletizer
Non-standard automated production lines of various specifications

What services can we provide?

Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery

Payment Currency: USD, EUR, CNY

Payment Type: T/T, L/C, PayPal, Western Union, Cash

Languages: English, Chinese, Spanish, Japanese, Russian, Hindi
