Industrial Multi-Deck Hot Press Machine with 100 Tons Maximum Pressure and 2 Layers for Aluminum Honeycomb Panel Pressing

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Top-to-bottom Press Type

Maximum Pressure:

100 Tons

Hot Press Plate Size:

11900mm X 1400mm

Plate Thickness:

60mm X 4 Pieces

Actual Pressure Plate Size:

11500mm X 1200mm

Number Of Layers:

2 Layers

Opening Spacing:

0-250mm

Hydraulic Station, Hydraulic Valve Group:

2 Sets (with Added Oil Collection Tray)

Heating Cycle Motor:

3KW X 4 Units

Hydraulic System Motor Power:

7.5KW X 2 Units

Oil Cylinder And Quantity:

24 Pieces 70mm X 250mm

Heating System Power:

72KW X 4 Blocks = 288KW

Maximum Temperature:

100 Degrees

Feeding Conveyor Belt Medium:

High-temperature Resistant Teflon

Feed Reducer Power:

4KW X 2

Power Of Upper Plate Roll Fabric:

1.5KW X 4

Lower Brush Power:

1.5KW X 2

Total Power:

332KW

Packaging Details:

Film with Foam

Highlight:

Industrial Multi-Deck Hot Press Machine

Honeycomb Panel Hot Press Machine

Product Description

Industrial Multi-Deck Hot Press Equipment for Aluminum Honeycomb Panel Pressing Process

Product Overview

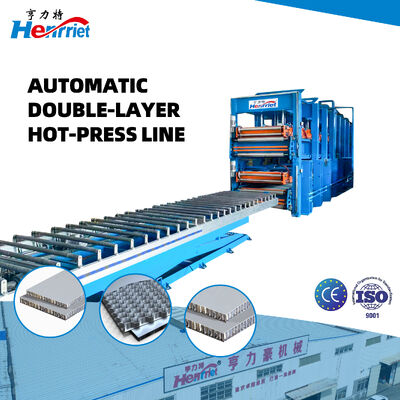

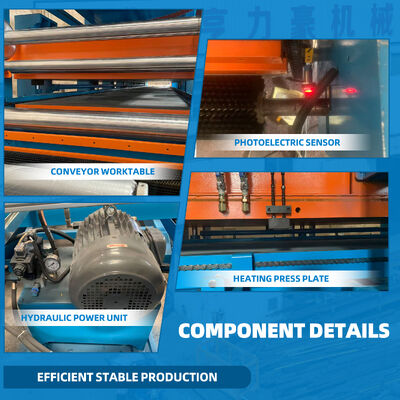

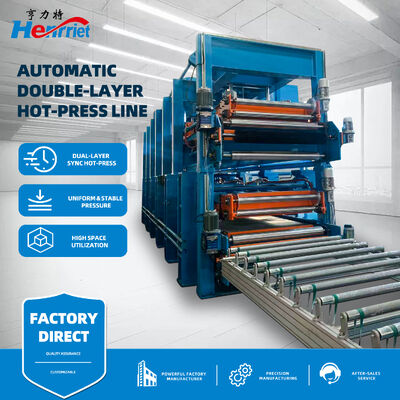

Designed for honeycomb panels, sandwich composites, and various doors, this double-layer hot press conveyor line features an integrated heavy-frame construction. Its industrial cabinet-style body incorporates roller conveyor sections at both the material inlet and outlet, combining the feeding and hot-pressing stages into a single cohesive system.

Powered by a hydraulic pressing unit and a circulating heating mechanism, the equipment supports continuous material flow during panel lamination. This arrangement reduces the need for frequent manual handling and helps create a more streamlined pressing process.

Key Features

Production Capacity: The double-layer configuration provides parallel operating stations; the continuous conveyor system aids in smooth material feeding and helps shorten idle periods.
Safety Protection: Equipped with standard hydraulic valve groups, protective covers for drive components, and emergency-stop systems.
Application Areas: Suitable for pressing composite panels, manufacturing sandwich panels, bonding fire-resistant boards, magnesium-oxide boards, thermal-insulation panels, and decorative wall panels for building applications.
Maintenance and Servicing: Modular design allows convenient inspection, offers adequate working space, and enables straightforward replacement of wear-prone parts.

Technical Specifications

Specification	Details
Pressure Mode	Top-to-bottom press type
Maximum Pressure	100 tons
Hot Press Plate Size	11900mm x 1400mm
Plate Thickness	60mm x 4 pieces
Actual Pressure Plate Size	11500mm x 1200mm
Number of Layers	2 layers
Opening Spacing	0-250mm
Heating System Power	72KW x 4 blocks = 288KW
Maximum Temperature	100 degrees
Total Power	332KW

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups

Expert Engineering Team: 30+ senior engineers providing custom-built solutions

Global Certification: CE & ISO 9001 certified for international compliance

Proven Experience: 50+ countries, 1000+ projects with heavy-duty engineering

Service Support

Warranty: 1 year

Packaging: Film with foam

Customer Service: 24-hour hotline with 48-hour response for repair needs

Training: Free video training for operators with process guidance manuals

Technical Support: Lifetime technical support and software upgrade services

Product Introduction

Frequently Asked Questions

Who are we?

Based in Guangdong, China since 2016, we serve global markets with over 110 employees and extensive international experience.

Why choose us over other suppliers?

20+ years in wooden machinery industry, two factories covering 20,000+ square meters, 130+ professional employees including 30+ engineers for custom solutions, and comprehensive installation and training services.

How do we guarantee quality?

Through customer communication, engineering design, on-site guidance, full process testing, and pre-shipment inspection by engineers and project leaders.

What products do we offer?

Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and custom automated production lines.

What services do we provide?

Multiple delivery terms (FOB, CFR, CIF, EXW, Express Delivery), various payment options (T/T, L/C, PayPal, Western Union, Cash), and multilingual support (English, Chinese, Spanish, Japanese, Russian, Hindi).
