3-Layer Hydraulic Hot Press with 50 Tons Maximum Pressure and 120℃ Operating Temperature for Honeycomb Panel Bonding

3-Layer Hydraulic Hot Press with 50 Tons Maximum Pressure and 120℃ Operating Temperature for Honeycomb Panel Bonding

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Press From Bottom To Top

Maximum Pressure:

50 Tons

Number Of Layers Of Hot Pressed Plate:

3 Layers

Distance Between Hot Pressed Plates:

120mm

Maximum Processing Size:

3100*1220*60mm

Quantity And Specifications Of Hot Pressed Plates:

4 Pieces ~3200×1300×42mm Wrapped In High-temperature Resistant Film

Working Stroke Of Oil Cylinder:

360mm

Number And Diameter Of Oil Cylinders:

10*φ100mm

Heating Method:

Electric Heating, Heat Transfer With Thermal Oil

Heating Power:

54KW

Maximum Operating Temperature:

120℃

Overall Dimensions:

4000*1620*2020mm

Weight (approx):

Approximately 9500kg

Packaging Details:

Film with Foam

Highlight:

50 Tons Hydraulic Hot Press

Honeycomb Panel Hydraulic Hot Press

Product Description

3‑Layer Hydraulic Hot Press, Stable Hydraulic Output for Honeycomb Panel Bonding and Assembly

Product Overview

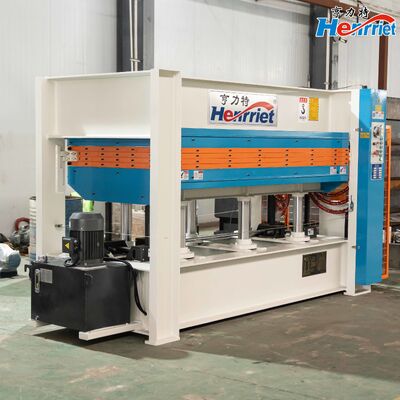

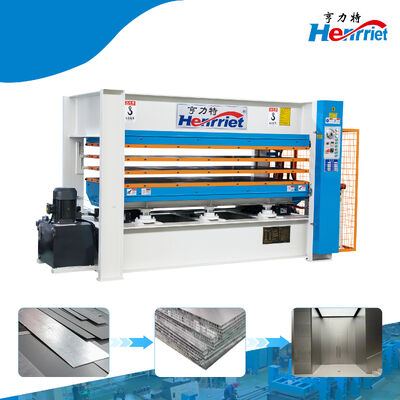

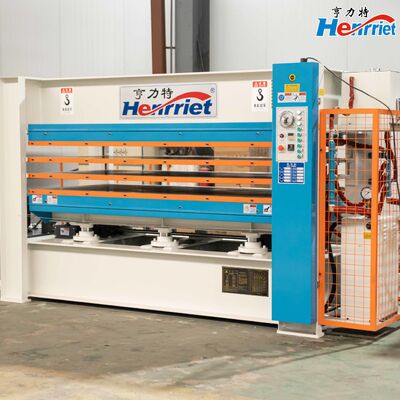

This up‑stroke multi‑layer hot press features a heavy‑duty welded frame with side‑mounted control cabinet and surrounding safety mesh guard. The machine employs a thermal‑oil electric heating system combined with hydraulic drive to deliver consistent pressure and heat distribution across the working platen. Designed for continuous workshop operation with composite wood‑based materials.

Key Features

Superior Production Capacity: Multi‑layer stations allow multiple workpieces per pressing cycle with steady hydraulic pressure and adaptable stroke for varied thickness materials
Security Guarantee: Comprehensive safety guards, emergency stop controls, pressure gauges, and over‑pressure protection for hydraulic components
Application Areas: Veneer pressing, decorative panel laminating, and composite board bonding with MDF, particle board, and similar wood‑based substrates
Maintenance and Upkeep: Routine checks on hydraulic oil condition and cylinder seals extend service life; clean platen surfaces maintain pressing quality

Technical Specifications

Pressure mode	Press from bottom to top
Maximum pressure	50 tons
Number of layers of hot pressed plate	3 layers
Distance between hot pressed plates	120mm
Maximum processing size	3100×1220×60mm
Quantity and specifications of hot pressed plates	4 pieces ~3200×1300×42mm wrapped in high-temperature resistant film
Working stroke of oil cylinder	360mm
Number and diameter of oil cylinders	10×φ100mm
Heating method	Electric heating, heat transfer with thermal oil
Heating power	54KW
Maximum operating temperature	120℃
Overall dimensions	4000×1620×2020mm
Weight (approx)	Approximately 9500kg

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen or markups
Custom-Built Solutions: 30+ senior engineers design machines around your production needs, floor space, and budget
Global Certification: CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations
Proven Experience: Over 50 countries, 1000+ projects with equipment engineered for long-term, heavy-duty use

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48 hours
Free video training for operators and provision of process guidance manuals
Lifetime technical support and software upgrade services

Product Images

Frequently Asked Questions

Who are we?

Based in Guangdong, China since 2016, serving Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%) with over 110 employees.

Why should you buy from us not from other suppliers?

More than 20 years in wooden machinery industry with two factories covering over 20,000 square meters and 130+ professional employees, including 30+ senior engineers. We provide custom machine design, comprehensive installation, commissioning, and operator training.

How can we guarantee quality?

Quality assurance through customer communication for required functions, engineer-designed machine drawings, on-site guidance for cutting/welding/assembly operations, full process testing by quality inspectors, and final inspection before shipment by engineers and project leaders.

What can you buy from us?

Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines of various specifications.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash; Languages Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
