| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

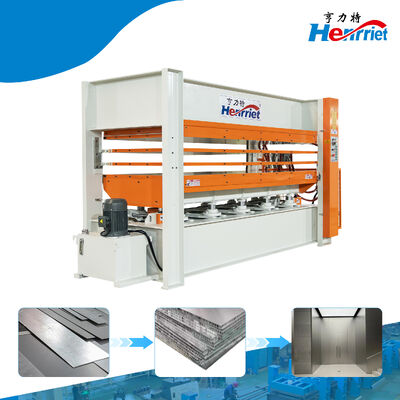

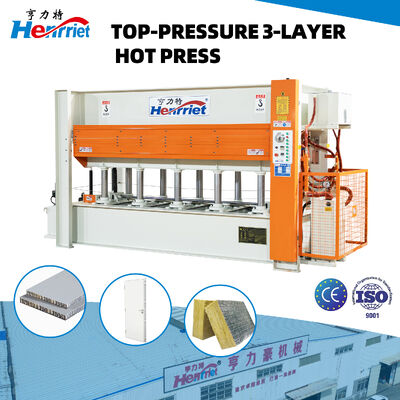

This 3-layer top-press hot press is a multi-opening hydraulic laminating equipment designed for the woodworking industry. Featuring a top-drive structural design with electric-powered thermal-oil circulating heating system, it delivers uniform pressure through hydraulic systems for precise veneer bonding and composite panel forming. Built with a heavy-duty welded frame for structural stability, this machine is engineered for continuous production in furniture and building-material panel factories.
Unlike single-opening hot presses that process one set of workpieces per cycle, this 3-opening station enables simultaneous pressing of multiple panels. The top-press hydraulic layout delivers well-distributed pressure, minimizing surface defects caused by uneven force. Thermal-oil circulation provides consistent heating across platens, improving finished-panel flatness and reducing risks of delamination or poor bonding.
Equipped with a centralized electric control unit featuring pressure gauges and emergency-stop components for rapid shutdown under abnormal conditions. Protective safety mesh isolates moving hydraulic zones, while safety warning labels mark lifting and operational precautions. The hydraulic system includes pressure protection to prevent over-pressure operation, and the thickened welded frame limits structural deformation under pressing loads.
Widely applied in furniture panel processing, wood-based panel deep processing, and building-material composite panel production. Performs veneer lamination for MDF, particleboard, blockboard and plywood, door-skin hot forming, as well as bonding for cabinet panels and decorative composite boards. Suitable for wood furniture factories, wood-based panel plants and composite building-material manufacturers.
Regularly check hydraulic oil level and condition during production intervals. Keep hydraulic fluid clean and replace oil following service cycles. Inspect cylinder sealing components and address fluid leakage promptly. Clean residual glue and debris on hot platens routinely to preserve pressing quality. Verify electric wiring, pressure gauges and emergency-stop functions regularly.
| Specification | Details |
|---|---|
| Pressure Mode | Press from bottom to top |
| Maximum Pressure | 50 tons |
| Number of Layers | 3 layers |
| Distance Between Hot Pressed Plates | 120mm |
| Maximum Processing Size | 3100×1220×60mm |
| Hot Pressed Plates | 4 pieces ~3200×1300×42mm wrapped in high-temperature resistant film |
| Working Stroke of Oil Cylinder | 360mm |
| Number and Diameter of Oil Cylinders | 10×φ100mm |
| Heating Method | Electric heating, heat transfer oil |
| Heating Power | 54KW |
| Maximum Operating Temperature | 120℃ |

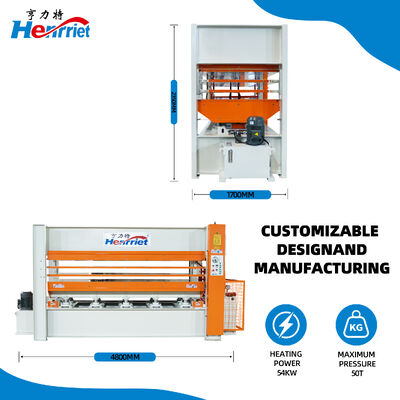

| Overall Dimensions | 4800×1700×2350mm |
| Weight (Approx.) | Approximately 9500kg |
We own two independent R&D and manufacturing facilities with no middlemen or markups. You buy directly from the source with full control over production speed and costs.
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. We build exactly what you need for your specific applications.
Every machine meets EU CE safety standards and ISO 9001 quality requirements, ensuring full compliance with international electrical, mechanical, and safety regulations.
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use in real factory environments worldwide.
We are based in Guangdong, China, established in 2016. Our market distribution includes Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We employ over 110 professionals.
With over 20 years in the wooden machinery industry, we operate two factories covering more than 20,000 square meters. Our team includes over 130 professional employees, including a senior design team of 30+ engineers. We provide custom machine design drawings tailored to your needs and ensure perfect production and manufacturing. Comprehensive installation, commissioning, and operator training ensure immediate production upon machine arrival.
Our quality assurance process includes: confirming machine functions through customer communication; engineer-designed machine drawings; on-site guidance for cutting, welding, and assembly; full process testing by quality inspectors; and final inspection by engineers and project leaders before shipment.
Our product range includes hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines of various specifications.
We accept delivery terms: FOB, CFR, CIF, EXW, Express Delivery. Payment options include USD, EUR, CNY currencies via T/T, L/C, PayPal, Western Union, Cash. Our team communicates in English, Chinese, Spanish, Japanese, Russian, and Hindi.
