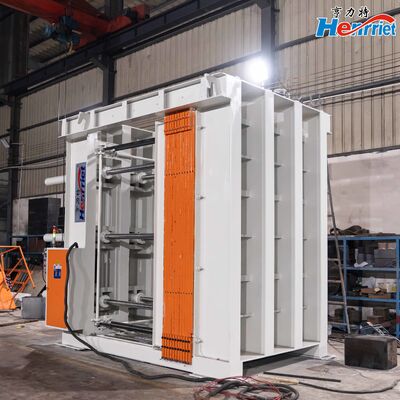

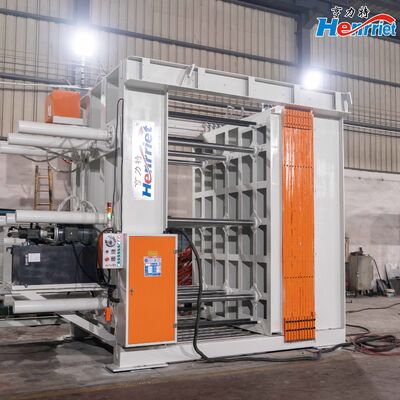

200-Ton 10-Layer Horizontal Hydraulic Laminating Press with 3200mm x 2400mm Pressure Plates for Sandwich Panel Production

The horizontal multi-deck lamination press is a hydraulic-powered, multi-station composite bonding system designed for panel assembly processes involving heat-sensitive bonding agents. Featuring a horizontally oriented pressing mechanism with electrically regulated thermal control, this equipment includes multiple autonomous working tiers and protective silicone pads within a reinforced structural framework for exceptional operational rigidity.

Designed specifically for oversized composite panel fabrication, this machine supports bespoke dimensional configurations and functions effectively as an independent workstation or integrated module within fully automated panel manufacturing lines.

• Superior Production Capacity: Multi-station architecture facilitates concurrent processing of numerous panels, shortening batch cycles and optimizing production logistics
• Uniform Pressure Distribution: Synchronized multi-cylinder hydraulic system ensures consistent force across entire panel surface
• Enhanced Handling: Horizontal configuration simplifies loading and unloading of large panels compared to traditional vertical setups
• Oversized Capability: Expansive platen surfaces cater to oversized workpieces with integrated silicone buffers

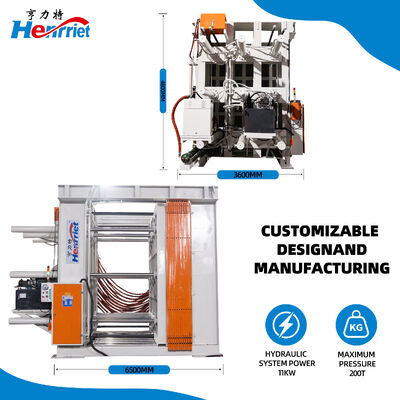

• Customizable Dimensions: Available adjustments to accommodate specific facility layouts and production requirements

• Robust welded frame provides structural dependability during prolonged continuous operation
• Hydraulic circuit incorporates standard industrial safeguards to mitigate fluid leakage risks
• Centralized electrical cabinet with intuitive human-machine interface for streamlined process management
• Mechanical limit switches precisely control platen travel, preventing overextension hazards
• Electric heating module maintains controlled thermal range to safeguard materials from thermal degradation

This horizontal press is widely utilized by manufacturers of composite panels for bonding honeycomb cores, magnesium-based substrates, insulated sandwich panels, architectural facade sheets, and metal composite materials. The equipment supports fabrication of interior decorative elements, cleanroom panels, and external cladding systems, capable of handling both specialized small-lot orders and high-volume standardized production.

• Warranty: 1 year
• Packaging: Film with foam
• 24-hour customer service hotline, respond to repair needs within 48 hours
• Free video training for operators and provision of process guidance manuals
• Lifetime technical support and software upgrade services
