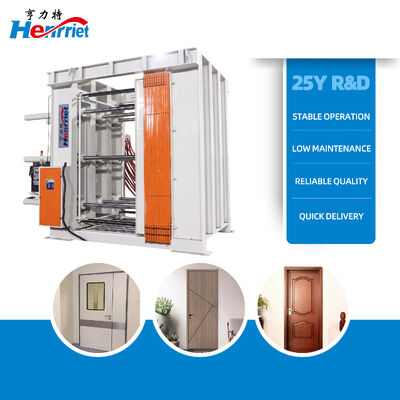

200T Maximum Pressure 10-Layer Horizontal Laminating Press with Electric Heating for Multi-Layer Bonding

200T Maximum Pressure 10-Layer Horizontal Laminating Press with Electric Heating for Multi-Layer Bonding

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Horizontal Pressing

Number Of Layers:

10 Layers, With A 3 Cm Thick Self-adhesive Silicone Pad On Each Layer

Pressure Plate Size:

3200mm*2400mm*42mm*11 Pieces

Pressure Plate Spacing:

150mm

Maximum Temperature:

60 ℃

Maximum Pressure:

200T

Number Of Oil Cylinders:

9 Pieces (90mm*125mm)

Hydraulic System Power:

11KW

Oil Pump Motor Power:

4KW

Heating Method:

Electric Heating

Heating Power:

72KW

Weight (approx):

About 40 Tons

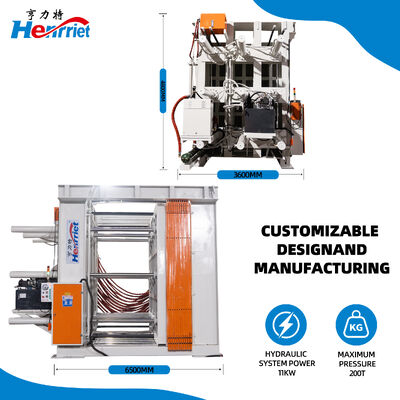

Overall Dimensions:

6500*3600*4800mm (customizable)

Packaging Details:

Film with Foam

Highlight:

200T Laminating Press Machine

10-Layer Laminating Press Machine

Electric Laminating Press Machine

Product Description

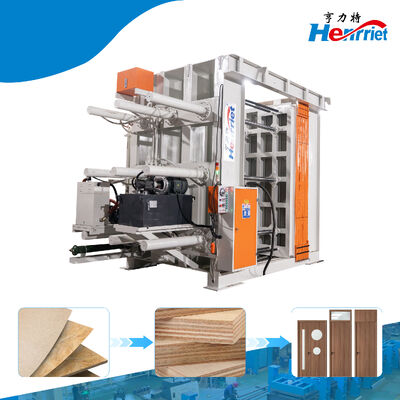

10‑Layer Horizontal Laminating Press, 200T Large‑Platen Hydraulic Machine for Multi‑Layer Bonding & Pressing of Various Door Panels

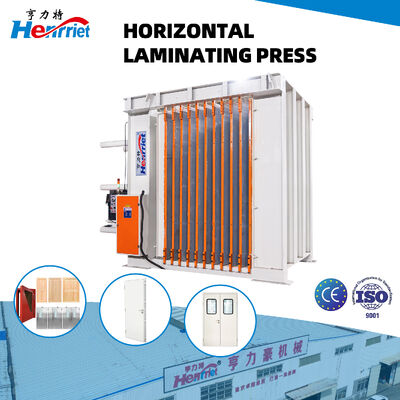

Horizontal Laminating Press Dedicated for Door Panels, Electric‑Heated Multi‑Station Equipment for Composite Pressing of Interior Doors & Fire‑Rated Doors

Product Overview

The horizontal multi-layer laminating press is a hydraulically driven multi-station composite pressing equipment. With a horizontal pressing structure and an electric temperature-control heating system, it is suitable for panel bonding processes involving temperature-sensitive adhesives. Equipped with multiple independent working layers and protective silicone cushions, the heavy-duty machine frame helps maintain high operational rigidity. It is engineered for the lamination of large-format composite panels. Custom overall dimensions are available upon request. It can operate as a standalone unit or be integrated into automatic panel production lines to handle challenging lamination tasks for oversized workpieces.

Key Features

Superior Production Capacity

Unlike single-layer pressing machines, its multi-station design enables simultaneous pressing of multiple workpieces, which helps shorten batch cycle times and streamline the overall production workflow. The synchronized multi-cylinder hydraulic delivery system provides relatively balanced force distribution across the full panel surface, helping mitigate panel delamination and poor bonding caused by uneven pressure. The horizontal layout simplifies loading and unloading operations for large panels compared with conventional vertical presses. Large platens can accommodate oversized workpieces. Built-in silicone cushions help protect panel finish and reduce indentation defects. Customization options are available to match factory site conditions and production layouts.

Security Guarantee

The heavy-duty welded frame offers structural stability under long-term continuous operation. The hydraulic system is equipped with standard industrial protective assemblies to help lower the risk of fluid leakage. The centralized electric control unit provides a convenient human-machine interface for managing the full pressing workflow. Mechanical limit stops restrict platen travel to help avoid over-stroke hazards. The electric heating unit maintains a controlled moderate temperature range, helping prevent thermal damage to raw materials and adhesive layers. Operators should follow standard operating procedures. Periodic inspection of pipelines and electrical components can further enhance on-site operational safety.

Application Areas

This horizontal laminating press is widely used by composite panel manufacturers. It is suitable for laminating honeycomb panels, magnesium-based composite boards, sandwich insulation panels, architectural cladding panels, and metal composite panels. It supports the production of building decorative materials, clean-room panels, and exterior wall cladding products. It can handle both custom small-batch orders and regular mass production. It can be connected with gluing machines, panel turnover machines, and other upstream and downstream units to form a complete composite panel production line.

Maintenance and Upkeep

Daily maintenance focuses on the hydraulic system. Oil cylinders and pipe joints should be regularly checked for leakage, and hydraulic oil should be replaced following official specifications to maintain stable hydraulic output. Silicone cushions are wearing parts; their surface condition should be routinely inspected, and worn or damaged cushions should be replaced promptly to prevent scratching of workpieces. Electrical wiring and heating components should be inspected, and dust and debris should be removed to ensure proper heat dissipation and reliable electrical contact. Fasteners on the frame and platens should be re-tightened periodically. Hydraulic and electrical assemblies should not be disassembled by unqualified personnel. For long-term shutdown, dust-proof protection should be applied, and platens should be kept in a safe open position. All maintenance work must be performed under power-off and pressure-release conditions.

Technical Specifications

Parameter	Specification
Pressure mode	Horizontal pressing
Number of layers	10 layers, with a 3 cm thick self-adhesive silicone pad on each layer
Pressure plate size	3200mm2400mm42mm*11 pieces
Pressure plate spacing	150mm
Maximum temperature	60 ℃
Maximum pressure	200T
Number of oil cylinders	9 pieces (90mm*125mm)
Hydraulic system power	11KW
Oil pump motor power	4KW
Heating method	Electric heating
Heating power	72KW
Weight (approx)	About 40 tons
Overall dimensions	650036004800mm (customizable)

Corporate Advantages

Two In-House Factories = Better Prices, Faster Delivery

We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.

More than 30 Senior Engineers, Custom-Built for You

Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making--we'll build exactly what you need.

CE & ISO 9001 Certified, Global-Ready

Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations--ready to plug and play anywhere in the world.

More than 50 Countries, 1000+ Projects, Experienced in Design and Manufacturing

We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use--proven in real factories worldwide.

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48 hours
Free video training for operators and provision of process guidance manuals
Lifetime technical support and software upgrade services

Product Introduction

Company Showcase

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2016, selling to Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), Eastern Asia (2.00%). We have over 110 employees.

Why should you buy from us not from other suppliers?

More than 20 years in wooden machinery industry. We have two factories covering an area of over 20,000 square meters. We have over 130 professional employees, including a senior design team consisting of over 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We provide comprehensive installation, commissioning, and operator training to ensure that your machine can be put into production immediately upon arrival.

How can we guarantee quality?

Confirm the required functions of the machine through communication with the customer
Our engineers complete the machine drawing design according to customer requirements
Engineers provide on-site guidance for a series of operations such as cutting, welding, and assembly of machines
Quality inspectors conduct full process testing of the functionality of each machine
Engineers and project leaders will conduct another inspection before shipment

What can you buy from us?

Hydraulic cold presses
Single-layer and multi-layer hot presses
Glue spreading machines
Automatic feeder
Turnover machine
Automatic palletizer
Non-standard automated production lines of various specifications

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash
Language Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi
