4000x2000mm Work Platen 6-Cylinder 50T Hydraulic Cold Press Machine for Aluminium Honeycomb Panel Production

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

50T

Work Platen Size:

4000*2000mm

Oil Cylinder Specification:

100mm * 6pcs

Motor Power:

5.5kw

Workd Effctively:

1000mm /1300mm / 1500mm / Customizable

Overall Dimensions （Standard Model）:

4500*2000*3700mm

Weight (approx):

6000kg

Packaging Details:

Film with Foam

Highlight:

50T Hydraulic Cold Press Machine

6-Cylinder Hydraulic Cold Press Machine

Honeycomb Panel Hydraulic Cold Press Machine

Product Description

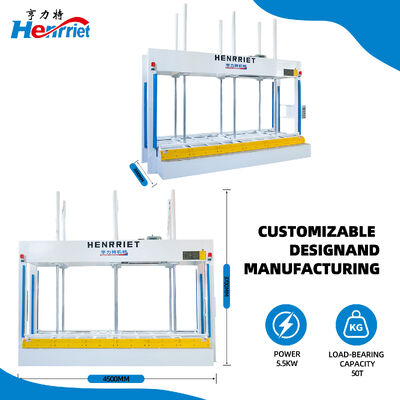

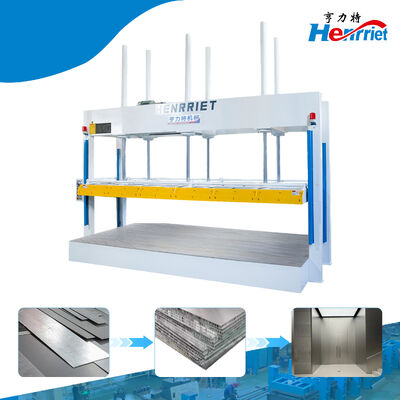

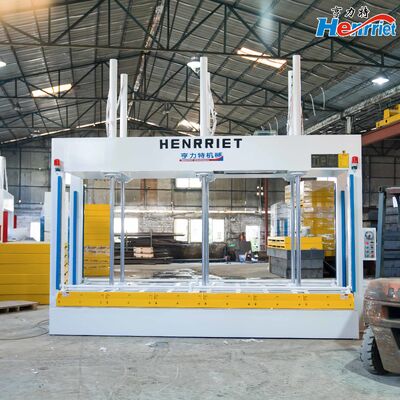

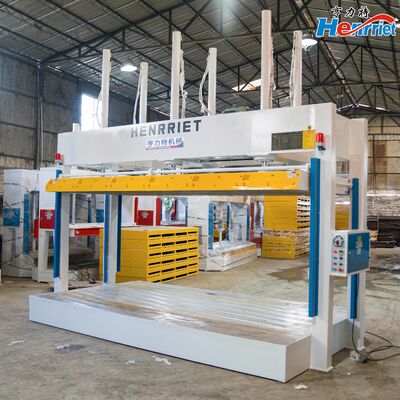

Large Platen 4000x2000mm 6‑Cylinder 50T Cold Press HLY‑50T

Product Overview

The double-row 6-cylinder cold press is a heavy-duty hydraulic cold-pressing unit developed for room-temperature pressing procedures of various panels. Adopting a double-row multi-cylinder layout, it delivers consistent pressing force via the hydraulic system to complete panel bonding and shaping without heating. Built with a robust frame for stable operation, this machine fits continuous factory-production environments and delivers dependable mechanical compression for panel adhesive curing.

Key Features

Superior Production Capacity: Multi-cylinder arrangement distributes pressure evenly across the platen surface, reducing localized pressure inconsistencies. Spacious working area accommodates multiple workpieces per cycle and enables single-pass processing of large-format panels.
Security Guarantee: Standard hydraulic protection components guard against risks associated with over-pressure conditions. Reinforced machine frame preserves structural integrity under high-load compression with integrated operator-safety protocols.
Application Areas: Supports composite panel applications including woodworking, furniture production, wooden door pressing and forming, cabinet panels, solid-wood edge-glued boards, honeycomb panels, sandwich core panels, and architectural decorative panels.
Maintenance and Upkeep: Routine inspection of hydraulic cylinders and pipe connections, hydraulic oil filtration maintenance, mechanical fastener verification, guide rail lubrication, and electrical cabinet servicing with complete maintenance records.

Technical Specifications

Specification	Value
Maximum Pressure	50T
Work Platen Size	4000 × 2000mm
Oil Cylinder Specification	100mm × 6pcs
Motor Power	5.5kw
Work Effectively	1000mm / 1300mm / 1500mm / Customizable
Overall Dimensions (Standard Model)	4500 × 2000 × 3700mm
Weight (approx)	6000kg

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups
30+ Senior Engineers: Custom-built solutions tailored to your production needs, floor space, and budget
CE & ISO 9001 Certified: Global-ready equipment meeting international electrical, mechanical, and safety regulations
50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use

Service Support

Warranty: 1 year
Packaging: Film with foam
Customer Service: 24-hour hotline, respond to repair needs within 48 hours
Training: Free video training for operators and provision of process guidance manuals
Technical Support: Lifetime technical support and software upgrade services

Product Introduction

Double-Row 6-Cylinder Hydraulic Cold Press Machine

Company Overview

Manufacturing Facilities

Production Equipment

Manufacturing Expertise

International Business

Advanced Manufacturing

Industry Exhibitions

Packaging & Logistics

Certificates & Honors

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2016, with sales to Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), Eastern Asia (2.00%). We have over 110 employees.

Why should you buy from us not from other suppliers?

More than 20 years in wooden machinery industry. We have two factories covering an area of over 20,000 square meters. We have over 130 professional employees, including a senior design team consisting of over 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We provide comprehensive installation, commissioning, and operator training to ensure that your machine can be put into production immediately upon arrival.

How can we guarantee quality?

Confirm the required functions of the machine through communication with the customer; Our engineers complete the machine drawing design according to customer requirements; Engineers provide on-site guidance for a series of operations such as cutting, welding, and assembly of machines; Quality inspectors conduct full process testing of the functionality of each machine; Engineers and project leaders will conduct another inspection before shipment.

What can you buy from us?

Hydraulic cold presses, Single-layer and multi-layer hot presses, Glue spreading machines, Automatic feeder, Turnover machine, Automatic palletizer, Non-standard automated production lines of various specifications.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash; Language Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
