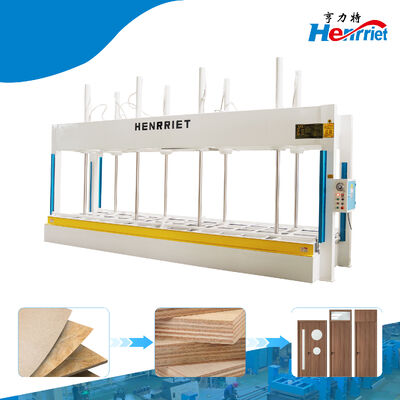

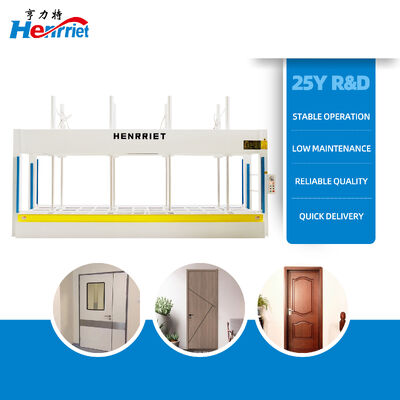

Double-Row 8-Cylinder Hydraulic Cold Press Machine with 8000x2000mm Work Platen and 50T Maximum Pressure

Double-Row 8-Cylinder Hydraulic Cold Press Machine with 8000x2000mm Work Platen and 50T Maximum Pressure

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

50T

Work Platen Size:

8000*2000mm

Oil Cylinder Specification:

100mm * 8pcs

Motor Power:

5.5kw

Workd Effctively:

1000mm /1300mm / 1500mm / Customizable

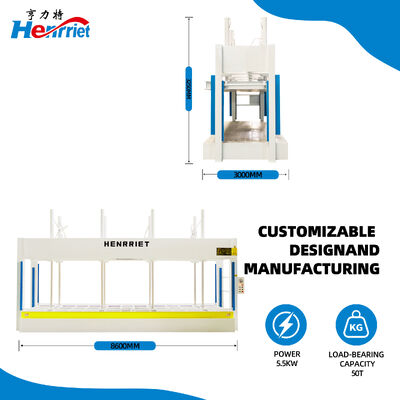

Overall Dimensions （Standard Model）:

8600*3000*3250mm

Weight (approx):

10000kg

Packaging Details:

Film with Foam

Highlight:

50T Hydraulic Cold Press Machine

8000x2000mm Hydraulic Cold Press Machine

Effective Hydraulic Cold Press Machine

Product Description

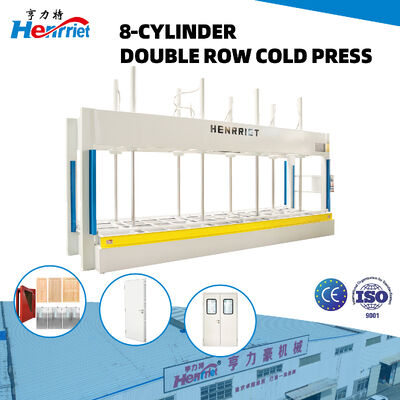

Double-Row 8-Cylinder Hydraulic Cold Press Machine for Door Panel Manufacturers with Multi-Point Pressing for Bonding and Lamination

The Double-Row 8-Cylinder Hydraulic Cold Press Machine is engineered for large-format panel bonding, lamination and pressing operations. Its multi-cylinder hydraulic pressing framework ensures an even distribution of pressing force throughout the working zone, making it well suited for honeycomb panels, sandwich composites, composite boards and a range of door panel applications.

Distinct from cold press equipment primarily intended for standard woodworking panels, this hydraulic panel press accommodates tasks that call for a broader pressing area and multiple pressing points. The hydraulic system enables the pressing process to be fine-tuned in response to material structure, adhesive system and specific production requirements.

Key Features

Superior Production Capacity

When processing honeycomb panels, sandwich composites and door panels, production efficiency is influenced by factors beyond pressing speed alone — panel dimensions, loading approach, adhesive curing behavior and the effective utilization of the pressing area all play a role. A large-format hydraulic cold press can help minimize repeated panel repositioning and streamline integration with upstream and downstream workflows.

The double-row eight-cylinder configuration is well matched to panel applications that call for distributed pressing. Multiple hydraulic pressing points function in coordination to deliver a more balanced pressing arrangement aligned with panel structure and bonding process, contributing to improved control over panel contact and surface flatness.

For door panels, honeycomb panels and large sandwich structures, the machine can serve as a standalone pressing unit or be incorporated into conveying, adhesive application and other supporting processes.

Security Guarantee

Safety in hydraulic cold pressing encompasses the hydraulic system, moving components, working area and responses to abnormal operating conditions. Well-regulated hydraulic control, robust mechanical construction and clearly delineated operating zones are key factors in helping to reduce operational risks.

Throughout production, loading, positioning, pressing and unloading should be carried out in accordance with the machine's operating procedures. Hydraulic lines, connections, mechanical stops and the control system should also be subject to routine inspection. For varying materials and adhesive processes, appropriate pressing conditions should be confirmed prior to commencing regular production.

Application Areas

The Double-Row 8-Cylinder Hydraulic Cold Press Machine is primarily utilized in panel processing industries that call for large-area pressing and controlled bonding.

Typical applications include:

Aluminum Honeycomb Panels: Bonding face sheets with honeycomb cores
Honeycomb Sandwich Panels: Pressing multi-layer structural materials
Sandwich Composite Materials: Bonding different skins and core materials
Wooden Doors: Pressing door cores, panels and decorative materials
Aluminum Doors: Processing aluminum door panels and composite structures
Composite Doors: Bonding multi-layer door panel structures
Stainless Steel Doors: Laminating metal skins with internal structural materials
Furniture and Panel Manufacturing: Pressing large decorative and composite panels

Maintenance and Upkeep

The sustained operating condition of a hydraulic cold press is closely linked to the upkeep of its hydraulic system, mechanical connections and moving components. Daily inspections should center on hydraulic oil condition, hoses and fittings, as well as the working status of hydraulic cylinders, guide components and moving mechanisms.

The pressing area should be maintained in a clean state to prevent adhesive residue from interfering with panel positioning or machine operation. Mechanical connections should be examined in line with operating frequency, while the control system and safety devices should likewise be incorporated into the regular maintenance schedule.

For facilities engaged in continuous production, keeping an equipment service record is advisable. Documenting hydraulic inspections, lubrication activities, fastener checks and any abnormal conditions can assist in identifying potential issues at an early stage and supporting consistent machine performance.

Technical Specifications

Technical Data	Specifications
Maximum pressure	50T
Work platen size	8000×2000mm
Oil cylinder specification	100mm × 8pcs
Motor power	5.5kw
Work effectively	1000mm /1300mm / 1500mm / Customizable
Overall dimensions (Standard Model)	8600×3000×3250mm
Weight (approx)	10000kg

Company Advantages

Two In-House Factories = Better Prices, Faster Delivery

We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.

More than 30 Senior Engineers, Custom-Built for You

Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.

CE & ISO 9001 Certified, Global-Ready

Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.

More than 50 Countries, 1000+ Projects, Experienced in Design and Manufacturing

We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.

Service Support

Warranty: 1 year

Packaging: Film with foam

24-hour customer service hotline, respond to repair needs within 48 hours

Free video training for operators and provision of process guidance manuals

Lifetime technical support and software upgrade services

Product Introduction

Company Introduction

Corporate Advantages

Visitors and Communication

Production Level and Manufacturing Process

Exhibition and Exchange

Packaging and Logistics

Certificates and Honors

Frequently Asked Questions

1. Who are we?

We are based in Guangdong, China, starting from 2016, selling to Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), Eastern Asia (2.00%). We have over 110 employees.

2. Why should you buy from us not from other suppliers?

More than 20 years in wooden machinery industry. We have two factories covering an area of over 20,000 square meters. We have over 130 professional employees, including a senior design team consisting of over 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We provide comprehensive installation, commissioning, and operator training to ensure that your machine can be put into production immediately upon arrival.

3. How can we guarantee quality?

Confirm the required functions of the machine through communication with the customer
Our engineers complete the machine drawing design according to customer requirements
Engineers provide on-site guidance for a series of operations such as cutting, welding, and assembly of machines
Quality inspectors conduct full process testing of the functionality of each machine
Engineers and project leaders will conduct another inspection before shipment

4. What can you buy from us?

Hydraulic cold presses
Single-layer and multi-layer hot presses
Glue spreading machines
Automatic feeder
Turnover machine
Automatic palletizer
Non-standard automated production lines of various specifications

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery

Accepted Payment Currency: USD, EUR, CNY

Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash

Language Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi
