Sliding Table Hydraulic Cold Press Machine with 100 Tons Maximum Pressure and 3000X1500mm Press Plate Size

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Press Plate Size:

3000X1500mm

Maximum Opening Distance Of Pressure Plate:

450mm

Push Plate Specifications:

3210X1500X40X1 Piece

Oil Cylinder Specifications:

Φ100XΦ70X550 Limit Stroke*6items

System Power:

4KW

Push Plate Power:

3KW (Frequency Conversion Speed Regulation)

System Pressure:

21MPA

Maximum Pressure:

100 Tons

Size:

3760*3500*2035mm

Weight(approximately):

6800kg

Packaging Details:

Film with Foam

Highlight:

100 ton hydraulic cold press machine

sliding table cold press machine

3000x1500mm hydraulic press plate

Product Description

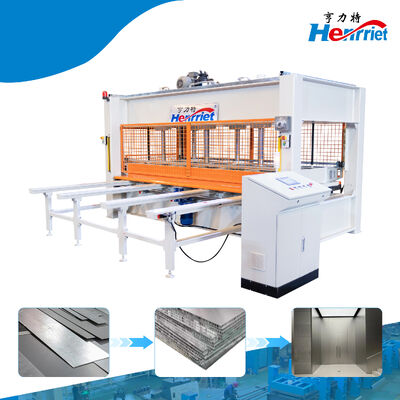

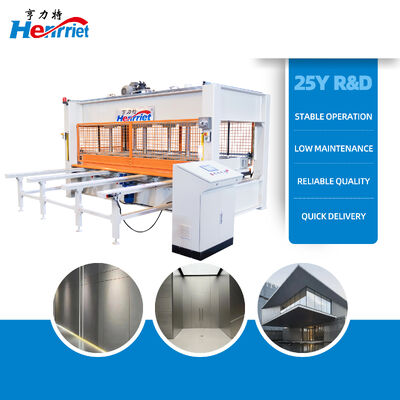

Sliding Table Hydraulic Cold Press Machine

Product Overview

This industrial-grade sliding-table hydraulic cold press machine is designed for panel lamination, composite material bonding, and structural assembly applications. Utilizing hydraulic technology for consistent pressing force, it enables effective adhesion between material layers through cold-pressing processes.

The sliding-table feeding mechanism facilitates efficient material handling, making it ideal for batch-production workflows in wood door manufacturing, furniture production, and composite board fabrication.

Key Features

Productivity-Oriented Design: Configured for continuous panel processing with stable hydraulic performance and sliding table arrangement for efficient large-format panel handling
Safety & Reliability: Industrial-grade structural design with high-strength frame, controlled pressure delivery, and comprehensive safety features
Versatile Applications: Suitable for wood doors, furniture panels, composite materials, and building panels with adjustable pressing parameters
Easy Maintenance: Designed for long-term stable operation with accessible maintenance points and routine inspection requirements

Technical Specifications

Press Plate Size	3000×1500mm
Maximum Opening Distance	450mm
Push Plate Specifications	3210×1500×40×1 piece
Oil Cylinder Specifications	Φ100×Φ70×550 Limit stroke×6 pieces
System Power	4KW
Push Plate Power	3KW (Frequency conversion speed regulation)
System Pressure	21MPA
Maximum Pressure	100 tons
Dimensions	3760×3500×2035mm
Weight (Approximately)	6800kg

Manufacturing Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups
30+ Senior Engineers: Custom-built solutions for your production needs, floor space, and budget
CE & ISO 9001 Certified: Global-ready equipment meeting international safety and quality standards
50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use

Service Support

Warranty: 1 year
Packaging: Film with foam protection
24-hour customer service hotline with 48-hour response to repair needs
Free video training for operators and process guidance manuals
Lifetime technical support and software upgrade services

Product Gallery

Machine in Operation

Corporate Overview

Manufacturing Facilities

Advanced Equipment

Quality Assurance

Technical Exchange

Production Process

Industry Exhibitions

Packaging & Logistics

Certifications & Honors
