50T Maximum Pressure Cold Press Machine with Automatic Conveying and Turning for 800mm Thickness Panel Lamination

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE，ISO9001

Maximum pressure:

50T

Pressure plate size:

3400mm*2200mm

Specification of track oil cylinder:

6pcs*870mm*100mm

Power:

5.5kw

Overall dimensions:

3900mm*2500mm*2900mm

Maximum processing thickness:

800mm

Packaging Details:

Film with Foam

Highlight:

50T cold press machine for lamination

automatic conveying veneer press machine

800mm thickness panel press machine

Product Description

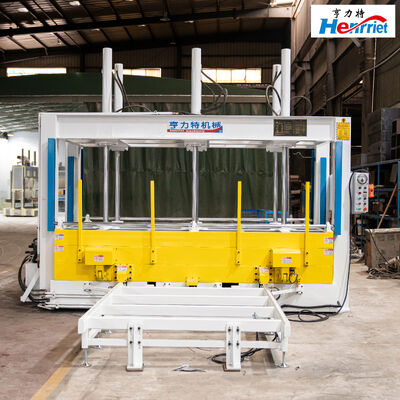

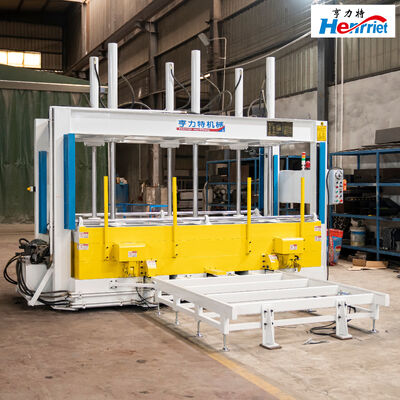

Factory Direct Fully Automatic Tilting & Conveying Cold Press

Product Overview

Specialized for wood door core filling & composite applications, this 50-ton heavy-duty hydraulic cold press machine is designed for solid wood composite board flat press forming. Ideal for aluminum honeycomb panels and various composite materials.

Key Features

Automatic Conveying and Turning: Continuous production capability with reduced manual handling
Stable Hydraulic Performance: Uniform pressure distribution for reliable bonding quality
Heavy-Duty Construction: Robust steel frame for long-term industrial operation
Versatile Applications: Suitable for wood doors, furniture panels, honeycomb composites, PVC panels, and WPC boards
Easy Maintenance: Chain-track conveying system with 52,000 kg lift capacity and regular maintenance protocols

Technical Specifications

Specification	Value
Maximum Pressure	50T
Pressure Plate Size	3400mm × 2200mm
Maximum Processing Thickness	800mm
Oil Cylinder Specifications	6pcs × 70mm × 100mm
Power	5.5KW
Overall Dimensions	3900mm × 2500mm × 2900mm

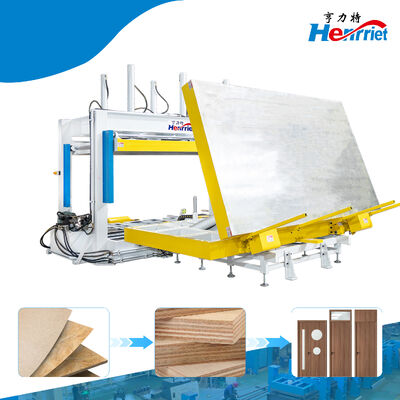

Additional Features	Lower platform with in/out function, 80-degree tilting function, 6-ton conveyor table load capacity

Company Advantages

Direct Factory Pricing: Two in-house manufacturing facilities eliminate middlemen markups
Custom Engineering: 30+ senior engineers design solutions tailored to your production needs
Global Compliance: CE & ISO 9001 certified for international operation
Proven Experience: 1,000+ projects across 50+ countries with heavy-duty engineering

Service & Support

Warranty: 1 year comprehensive coverage

Packaging: Protective film with foam insulation

Customer Support: 24-hour hotline with 48-hour response for repair needs

Training: Free video training and process guidance manuals

Technical Support: Lifetime technical assistance and software upgrades
