Manual Cold Press Laminator with 50T Max Pressure and 2800*1300mm Work Platen for Sandwich Panel Production with Pulley Feed System

Manual Cold Press Laminator with 50T Max Pressure and 2800*1300mm Work Platen for Sandwich Panel Production with Pulley Feed System

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Max Pressuer:

50T

Work Platen Size:

2800*1300mm

Oil Cylinder Specification:

125mm * 2pcs

Motor Power:

4kw

Workd Effctively:

1300mm

Overall Dimensions (Standard Model):

3300*1300*3800mm

Weight (Standard Model-about):

2300kg

Packaging Details:

Film with Foam

Product Description

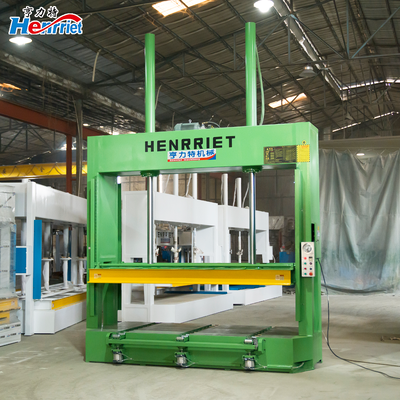

Manual Cold Press Laminator with Pulley Feed for Production Steel Sandwich Panels

The manual hydraulic cold laminating machine with integrated feed pulley system is an entry-level yet highly functional industrial device designed for cost-sensitive small and medium manufacturers producing sandwich composite panels. Its core architecture comprises a manual hydraulic pump, a rigid laminating platen, an intake and outlet roller track, and mechanical travel limits. What sets this equipment apart is the pulley bed integrated into the machine base—multiple load-bearing rollers allow heavy substrate boards to glide in and out with minimal effort, reducing the need for multiple handlers and lowering material transport costs.

Key Features

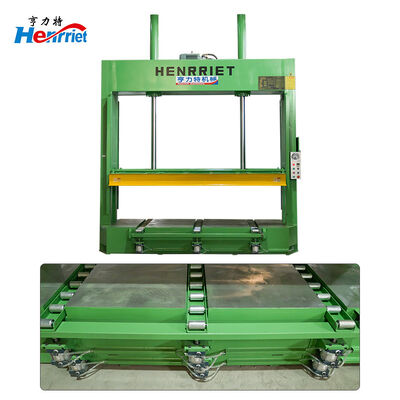

Superior Production Capacity: When the operator finishes positioning the material stack on the roller bed, the sliding carriage moves smoothly through pulley grooves under the press platen. After the pressing cycle completes, the carriage rolls out via the same pulley track onto the transport rails at the discharge end. At that point, a driven shaft rotates the transport rollers, conveying the finished panel effortlessly to the next workstation.
Integrated Safety and Protection: The control panel is equipped with a prominently positioned emergency stop pushbutton. The machine is constructed from thick-section steel plate with full-frame welding, delivering the structural rigidity required to resist deformation under sustained load. The pulley transport system incorporates critical safety devices including travel limit switches installed at both ends of the pulley grooves.

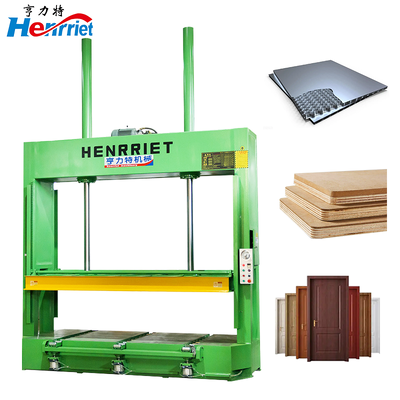

Wide-Ranging Application Versatility: Suitable for brick-pattern sandwich panels with aluminum-zinc coated color steel sheets and steel-faced sandwich composite panels with color-coated steel or galvanized sheet facings bonded to lightweight core materials.
Streamlined Maintenance and Service Support: The pulley and roller assemblies are designed for smooth operation with minimal maintenance requirements. Connection bolts between pulley support brackets and machine base should be periodically inspected and re-torqued as needed.

Technical Specifications

Max Pressure	50T
Work Platen Size	2800×1300
Oil Cylinder Specification	125mm × 2pcs
Motor Power	4kw
Work Effectively	1300mm
Overall Dimensions (Standard Model)	3300×1300×3800mm
Weight (Standard Model - About)	2300 KG

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen or markups
Expert Engineering Team: More than 30 senior engineers providing custom-built solutions
Global Certification: CE & ISO 9001 certified, ready for international markets
Proven Experience: Over 50 countries served with 1000+ custom designs completed
