Short Cycle Hot Pressing Automation Line with 80 T Maximum Pressure, 4600mm*2650mm Work Platen Size, and 20 MPa System Pressure

Short Cycle Hot Pressing Automation Line with 80 T Maximum Pressure, 4600mm*2650mm Work Platen Size, and 20 MPa System Pressure

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

80 T

Work Platen Size:

4600mm*2650mm

Systm Pressure:

20 MPa

Max.platen Opening:

300mm

Maximum Temperature:

100℃

Working Level:

1-layer

Oil Cylinder Specification:

350mm*70mm * 6pcs

Hydraulic Pump Power:

5.5kw

Hot Oil Pump Power:

2.2kw

Heating Pipe Power:

72kw

Overall Dimensions:

5750*3553*2300mm

Weight (about):

18000 Kg

Packaging Details:

Film with Foam

Product Description

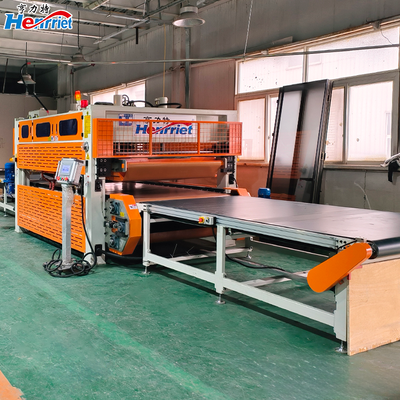

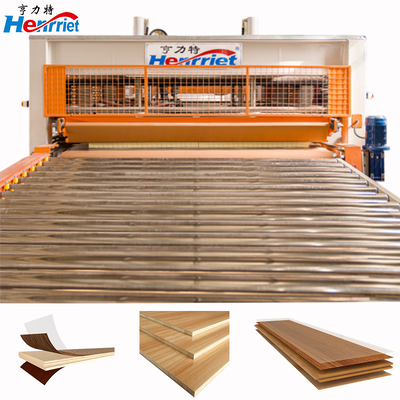

Short Cycle Hot Pressing Automation Line with Integrated Conveyor System

High-Efficiency Solution for Lightweight Wood Veneers

Product Overview

The automatic conveying production line of short cycle hot press laminating machine is a complete process continuous production equipment that integrates three modules: short cycle hot press laminating machine, automatic roller conveyor system, and PLC intelligent control center. The entire process of sheet metal from feeding to discharging does not require manual handling, and automatically completes the complete closed loop of "feeding → conveying → short cycle hot press pressing → discharging".

Key Features

Superior Production Capacity

Short cycle rapid solidification combined with full process automation delivers capacity multiplier leap. Short cycle technology shortens the pressing cycle of single boards, and the full process automation conveyor realizes continuous production without manual transfer waiting window period.

Single shift production capacity is several times that of traditional single machines
Easily handles bulk orders for real estate decoration, hotel engineering, medical construction
Accurate temperature and pressure control with automatic alignment reduces product loss
Eliminates common industry problems: wrinkling, glue penetration, bulging, delamination
Three configuration options: thin plate short cycle line, standard short cycle line, and intelligent short cycle line

Integrated Safety and Protection

Overtemperature protection device continuously monitors critical components
Automatic alarm and heating system cutoff when temperature exceeds safety threshold
Intelligent temperature control system with automatic heating regulation
Emergency brake button on equipment operation panel for employee safety

Wide-Ranging Application Versatility

Lightweight wood decorative panel: Suitable for lightweight wood fiber board/foam wood plastic board with natural or technological wood veneer
Antibacterial decorative panel: Efficient antibacterial, anti-mold, anti-fouling properties for hospitals, schools, laboratories, food processing plants
SPC stone plastic wood sandwich panel: Waterproof, wear-resistant, environmentally friendly, flame-retardant, slip-resistant, bacterial-resistant with dimensional stability

Easy Maintenance and Technical Support

Comprehensive tightening of connecting bolts
Conveyor belt tension, deviation, and wear inspection
Filter cleaning for pneumatic system and hydraulic return oil pipeline
Motor operating current check and reducer lubricating oil replacement

Technical Specifications

Maximum pressure	80 T
Work platen size	4600mm × 2650mm
System pressure	20 MPa
Maximum platen opening	300mm
Maximum temperature	100℃
Working level	1-layer
Oil cylinder specification	350mm × 70mm × 6pcs
Hydraulic pump power	5.5kw
Hot oil pump power	2.2kw
Heating pipe power	72kw
Overall dimensions	5750 × 3553 × 2300mm
Weight (approximately)	18000kg

Competitive Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups
Custom-Built Solutions: 30+ senior engineers design machines around your production needs, floor space, and budget
Global Certification: CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations
Proven Experience: Shipped to 50+ countries with 1000+ custom designs for long-term, heavy-duty use
