Customized Two-Layer Hot Press Laminating Machine with 300 T Pressure and Precision Temperature Control for Furniture Panels

Customized Two-Layer Hot Press Laminating Machine with 300 T Pressure and Precision Temperature Control for Furniture Panels

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

300 T

Work Platen Size:

2300*1700mm

Systm Pressure:

20 Mpa

Max.platen Opening:

350mm

Maximum Temperature:

100℃

Working Level:

2-layer

Oil Cylinder Specification:

700mm*200mm * 4pcs

Hydraulic Pump Power:

7.5kw

Hot Oil Pump Power:

1.5kw

Overall Dimensions:

2830*1700*3120mm

Weight (about):

15000kg

Packaging Details:

Film with Foam

Product Description

Customized Two-Layer Hot Press Laminating Machine

Product Overview

This customized two-layer hot press laminating machine is specifically designed for composite material lamination and shaping. It features physical panel operation with hydraulic drive structure, allowing independent temperature control and pressure adjustment for both upper and lower hot press plates. The machine completes double-sided synchronous lamination in one stroke, with heating plates made of high-quality alloy steel for uniform thermal conductivity and precise temperature control.

Key Features

Superior Production Capacity

Double layer dual station design doubles production capacity
Upper and lower layers press simultaneously for bulk order handling
Synchronous heating and pressurization saves energy and production time
Precise temperature and pressure control ensures full yield
Eliminates veneer bulging, delamination, burns, and warping
Compact design reduces equipment footprint and saves factory space

Integrated Safety and Protection

Overtemperature and overpressure protection with automatic shutdown
Electrical system with short circuit, leakage, and overload protection
Dustproof and moisture-proof electrical control cabinet
Automatic pressure relief prevents pipe bursting or plate cracking

Wide-Ranging Application Versatility

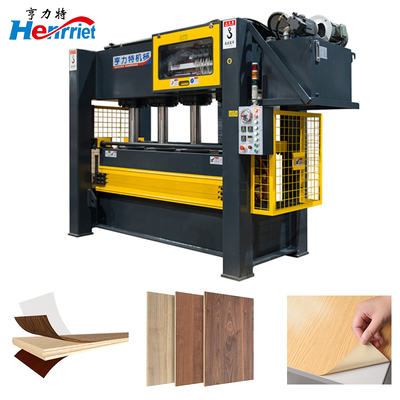

Furniture Decorative Panel: Smooth surface, clear texture, wear-resistant, high environmental protection level, strong nail holding force. Substrates include medium fiber board, particleboard, multi-layer solid wood with melamine paper, technology wood veneer, or solid wood thin veneer coatings.

Architectural Wood Decorative Panel: Fireproof, flame-retardant, moisture-proof, weather resistant with strong stability. Used for indoor walls, ceilings, background walls, and hotel club decorations with natural wood veneer or flame-retardant decorative paper surfaces.

Technical Specifications

Maximum Pressure	300 T
Work Platen Size	2300*1700mm
System Pressure	20 MPa
Maximum Platen Opening	350mm
Maximum Temperature	100℃
Working Level	2-layer
Oil Cylinder Specification	700mm200mm 4pcs
Hydraulic Pump Power	7.5kW
Hot Oil Pump Power	1.5kW
Heating Pipe Power	72kW
Overall Dimensions	283017003120mm
Weight (approx.)	15000kg
