Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm

Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm

Brand Name: Henrriet
MOQ: 1
Price: Online/offline communication
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001
Gel Dripping Width:
200-1300mm (customizable)
Coating Speed:
1-12 Meters/minute (adjustable)
Gel Dripping Length:
300mm-4500mm (customizable)
Product Width:
200mm-1300mm (customizable)
Ratio Adjustment:
The Mixing Ratio Can Be Adjusted Between 2:1-5:1
Environmental Requirements:
Temperature 5-45 ℃, Humidity ≤ 80%
Effective Volume Of AB Tanks:
40L (automatic Feeding)
Glue Consumption Per Square Meter:
Adjustable From 200g To 450g
Conveyor Line:
Width 1300mm, Height 850mm ± 50mm, Length Customizable
Temperature Adjustment Range Of Material A Tank:
Adjustable From 20-30 ℃
Adhesive Viscosity:
4000-12000 CPS (customizable)
Control Method:
PLC Programming+touch Screen
Packaging Details:
Film with Foam
Product Description
Automatic Glue Spraying Conveyor Line for Carbon Fiber Composite Materials
Product Overview

This advanced automatic glue spraying conveyor line is specifically engineered for carbon fiber composite materials used in drone body fan blades, skis, and other high-performance applications. It addresses the limitations of traditional manual gluing methods with precision automation, ensuring uniform adhesive distribution and enhanced production efficiency.

Key Features
  • Superior Production Capacity: Continuous high-speed operation with real-time adhesive adjustment, eliminating bottlenecks and reducing material waste
  • Integrated Safety and Protection: Multi-layered safety framework including electrical resilience, mechanical shielding, and chemical containment systems
  • Wide-Ranging Application Versatility: Suitable for carbon fiber panels, drone fuselage blades, skateboards, sports protective gear, and new energy vehicle components
  • Easy Maintenance and Technical Support: Simplified cleaning procedures and comprehensive maintenance protocols with daily inspection checkpoints
Technical Specifications
Specification Details
Gel Dripping Width 300-3000mm (customizable)
Coating Speed 1-12 meters/minute (adjustable)
Gel Dripping Length 500mm-8000mm (customizable)
Product Width 300mm-3000mm (customizable)
Ratio Adjustment Mixing ratio adjustable between 2:1-5:1
Environmental Requirements Temperature 5-45℃, humidity ≤80%
Effective Volume of AB Tanks 40L (automatic feeding)
Glue Consumption per Square Meter Adjustable from 100g to 400g
Conveyor Line Ground clearance 850mm ±50mm, customizable dimensions
Temperature Adjustment Range 20-30℃ adjustable for Material A Tank
Adhesive Viscosity 4000-12000CPS (customizable)
Power 5.75kw
Control Method PLC programming with touch screen interface
Company Advantages
  • Direct Manufacturing: Two in-house factories ensure competitive pricing and faster delivery without middlemen
  • Expert Engineering Team: 30+ senior engineers provide custom solutions tailored to your production needs
  • Global Compliance: CE & ISO 9001 certified equipment ready for international deployment
  • Proven Experience: 1000+ projects completed across 50+ countries with heavy-duty, reliable equipment
Service Support
  • 1-year comprehensive warranty
  • Professional packaging with film and foam protection
  • 24-hour customer service hotline with 48-hour response for repairs
  • Free video training for operators and process guidance manuals
  • Lifetime technical support and software upgrade services
Product Gallery
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 0

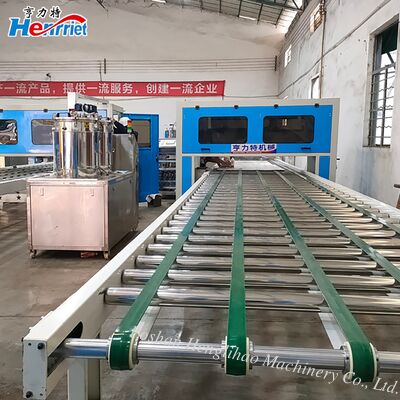

System Overview
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 1

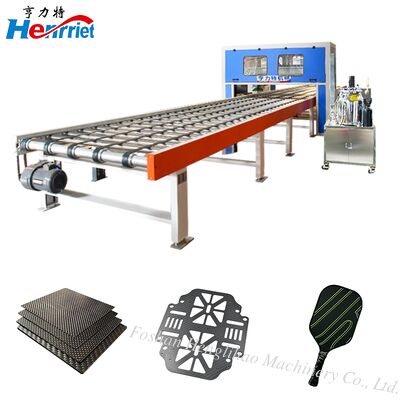

Application Scope
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 2

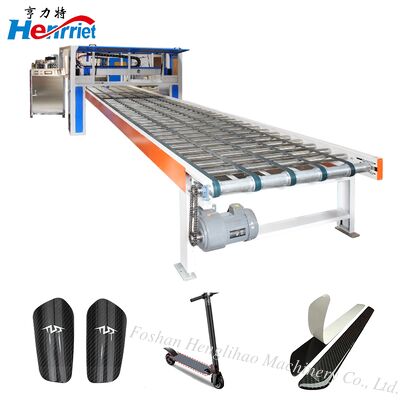

Product Display
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 3
Production Workshop
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 4
Product Details
Corporate Excellence
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 5
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 6
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 7
Corporate Advantages
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 8
Visitors and Communication
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 9
Manufacturing Process
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 10
Exhibition and Exchange
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 11
Packaging and Logistics
Automatic Glue Spraying Conveyor Line with PLC Programming + Touch Screen Control, Adjustable Coating Speed 1-12 Meters/Minute, and Customizable Gel Dripping Width 200-1300mm 12
Certificates and Honors
