Automatic Glue Spraying Machine for Sandwich Panels with PLC Control, Adjustable Speed 1-12m/min, and Customizable Width 200-1300mm

Automatic Glue Spraying Machine for Sandwich Panels with PLC Control, Adjustable Speed 1-12m/min, and Customizable Width 200-1300mm

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Gel Dripping Width:

200-1300mm (customizable)

Coating Speed:

1-12 Meters/minute (adjustable)

Gel Dripping Length:

300mm-4500mm (customizable)

Product Width:

200mm-1300mm (customizable)

Ratio Adjustment:

The Mixing Ratio Can Be Adjusted Between 2:1-5:1

Environmental Requirements:

Temperature 5-45 ℃, Humidity ≤ 80%

Effective Volume Of AB Tanks:

40L (automatic Feeding)

Glue Consumption Per Square Meter:

Adjustable From 200g To 450g

Conveyor Line:

Width 1300mm, Height 850mm ± 50mm, Length Customizable

Temperature Adjustment Range Of Material A Tank:

Adjustable From 20-30 ℃

Adhesive Viscosity:

4000-12000 CPS (customizable)

Control Method:

PLC Programming+touch Screen

Packaging Details:

Film with Foam

Product Description

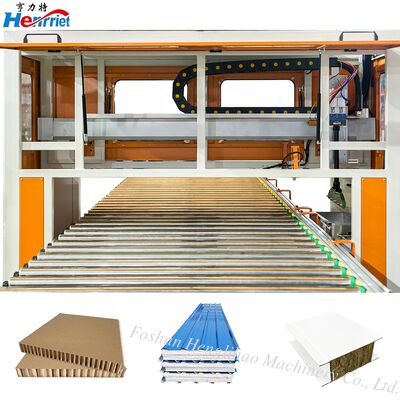

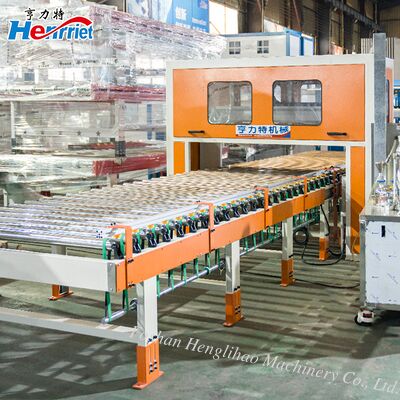

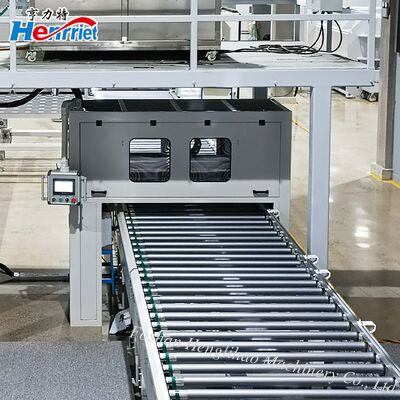

Rapid Automatic Glue Spraying Machine Production Line

Purpose-engineered automated adhesive dispensing system for sandwich metal sandwich panels and XPS fiber composite panels, combining precision mechanical engineering with user-centric automation.

Key Features

Superior Production Capacity: Fully automated operation eliminates manual processes, delivering uniform coating across panels with synchronized reciprocating motion. Integrated self-cleaning protocols and thermal conditioning ensure consistent performance.
Integrated Safety and Protection: Fail-safe emergency stop architecture, non-drip dispensing technology, enclosed fluid path integrity, and operator exposure mitigation for workplace safety.

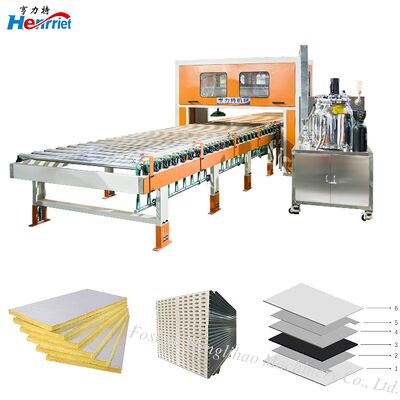

Wide-Ranging Application Versatility: Suitable for sandwich metal composite panels, XPS foam board processing, fiber-reinforced composite panels, and mineral wool panel processing.
Easy Maintenance and Technical Support: Pre-operation checks, automated cleaning cycles, and proactive system calibration supported by comprehensive technical assistance.

Technical Specifications

Gel Dripping Width	200-1300mm (customizable)
Coating Speed	1-12 meters/minute (adjustable)
Gel Dripping Length	300mm-4500mm (customizable)
Product Width	200mm-1300mm (customizable)
Ratio Adjustment	Mixing ratio adjustable between 2:1-5:1
Environmental Requirements	Temperature 5-45 ℃, humidity ≤ 80%
Effective Volume of AB Tanks	40L (automatic feeding)
Glue Consumption per Square Meter	Adjustable from 200g to 450g
Conveyor Line	Width 1300mm, height 850mm ± 50mm, length customizable
Temperature Adjustment Range of Material A Tank	Adjustable from 20-30 ℃
Adhesive Viscosity	4000-12000 CPS (customizable)
Power	5.75kw
Control Method	PLC programming + touch screen

Competitive Advantages

Direct Manufacturer Pricing: Two in-house factories eliminate middlemen, providing better prices and faster delivery
Custom Engineering: 30+ senior engineers design machines around your specific production needs, floor space, and budget
Global Compliance: CE & ISO 9001 certified, meeting international electrical, mechanical, and safety regulations
Proven Experience: 50+ countries, 1000+ projects with equipment engineered for long-term, heavy-duty use
