Automatic Conveying Production Line with Adjustable Gel Dripping Width and PLC Programming Control for Customizable Adhesive Viscosity

Automatic Conveying Production Line with Adjustable Gel Dripping Width and PLC Programming Control for Customizable Adhesive Viscosity

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Gel Dripping Width:

200-1300mm (customizable)

Coating Speed:

1-12 Meters/minute (adjustable)

Gel Dripping Length:

300mm-4500mm (customizable)

Product Width:

200mm-1300mm (customizable)

Ratio Adjustment:

The Mixing Ratio Can Be Adjusted Between 2:1-5:1

Environmental Requirements:

Temperature 5-45 ℃, Humidity ≤ 80%

Effective Volume Of AB Tanks:

40L (automatic Feeding)

Glue Consumption Per Square Meter:

Adjustable From 200g To 450g

Conveyor Line:

Width 1300mm, Height 850mm ± 50mm, Length Customizable

Temperature Adjustment Range Of Material A Tank:

Adjustable From 20-30 ℃

Adhesive Viscosity:

4000-12000 CPS (customizable)

Control Method:

PLC Programming+touch Screen

Packaging Details:

Film with Foam

Product Description

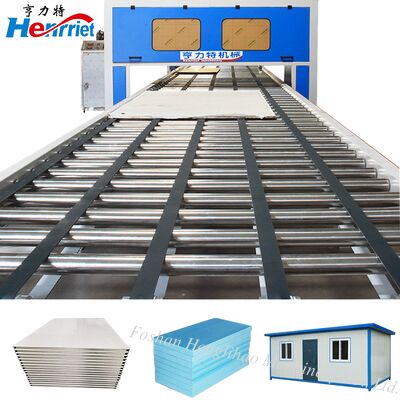

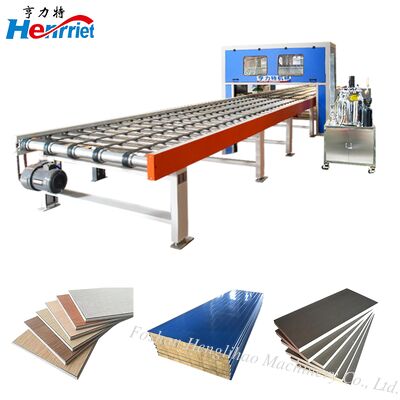

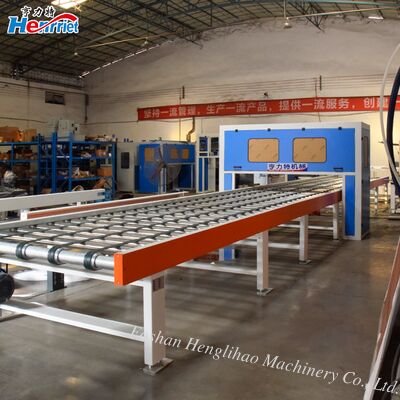

Large Automatic Conveying Production Line for Plate Gluing

Product Overview

This heavy-duty automated adhesive dispensing system is engineered for high-volume production of sandwich panels using rock wool, polyurethane foam board, and other core materials. Designed specifically for architectural and decorative panel manufacturing, it combines industrial-grade durability with precision dispensing technology to overcome the limitations of manual adhesive application processes.

Key Features

Superior Production Capacity: Enables uninterrupted, high-speed continuous production with precision traversing dispensing head that delivers consistent, uniform adhesive layers across full panel width. Dynamic parameter adjustment for various substrates from thin laminates to thick composite panels.
Integrated Safety and Protection: Comprehensive safety framework including robust electrical safeguarding, full mechanical enclosure, hermetic chemical containment, and operator exposure mitigation for reliable performance in demanding industrial environments.
Wide-Ranging Application Versatility: Optimized for metal sandwich composite panels, cleanroom-grade structural panels, and insulated building & cladding panels with compatibility for diverse material combinations.
Easy Maintenance and Technical Support: Streamlined maintenance protocols including integrated solvent flushing system, daily inspection routines, and comprehensive after-sales support throughout service life.

Technical Specifications

Parameter	Specification
Gel Dripping Width	300-3000mm (customizable)
Coating Speed	1-12 meters/minute (adjustable, speed varies depending on width)
Gel Dripping Length	500mm-8000mm (customizable)
Product Width	300mm-3000mm (customizable)
Ratio Adjustment	The mixing ratio can be adjusted between 2:1-5:1
Environmental Requirements	Temperature 5-45 ℃, humidity ≤ 80%
Effective Volume of AB Tanks	40L (automatic feeding)
Glue Consumption per Square Meter	Adjustable from 100g to 400g
Conveyor Line	Ground clearance 850mm ± 50mm, length and width can be customized
Temperature Adjustment Range of Material A Tank	Adjustable from 20-30 ℃
Adhesive Viscosity	4000-12000CPS (customizable)
Power	5.75kw
Control Method	PLC programming + touch screen

Competitive Advantages

Direct Manufacturing: Two in-house factories ensure better prices and faster delivery with no middlemen markups
Custom Engineering: 30+ senior engineers design machines around your specific production needs, floor space, and budget
Global Compliance: CE & ISO 9001 certified equipment ready for international deployment
Proven Experience: 50+ countries, 1000+ projects with equipment engineered for long-term, heavy-duty use
