Multi-layer hot press machine with 160 T maximum pressure 6-layer working level and 80℃ maximum temperature for sandwich panels and cold storage panels

Multi-layer hot press machine with 160 T maximum pressure 6-layer working level and 80℃ maximum temperature for sandwich panels and cold storage panels

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

160 T

Work Platen Size:

4000mmX1450mm

Systm Pressure:

20 MPa

Max.platen Opening:

100mm

Maximum Temperature:

80℃

Working Level:

8-layer

Oil Cylinder Specification:

110mm*80mm * 4pcs

Hydraulic Pump Power:

4kw

Hot Oil Pump Power:

2.2kw

Heating Pipe Power:

54kw

Overall Dimensions:

4580*2000mm*4866mm

Weight (about):

14000 Kg

Actual Maximum Size Of Composite Board:

3800mm*1350mm

Plate Thickness:

50mmX7 Pcs

Number Of Layers:

6-layer

Spacing:

120mm

Heating Cycle Motor:

3kw

Hydraulic System Motor Power:

7.5kw

Oil Cylinder And Quantity:

8 Pcs（110mm*80mm）

Heating System Power:

54KW

Total Power:

64.5KW

Weight (approximately):

23500 KG

Packaging Details:

Film with Foam

Highlight:

160 Ton Wood Veneer Press Machine

6-Layer Laminator Press Machine

4000mmX1450mm Work Platen Multi-layer Hot Press Machine

Product Description

Multi Layer Hot Press Machine for Sandwich Panels, Roof Panels & Cold Storage Panels

Product Overview

This cutting-edge multi-layer hot press system establishes a new benchmark for industrial bonding technology across a broad spectrum of panel manufacturing applications. It enables flawless integration of metal composite materials, architectural facade panels, and high-end decorative veneers.

Constructed on a high-performance hydraulic structural foundation paired with a flexible thermal control architecture, coordinated pressing stations operate in perfect unison through precision hydraulic regulation. This sophisticated layout supports simultaneous parallel processing across all pressing layers while fully preserving dimensional stability and pristine surface quality of finished products.

Key Features

Superior Production Capacity: Synchronized hydraulic actuation and energy-saving thermal zoning technology achieve efficient processing cycles with reduced energy consumption. Intelligent thermal management activates heating only as needed, while high-performance insulation minimizes heat loss.
Integrated Safety and Protection: Dual-circuit emergency response protocols immediately cut off all power supplies, hydraulic systems, and heating modules. Independent safety control modules for each pressing layer integrate automatic pressure relief, thermal shutdown protection, and real-time parameter monitoring.
Wide-Ranging Application Versatility: Suitable for metal sandwich panels, roof panels, partition boards, and cold storage panels with excellent fire resistance, sound insulation, and impact resistance properties.
Easy Maintenance and Technical Support: Regular cleaning and comprehensive inspections ensure optimal operational performance and product quality.

Technical Specifications

Specification	Value
Maximum Pressure	160 T
Work Platen Size	4000mm × 1450mm
Actual Maximum Size of Composite Board	3800mm × 1350mm
Plate Thickness	50mm × 7 pcs
Number of Layers	6-layer
Spacing	120mm
Heating Cycle Motor	3kw
Hydraulic System Motor Power	7.5kw
Oil Cylinder and Quantity	8 pcs (110mm × 80mm)
Heating System Power	54KW
Maximum Temperature	80℃
Total Power	64.5KW
Overall Dimensions	4580 × 2000mm × 4866mm
Weight (approximately)	23500 KG

Manufacturing Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen or markups
30+ Senior Engineers: Custom-built solutions designed around your production needs, floor space, and budget
CE & ISO 9001 Certified: Global-ready equipment meeting international electrical, mechanical, and safety regulations
50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline with 48-hour response to repair needs
Free video training for operators and process guidance manuals
Lifetime technical support and software upgrade services

Product Images

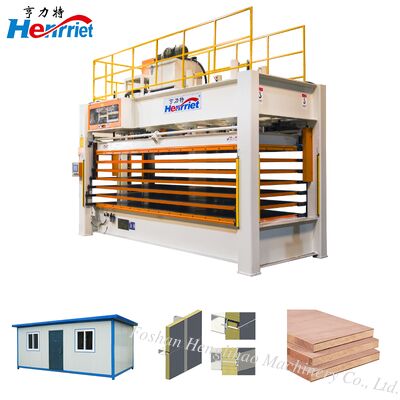

Machine Overview

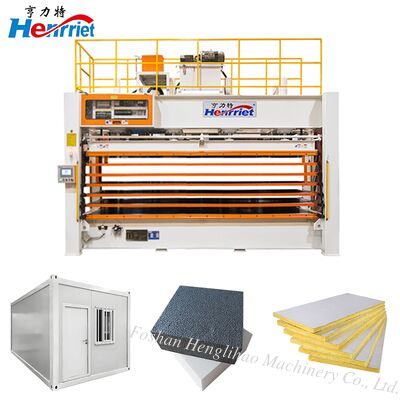

Scope of Application

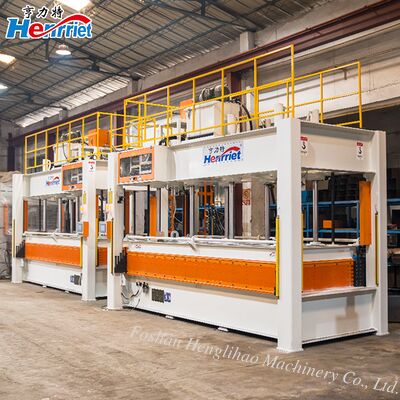

Production Workshop

Product Details
