| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

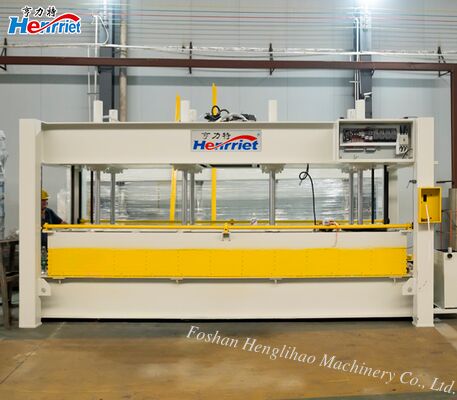

The multi-layer hot press machine stands as a robust production solution meticulously engineered for metal-clad and composite architectural panels. Its design caters to a wide range of applications, from aluminum-plastic laminates and fire-rated aluminum honeycomb panels to corrugated composite panels. The entire unit boasts an innovative three-dimensional stacked configuration, paired with independent temperature-regulated pressing technology. Its core structure integrates vertically aligned hydraulic-driven pressing assemblies and zoned thermal oil circulation heating systems, ensuring precise and uniform heat distribution across multiple layers.
This machine offers superior production capacity, thanks to its high-precision thermal regulation system that accelerates adhesive curing while maintaining consistent pressure distribution across the entire working surface. This capability enables premium-quality, high-efficiency production workflows.
The machine incorporates comprehensive safety features including emergency stop actuators, cable-operated shutdown systems, and over-travel automatic protection mechanisms to ensure operator safety and equipment integrity.

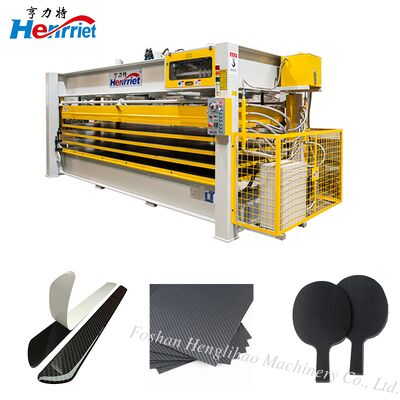

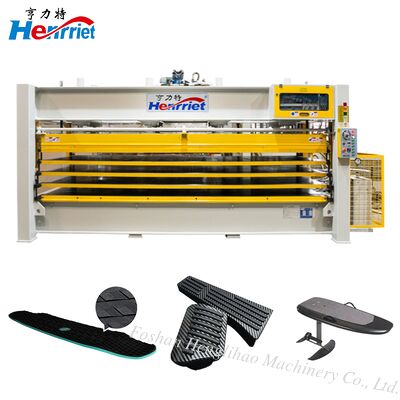

This four-layer synchronous carbon fiber laminating machine covers production scenarios for all categories of carbon fiber composite materials, including industrial structural boards, hydrofoil surfboards, and automotive parts.
Routine maintenance is straightforward with regular inspections of critical components, hydraulic oil monitoring, and systematic approaches to ensure sustained equipment reliability and consistent product quality.
| Specification | Value |
|---|---|
| Maximum pressure | 160 T |
| System pressure | 20 mpa |
| Work platen size | 4000*1500*50mm |
| Max. platen opening | 120mm * 4-layer |
| Maximum temperature | 100℃ |
| Working level | 4-layer |
| Oil cylinder specification | 110mm*80mm * 8pcs |
| Hydraulic pump power | 7.5kw |
| Hot oil pump power | 3kw |
| Heating pipe power | 54kw |
| Overall dimensions | 55000*2300*2800mm |
| Weight (about) | 20000 kg |
