Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width

Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width

Brand Name: Henrriet
MOQ: 1
Price: Online/offline communication
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001
Max Pressuer:
100T
Work Platen Size:
6500*1300mm
Oil Cylinder Specification:
1pcs*85mmX125mm Piston Cylinder
Motor Power:
5.5kw
Workd Effctively:
300mm
Overall Dimensions:
7500*2000*2500mm
Pressure Method:
Press Up And Down
Maximum Pressure:
25 T
Cold-pressed Board Size:
300mmX300mm
Plate Thickness:
40mm X 4 Pcs
Number Of Layers:
2 Layers
Opening Spacing:
0-100mm
Power:
5.75kw
Heating Method:
Electric Heating
Maximum Temperature:
180℃
Cooling Method:
Chiller
Gel Dripping Width:
200-1300mm (customizable)
Coating Speed:
1-12 Meters/minute (adjustable)
Gel Dripping Length:
300mm-4500mm (customizable)
Product Width:
200mm-1300mm (customizable)
Ratio Adjustment:
The Mixing Ratio Can Be Adjusted Between 2:1-5:1
Environmental Requirements:
Temperature 5-45 ℃, Humidity ≤ 80%
Effective Volume Of AB Tanks:
40L (automatic Feeding)
Glue Consumption Per Square Meter:
Adjustable From 200g To 450g
Conveyor Line:
Width 1300mm, Height 850mm ± 50mm, Length Customizable
Temperature Adjustment Range Of Material A Tank:
Adjustable From 20-30 ℃
Adhesive Viscosity:
4000-12000 CPS (customizable)
Control Method:
PLC Programming+touch Screen
Packaging Details:
Film with Foam
Product Description
Large Automatic Glue Spraying Machine Conveyor Line
Product Overview

This large-format panel adhesive spraying machine represents a premium coating solution engineered for composite processing requirements of oversized architectural decorative panels. The system integrates imported servo motor technology with high-precision metering pump dual-drive architecture, achieving accurate metered adhesive application with exceptional repeatability.

Key Features
  • Superior Production Capacity: Automated continuous operation with cantilevered structure and oscillating arm movement for uniform adhesive application
  • Integrated Safety and Protection: Comprehensive multi-loop safety system with electrical protection and fully enclosed moving components
  • Wide-Ranging Application Versatility: Suitable for cold storage insulation doors, carbon fiber doors, laboratory doors, and commercial hall doors
  • Easy Maintenance and Technical Support: Modular design with tool-free quick-disassembly structures for efficient maintenance
Technical Specifications
Specification Value
Gel Dripping Width 300-3000mm (customizable)
Coating Speed 1-12 meters/minute (adjustable)
Gel Dripping Length 500mm-8000mm (customizable)
Product Width 300mm-3000mm (customizable)
Ratio Adjustment 2:1-5:1 mixing ratio
Environmental Requirements Temperature 5-45℃, humidity ≤80%
Effective Volume of AB Tanks 40L (automatic feeding)
Glue Consumption per Square Meter 100g to 400g (adjustable)
Conveyor Line Ground clearance 850mm ±50mm
Temperature Adjustment Range 20-30℃ (Material A Tank)
Adhesive Viscosity 4000-12000CPS (customizable)
Power 5.75kw
Control Method PLC programming + touch screen
Company Advantages
  • Direct Manufacturing: Two in-house factories ensure better prices and faster delivery
  • Custom Engineering: 30+ senior engineers design machines around your specific needs
  • Global Certification: CE & ISO 9001 certified for international compliance
  • Proven Experience: 50+ countries, 1000+ projects with proven heavy-duty performance
Service Support
  • 1-year warranty
  • Film with foam packaging
  • 24-hour customer service hotline
  • 48-hour response time for repair needs
  • Free video training and process guidance manuals
  • Lifetime technical support and software upgrades
Product Gallery

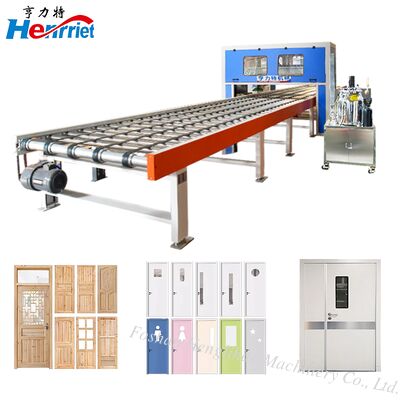

Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 0
Machine Overview

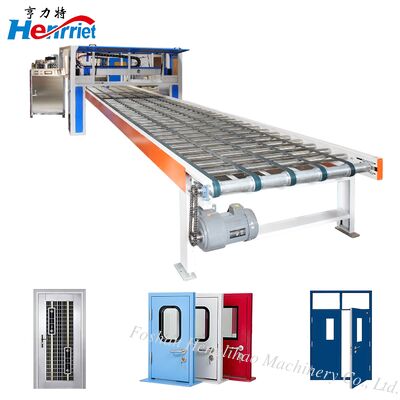

Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 1
Scope of Application

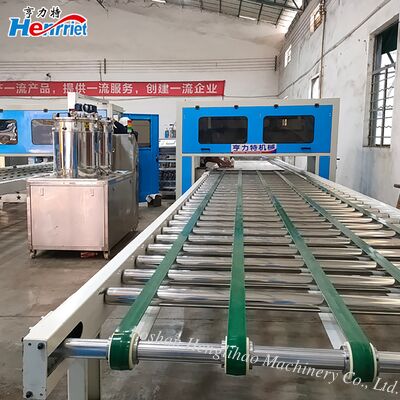

Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 2
Product Display
Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 3
Production Workshop
Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 4
Product Details
Corporate Information
Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 5
Manufacturing Facility
Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 6
Corporate Advantages
Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 7
Business Communication
Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 8
Manufacturing Process
Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 9
Exhibition & Exchange
Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 10
Packaging & Logistics
Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 11
Certificates & Honors
Large Automatic Glue Spraying Machine Conveyor Line with PLC Control for Composite Doors Featuring Adjustable 1-12m/min Coating Speed and Custom 200-1300mm Gel Width 12
Corporate Recognition
